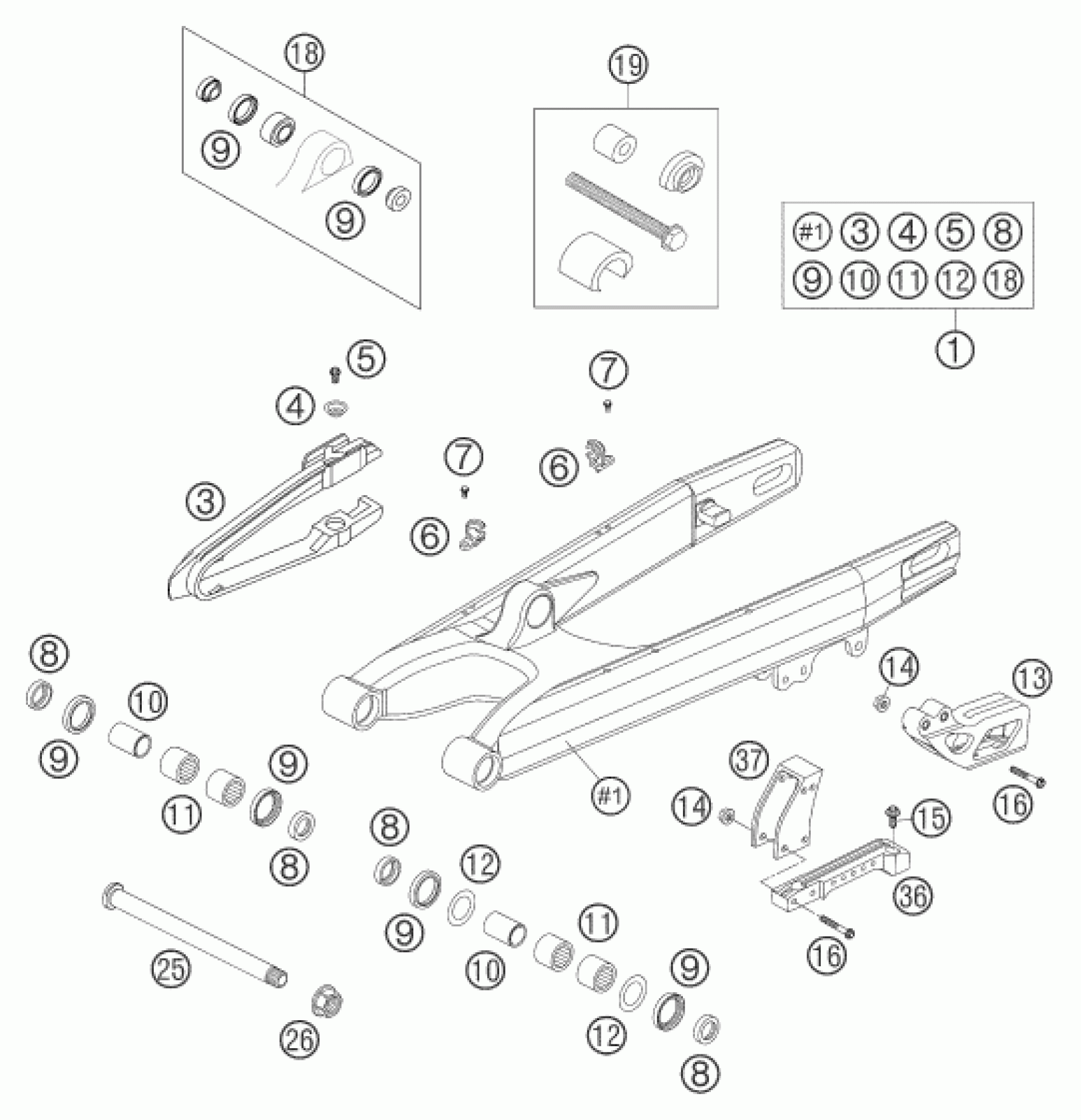

KTM 450 SMS <2004> SWING ARM Diagram

#

Description
Price

1

SWINGARM CPL.''N4'' 450SM 04

59204030044

Unavailable

3

CHAIN GUARD '97

50304066000

Unavailable

4

BUCKET

72210079000

Unavailable

5

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

6

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

Unavailable

7

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

8

Bucket f. shaft seal ring 03

54804034000

Unavailable

9

radial shaft seal 25x32x7

0760253270

Unavailable

10

Bearing sleeve 17x22x38.7 03

59404032000

Unavailable

11

NEEDLE BEARING HK2212V

59004031100

Unavailable

12

STOP DISK 22,2X31,7X1

54603036000

Unavailable

13

CHAIN GUIDE REAR '94

54607066100

Unavailable

14

Self locking nut M6 - 10

56509064100

Unavailable

15

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

16

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

18

PIVOT BEARING+BUSH. PDS '99

50304090044

Unavailable

19

TOOL BEARING MOUNTING PDS

50329000044

Unavailable

25

SWINGARM BOLT M16X1,5 03

54804037000

Unavailable

26

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

36

CHAIN GUARD BOTTOM SM 2004

59204066000

Unavailable

37

CHAIN GUARD TOP SM 2003

57304067000

Unavailable
