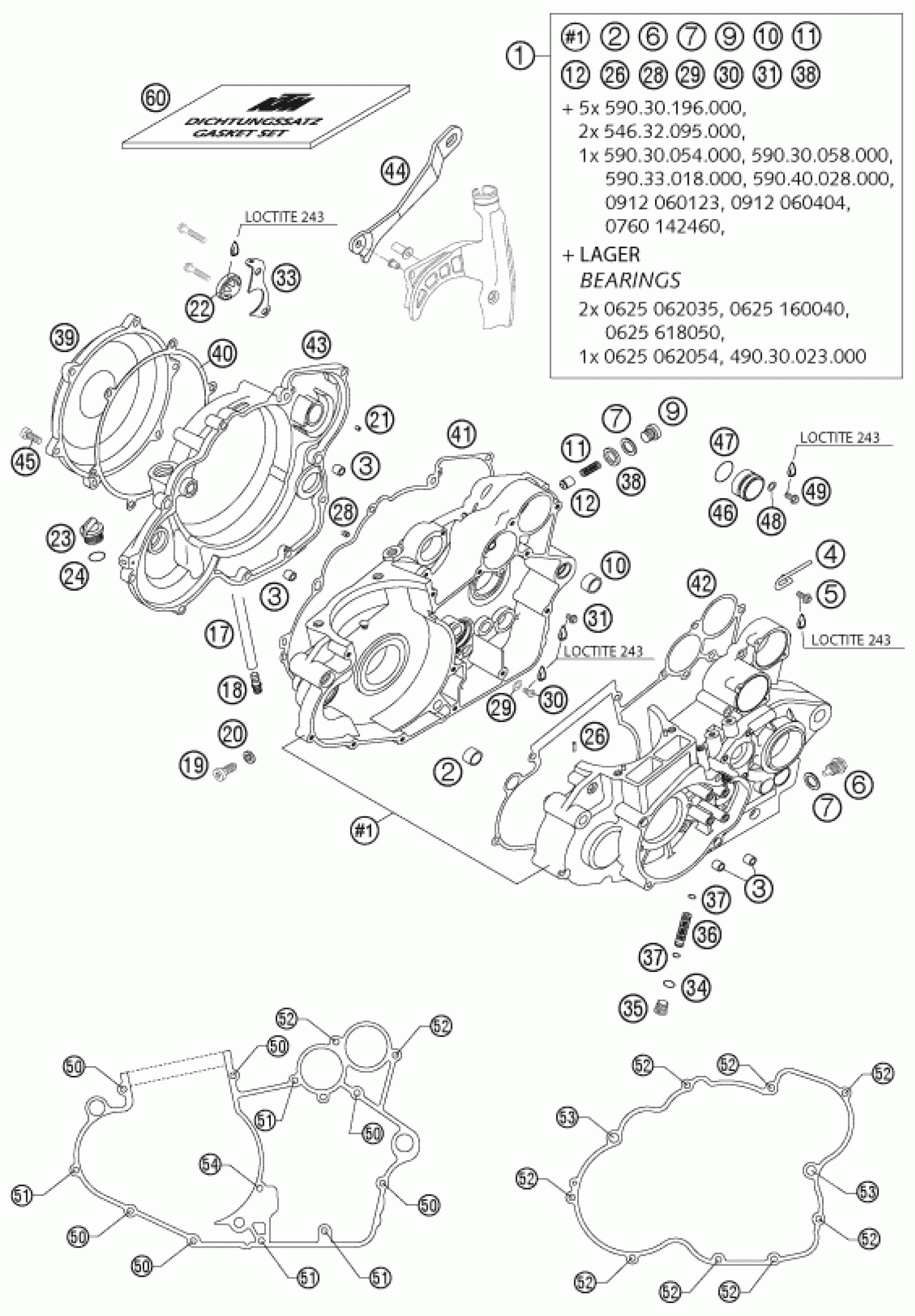

KTM 450 SMS <2004> ENGINE CASE Diagram

#

Description
Price

1

% ENGINE CASE CPL. W.TR.BEAR.

59030000144

Unavailable

2

DOWEL 17 X 13 X 12

51030026100

Unavailable

3

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

4

HANGER FOR VENT HOSE

59030090000

Unavailable

5

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

6

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

7

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

9

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

10

DOWEL 17 X 19 X 12

59030024000

Unavailable

11

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

12

VALVE PISTON D=10MM

58038028000

Unavailable

17

ENGINE BREATHER TUBE 00

59031050100

Unavailable

18

BLEEDER FLANGE M12X1,5 WS=13

59030022100

Unavailable

19

LOCATING SCREW M8 L=23

58030080000

Unavailable

20

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

21

NEEDLE ROLLER DIN5402 2,5X9,8

0402025980

Unavailable

22

OIL LEVEL GLASS G 1777 Y

59030019000

Unavailable

23

PLUG M 24X3

58030020000

Unavailable

24

O-RING 19,00X3,00 NBR

0770191015

Unavailable

26

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

29

WASHER DIN0125-A 5,3

0125050003

Unavailable

30

FLAT HEAD SCREW DIN7985-M 5X 8

0985050083

Unavailable

31

HH COLLAR SCREW M 6X8 WS=8

0015060083

Unavailable

33

RET.BRACKET F.BRAKE LEVER HUB

59030001090

Unavailable

34

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

35

PLUG M16X1,5

59038014000

Unavailable

36

OIL SCREEN 11,8X44,5MM

59038015000

Unavailable

37

O-RING 9X1,5 NBR

0770090015

Unavailable

38

SEAL RING DIN7603 12X18X3

0603121830

Unavailable

39

OUTER CLUTCH COVER 04

SXS04450235

Unavailable

40

GASKET FOR OUTER CLUTCH COVER

SXS04450036

Unavailable

41

GASKET FOR CLUTCH COVER

59030025100

Unavailable

42

ENG CASE GASKET NS92-24

59030039100

Unavailable

43

* INNER CLUTCH COVER CPL. 04

SXS04450244

Unavailable

44

CHAIN DAMPERSHEET RACING 20

59030047000

Unavailable

45

AH SCREW DIN6912-M 6X16

0984060163

Unavailable

46

CAP COVER

59040034000

Unavailable

47

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

48

WASHER DIN0125-A 6,4

0125060003

Unavailable

49

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

50

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

51

HH COLLAR SCREW M 6X60 WS=8

0015060603

Unavailable

52

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

53

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

54

HH COLLAR SCREW M 6X75 WS=8

0015060753

Unavailable

60

GASKET SET CPL. RACING 2000

59030099000

Unavailable

28

JET 100 BING(44-031/180) M4

59030058000

Unavailable
