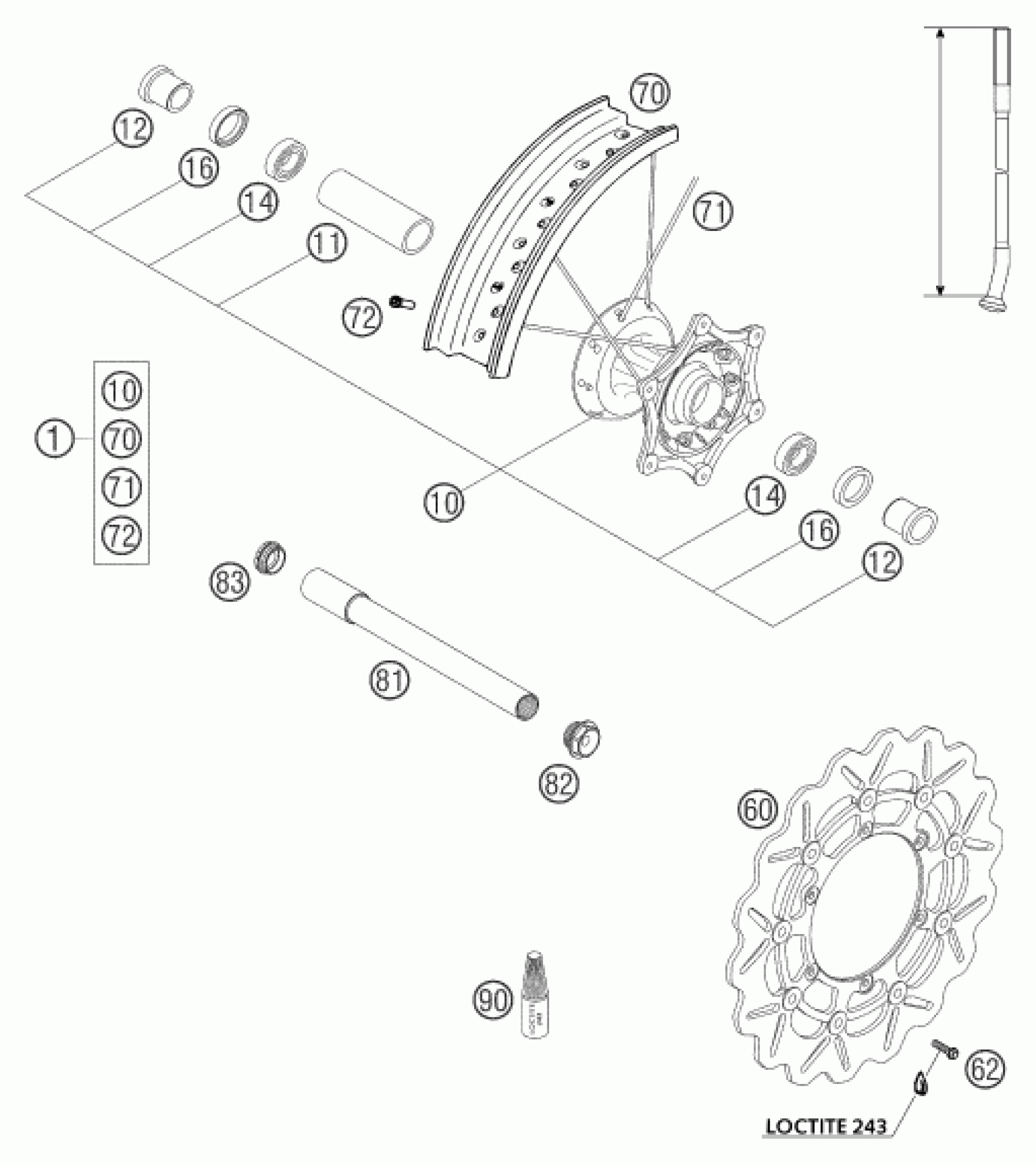

KTM 450 SMR 2004 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 3,5X17'' 26MM

58409001644

Unavailable

10

FRONT HUB CPL. SX SILVER 03

5480901004491

Unavailable

11

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

12

SPACER BUSHING F. FR. WHEEL

54809012000

Unavailable

14

Grooved ball bearing 6906

0625069068

Unavailable

16

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

60

% BRAKE DISC FRONT D=310MM 04

59409060000

Unavailable

62

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

70

FRONT RIM 3,5X17''

58409070000

Unavailable

71

SPOKE M4,5X175-15G 17'' DDE

50309071175

Unavailable

72

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

Unavailable

81

WH SPIN.FR. D=26 M24X1,5 03

54809081000

Unavailable

82

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

83

PLUG BUSHING WS=27 03

54809081050

Unavailable

90

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
