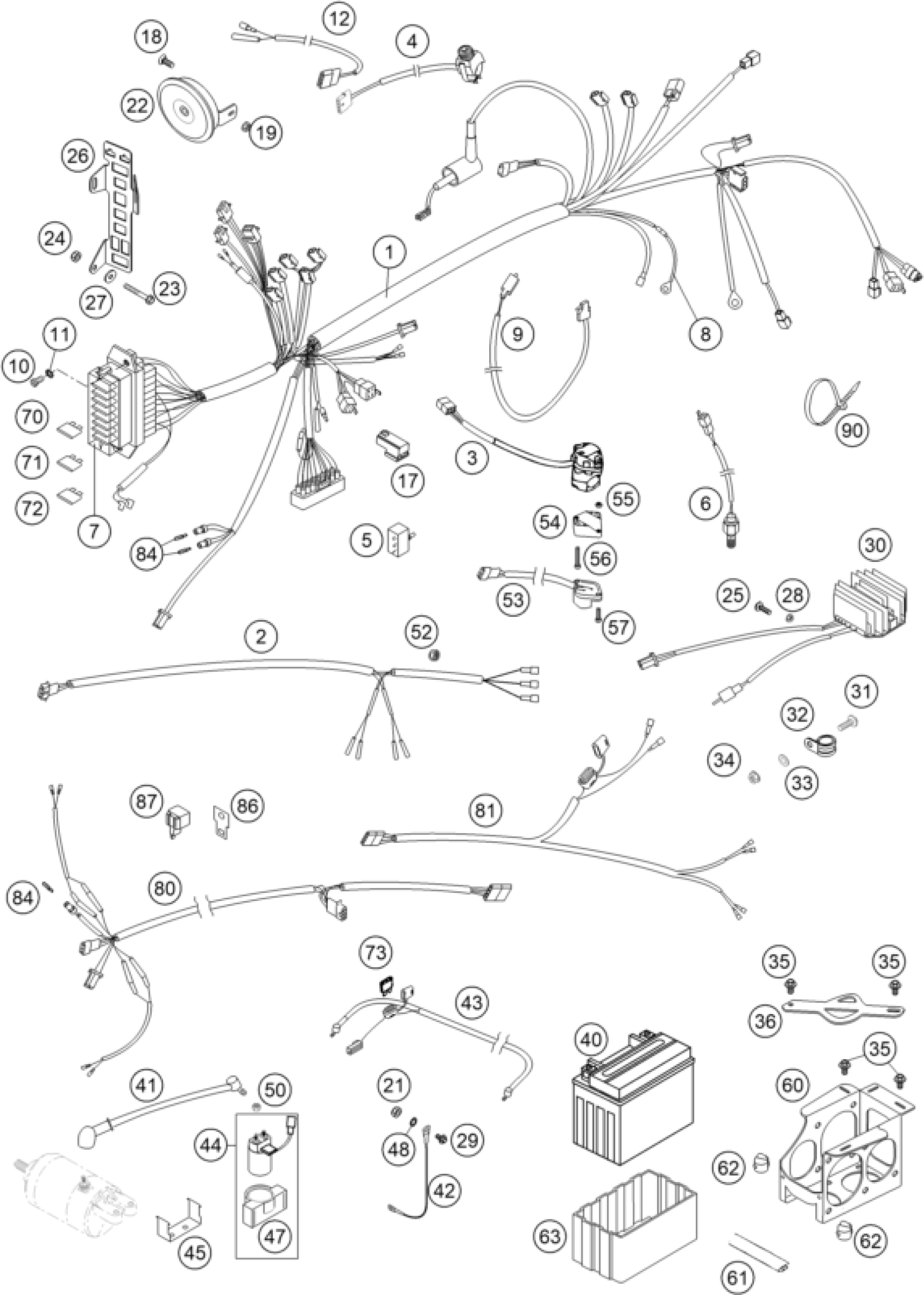

KTM 450 RALLYE FACTORY REPL. 2005 WIRING HARNESS Diagram

#

Description
Price

1

MAIN WIRING HARNESS RALLYE 03

58511075500

Unavailable

2

WIRING HARNESS REAR RALLYE 03

58511076100

Unavailable

3

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

Unavailable

4

Kill switch

50311089200

Unavailable

5

SWITCH ON/OFF RALLYE 03

58511069100

Unavailable

6

BRAKE LIGHT SWITCH LONG

58511051100

Unavailable

7

FUSE-BOX COVER

58511075510

Unavailable

8

CABLE F. TEMP. SWITCH

58511080000

Unavailable

9

BRAKE LIGHT SWITCH FRONT 2002

50311050100

Unavailable

10

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable

11

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

12

STARTER BUTTON ADAPTER CABLE

58511074050

Unavailable

17

STARTER RELAY '96

58411057000

Unavailable

18

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

19

Self locking nut M6 - 10

56509064100

Unavailable

21

Self locking nut DIN 985 M5

0985050003

Unavailable

22

DC HORN 12V K80/L LEB

50311060000

Unavailable

23

HH SCREW DIN931 M5X45

0931050453

Unavailable

24

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

25

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

26

BRACKET SOCKETS RALLY 2001

58511083100

Unavailable

27

washer DIN 9021 A - 5.3

0021050003

Unavailable

28

Self locking nut M6 - 10

56509064100

Unavailable

29

HH COLLAR SCREW M 5X16 WS=8

0015050163

Unavailable

30

VOLT.REGULATOR-RECTIFIER 12V

58411034100

Unavailable

31

HH COLLAR SCREW M 5X25 WS=8

0015050253

Unavailable

32

CLAMP RSGU 15/12

49007439000

Unavailable

33

WASHER DIN0125-A 5,3

0125050003

Unavailable

34

Self locking nut DIN 985 M5

0985050003

Unavailable

35

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

36

BRACKET F. BATTERY BOX 01

58511054250

Unavailable

40

BATTERY 12V 8AH '96

58411053000

Unavailable

41

STARTERCABLE 250MM

58411059200

Unavailable

42

GROUND CABLE 275MM

58411097300

Unavailable

43

BATTERY CABLE 600MM RALLYE 01

58511059000

Unavailable

44

STARTER RELAY WITH HOLD.RUBBER

58411058000

Unavailable

45

BRACKET FOR STARTRELAIS '99

58511058050

Unavailable

47

HOLD. RUBBER FOR STARTRELAY

58411058050

Unavailable

48

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

50

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

52

rubber grommet D=8mm open

31008060000

Unavailable

53

FLASHER SWITCH CEV '98

50311029000

Unavailable

54

ADAPTER FOR FLASHER SWITCH '98

13011070060

Unavailable

55

HEXAGON NUT DIN0934-M 4

0934040003

Unavailable

56

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

Unavailable

57

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

Unavailable

60

BATTERY BOX RALLYE 01

58511054200

Unavailable

61

BORDER PROTEC. ADVENTURE 2002

58214070150

Unavailable

62

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

63

BATTERY COVER 96

58411053050

Unavailable

70

FUSE 5 A

58011109005

Unavailable

71

Plug-in fuse, big 10A

58011109110

Unavailable

72

FUSE 15 A

58011109015

Unavailable

73

Plug-in fuse, big 20A

58011109120

Unavailable

80

FLAS.WIRINGHARN. FRONT 125-380

50311080100

Unavailable

81

FLAS.WIRINGHARN. REAR 125-380

50311081000

Unavailable

84

BULB 12V 1,2W (W2X4,6D)

49111425000

Unavailable

86

BRACKET FOR FLASHER RELAY

58211031100

Unavailable

87

FLASHER UNIT 97

44611207200

Unavailable

90

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

90

Cable tie 200/4.6mm black

44011076200

Unavailable

90

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable
