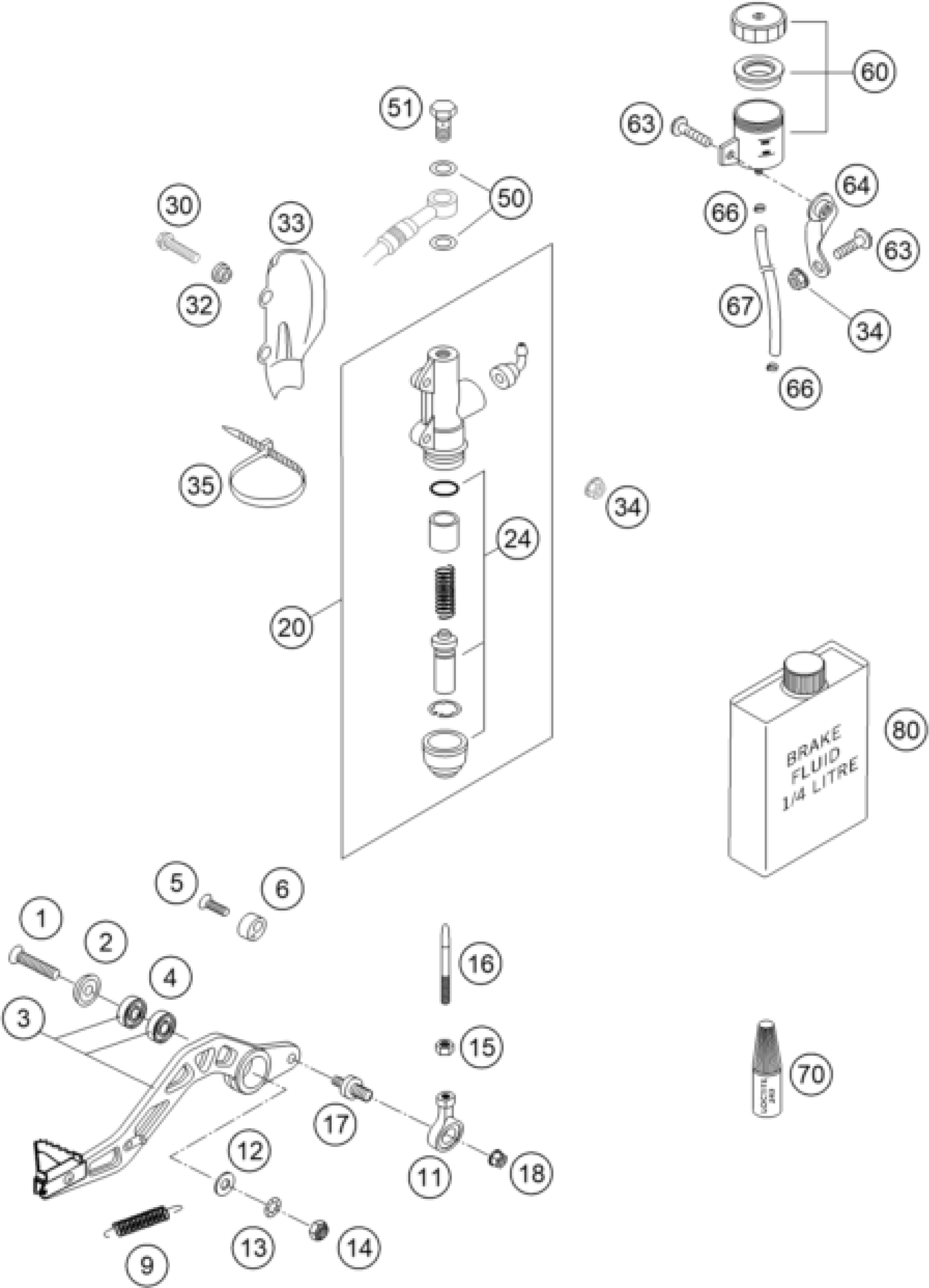

KTM 450 RALLYE FACTORY REPL. 2005 REAR BRAKE CONTROL Diagram

#

Description
Price

1

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

Unavailable

2

SPECIAL WASHER ALU 8 X 24 MM

58303061000

Unavailable

3

FOOT BRAKE LEVER KPL. LC4 2001

58403070044

Unavailable

4

Grooved ball bearing 608 2RS C

0625006087

Unavailable

5

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

6

BRAKE LEVER STOP '93

58303063000

Unavailable

9

RETURN SPRING

13003062000

Unavailable

11

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

Unavailable

12

washer DIN 125 A -8.4

0125080003

Unavailable

13

LOCK WASHER 8MM

36003014000

Unavailable

14

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

15

Hex. nut DIN 934 M6

0934060003

Unavailable

16

PUSH ROD STEEL 100MM M6 01

58503068000

Unavailable

17

BRAKE LEVER AXLE RALLY 2001

58503060050

Unavailable

18

Self locking nut M8 10.9

54310086200

Unavailable

20

MAIN BRAKE CYLINDER '89

54513101044

Unavailable

24

REPAIR KIT PISTON 13MM

54513150000

Unavailable

30

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

32

COLLAR BUSHING

50213161000

Unavailable

33

BRAKE CYL. PROTECTOR RALLYE 04

58513038000

Unavailable

34

Self locking nut M6 - 10

56509064100

Unavailable

35

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

50

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

51

HOLLOW SCREW M10X1X19

50213025000

Unavailable

60

BRAKE FLUID RESERVOIR '89

54513030044

Unavailable

63

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

64

BRACKET BRAKE FLUID RESERVOIR

59013068000

Unavailable

66

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

67

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

70

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

80

BRAKE FLUID DOT 4.0

306054

Unavailable
