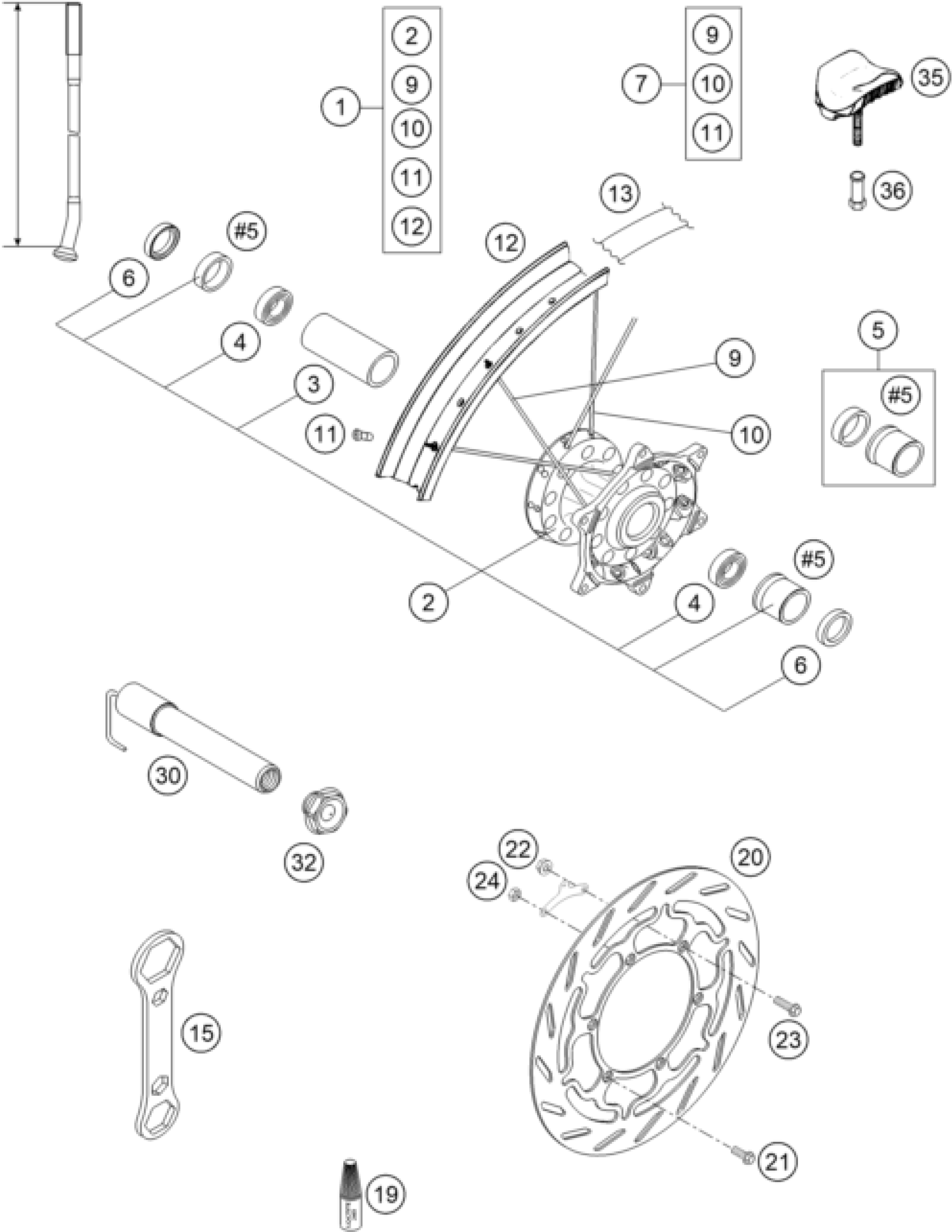

KTM 450 RALLYE FACTORY REPL. 2005 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. RALLY 2001

58509010000

Unavailable

2

FRONT HUB MILLED RALLY 01

58509009000

Unavailable

3

BEAR.SPACER BUSHING

58509011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

SPACER BUSHINGS SET FR.WHEEL02

58509013044

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

SPOKES CPL. RALLY 2001

58509069000

Unavailable

9

SPOKE L/S FR. WHEEL RALLYE 01

58509071000

Unavailable

10

SPOKE R/S FR. WHEEL RALLYE 01

58509171000

Unavailable

11

SPOKE NIPPLE FOR RALLY 2001

58509072000

Unavailable

12

FRONT RIM 1,60X21'' 36H RALLY0

58509070100

Unavailable

13

Tube protector 21"

50309073000

Unavailable

15

KEY F. FRONT AXLE SCREW

58509083000

Unavailable

19

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

20

BRAKE DISK FRONT D=300MM '96

58309060100

Unavailable

21

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

22

Self locking nut M6 - 10

56509064100

Unavailable

23

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

24

HEXAGON NUT DIN0439-M 6 LOW

0439060003

Unavailable

30

FRONT AXLE D=30MM 04

58509081100

Unavailable

32

COLLAR SCREW FRONT AXLE 03

58509082000

Unavailable

35

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

36

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable
