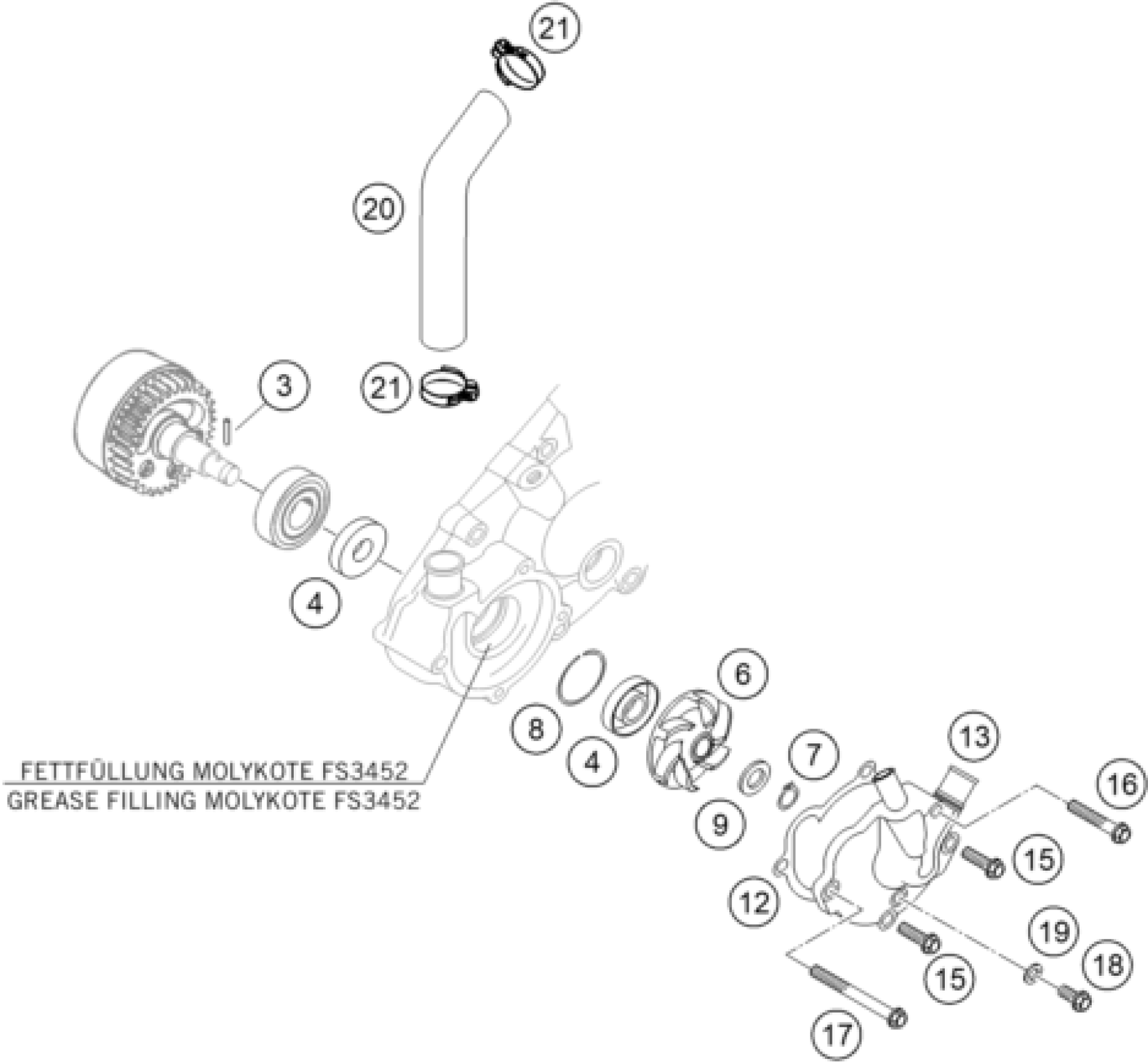

KTM 450 RALLYE FACTORY REPL. 2004 WATER PUMP Diagram

#

Description
Price

3

Needle roll.DIN5402 NRB 3X17.8

0402031780

Unavailable

4

SHAFT SEAL RING 12X30X7 2001

0760123070

Unavailable

6

WATER PUMP WHEEL 04

58535055100

Unavailable

7

CIRCLIP DIN0471-10X1

0471100011

Unavailable

8

CIRCLIP DIN0472-30X1,2

0472030012

Unavailable

9

WASHER 10X16X1 A2 (NIRO) 04

58535057000

Unavailable

12

WATER PUMP COVER GASKET 2001

58535053000

Unavailable

13

WATER PUMP COVER CPL. SP 04

58535052144

Unavailable

15

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

16

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

17

HH COLLAR SCREW M 6X60 WS=8

0015060603

Unavailable

18

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

19

CU-SEAL RING 6 X 10 X 2

58036065100

Unavailable

20

PREFORMED H. 18X25 WAPU-CYL.01

58535020001

Unavailable

21

HOSE CLAMP GEMI 18-29

10001020000

Unavailable
