VALVE DRIVE

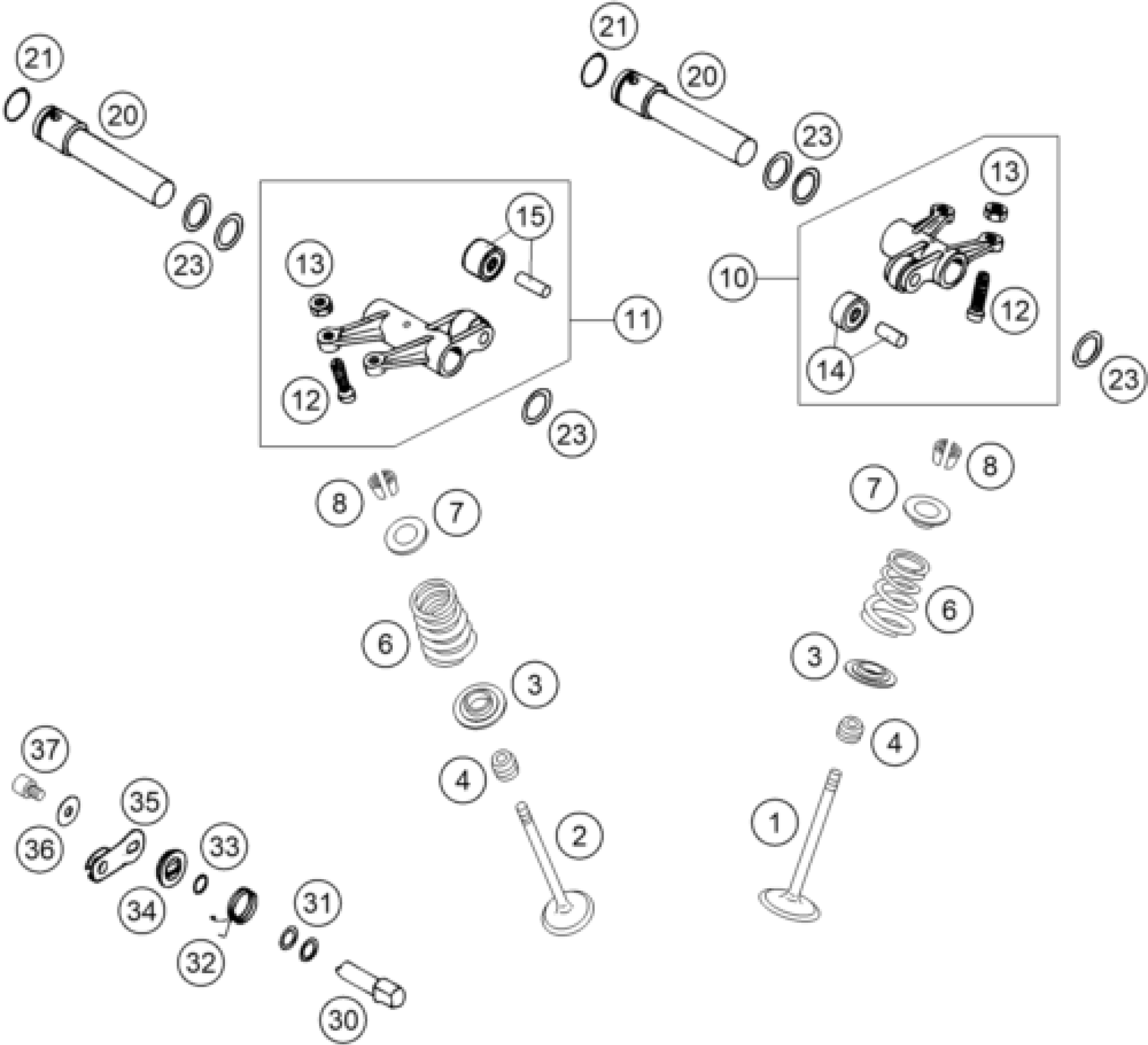

KTM 450 RALLYE FACTORY REPL. 2004 VALVE DRIVE Diagram
#
Description
Price
1
INTAKE VALVE D=36 MM
58036030000
Unavailable
2
EXHAUST VALVE 30 MM
58036031000
Unavailable
3
VALVE SPRING HOLDER 05
58836036000
Unavailable
4
VALVE-STEAM SEALING
58036028000
Unavailable
6
VALVE SPRING "CONICAL" 05
58836028000
Unavailable
7
VALVE-SPRING RETAINER "AL" 05
58836032000
Unavailable
8
VALVE COLLET MK7
58036033000
Unavailable
10
ROCKER ARM INTAKE CPL. 400 LC4
58036060844
Unavailable
11
ROCKER ARM EXHAUST CPL. 400LC4
58336061144
Unavailable
12
ADJUSTMENT SCREW CPL. M 7X0,75
58036062600
Unavailable
13
HEXAGON NUT DIN0934-M 7X0,75
0934070756
Unavailable
14
ROCKER ARM ROLLER CPL. INTAKE
58036061090
Unavailable
15
ROCKER ARM ROLLER CPL. EXHAUST
58336061090
Unavailable
20
ROCKER ARM SHAFT L=96MM 7,2MM
58536056100
Unavailable
21
O-RING 15,08 X 2,62 NBR 70
58036095000
Unavailable
23
THRUST WASH.DIN0988-16X22X0,20
0988162202
Unavailable
23
THRUST WASH. DIN0988-16X22X0,5
0988162205
Unavailable
23
THRUST WASHER DIN0988-16X22X1
0988162210
Unavailable
30
DECOMPRESSION SHAFT
58036050100
Unavailable
31
WASHER 10X14X0,5 STEEL
54334015000
Unavailable
31
WASHER 10X14X0,3 STEEL
54334015100
Unavailable
31
WASHER 10X14X0,15 STEEL
54334015200
Unavailable
32
DECOMP.LEVER SPRING
58036059200
Unavailable
33
O-RING 10,00X2,20 SILICONE
0770100221
Unavailable
34
COVER DISK
58036048000
Unavailable
35
DECOMPRESSION LEVER
58036049500
Unavailable
36
Washer DIN9021-A 6.4
0021060003
Unavailable
37
AH SCREW DIN0912-M 6X10
0912060103
Unavailable
