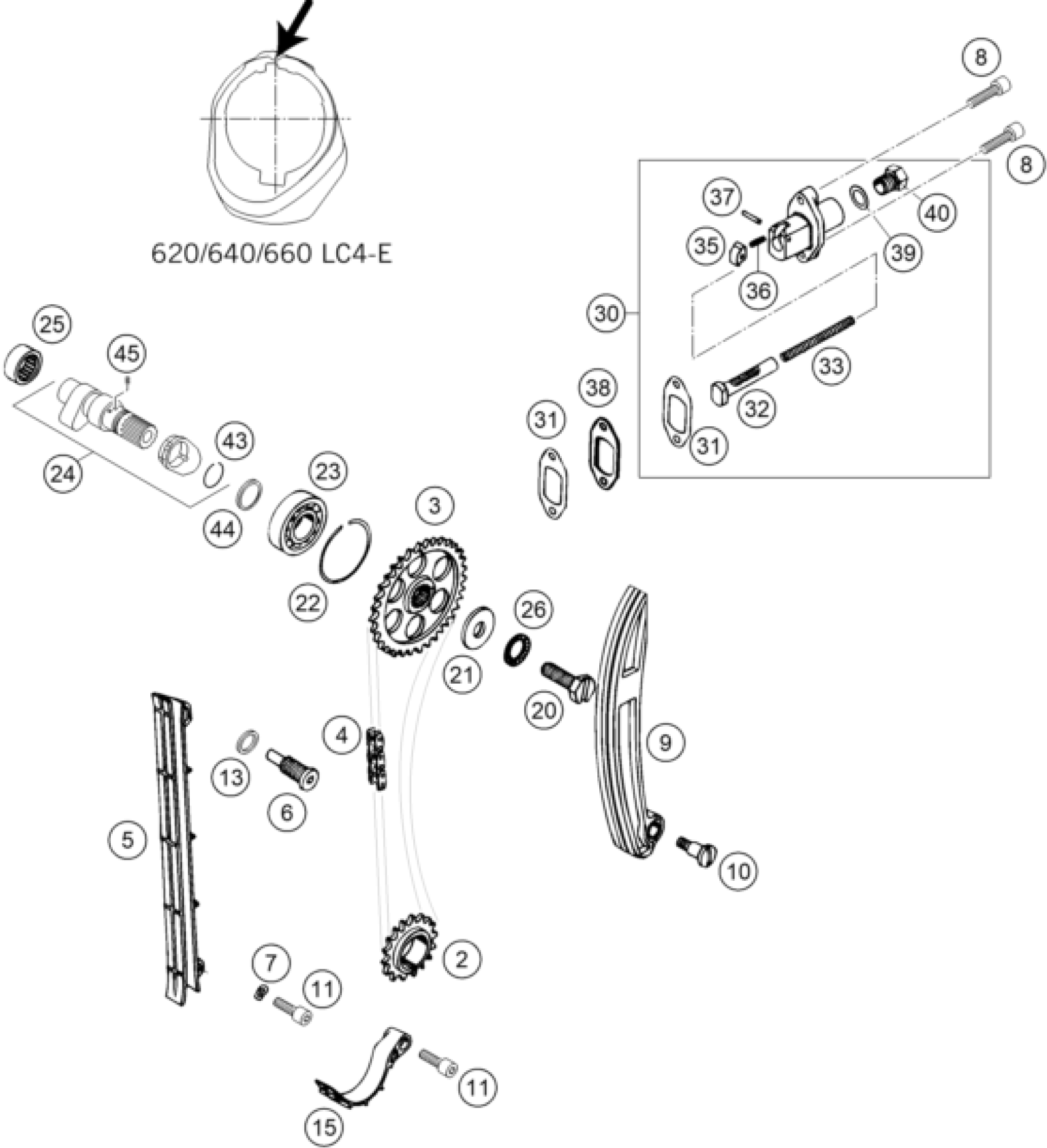

KTM 450 RALLYE FACTORY REPL. 2004 TIMING DRIVE Diagram

#

Description
Price

2

TIMING GEAR 17-T

58036014000

Unavailable

3

CAMSHAFT GEAR 450 RAL. 05

58836011001

Unavailable

4

TIMING CHAIN C107C / 96 LINKS

57536013000

Unavailable

5

TIMING CHAIN GUARD 05

58836001000

Unavailable

6

CHAIN GUIDE SCREW

58036009000

Unavailable

7

spring washer DIN 137 B - 6

0137060003

Unavailable

8

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

9

TIMING CHAIN TENSIONER

57536002000

Unavailable

10

FLAT HEAD SCR. M 8X12

0923080120

Unavailable

11

AH SCREW DIN0912-M 6X20 SS

0912060208

Unavailable

13

CU-SEAL RING 12 X 16 X 2

58038022100

Unavailable

15

SECURING GUIDE

58336018000

Unavailable

20

DRIVING SCREW M10X25

58336112000

Unavailable

21

STEEL WASHER 10 X 28 X 3

58036012000

Unavailable

22

CIRCLIP SB 42

58036096000

Unavailable

23

GROOVED BALL BEARING TMB004

0625060040

Unavailable

24

CAMSHAFT CPL. 450 RAL. 05

58836010044

Unavailable

25

NEEDLE BEARING BK 2012

58036097000

Unavailable

26

LOCKING WASHER 10MM

36003014200

Unavailable

30

AUTOM.TENSIONER CPL. '88

58036003144

Unavailable

31

TENSIONER GASKET 1,5 MM

58036005100

Unavailable

32

PRESSURE BOLT

58036004100

Unavailable

33

PRESSURE SPRING 0,9MM

58036006100

Unavailable

35

RATCHETING PAWL

58036007100

Unavailable

36

PRES.SPRING F.RATCHETING PAWL

58036007050

Unavailable

37

Needle roll.DIN5402 NRB 3X17.8

0402031780

Unavailable

38

FLANGEPL. F. AUTOM. TENSIONER

58536003050

Unavailable

39

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

40

PLUG M12X1,5

58036008100

Unavailable

43

CIRCLIP WS20

0417200120

Unavailable

44

STEPPED RING

58336015000

Unavailable

45

SPRING FOR AUTO-DECOMPR. '95

58336016052

Unavailable
