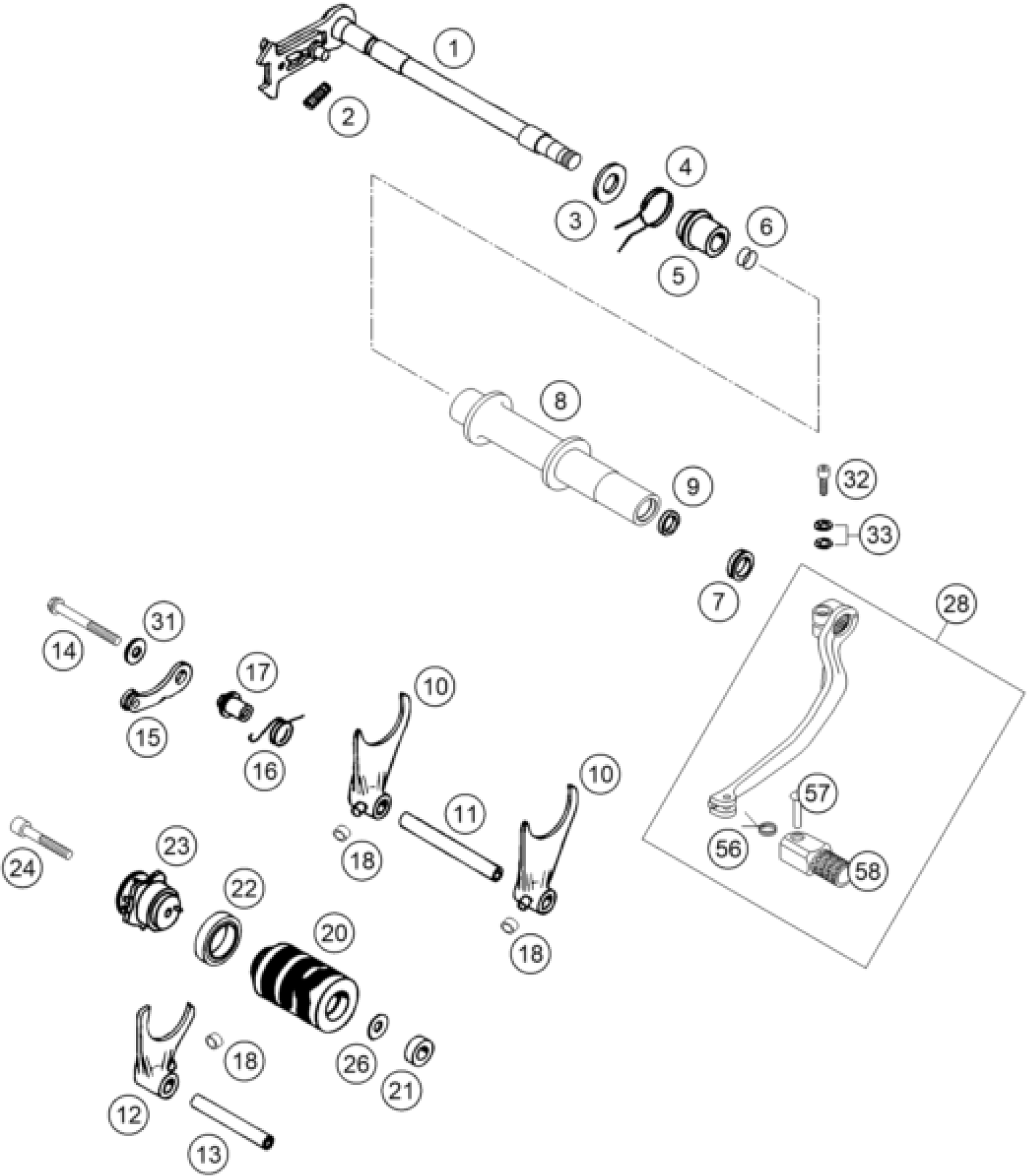

KTM 450 RALLYE FACTORY REPL. 2004 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT SHAFT CPL. 6 GEARS 05

58834005000

Unavailable

2

TENSIONING SPRING 0,8MM

56534013100

Unavailable

3

STEEL WASHER 14 X 28 X 2

58034010000

Unavailable

4

RETURN SPRING

58034014000

Unavailable

5

SPRING SLEEVE 05

58834020000

Unavailable

6

O-RING 12,50X2,00 NBR 70

0770125020

Unavailable

7

V-SEAL RING V-14-A

58033027000

Unavailable

8

SPACER SHAFT 2001

58534006000

Unavailable

9

SEAL RING DH/GR 12X16X3

54632090000

Unavailable

10

SHIFT FORK COUNTERSHAFT 05

58834002000

Unavailable

11

SHIFT RAIL COUNTERSHAFT 6G. 05

58834004000

Unavailable

12

SHIFT FORK MAIN SHAFT 05

58834001000

Unavailable

13

SHIFT RAIL MAIN SHAFT 6G. 05

58834003000

Unavailable

14

HH COLLAR SCREW M 6X65 WS=8

0015060653

Unavailable

15

LOCKING LEVER CPL. '94

58334024044

Unavailable

16

SPRING

58034023500

Unavailable

17

SPRING SLEEVE

58334017000

Unavailable

18

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

20

SHIFT ROLLER LC4 6 GEARS 05

58834012000

Unavailable

21

Grooved ball bearing 608 2RS C

0625006087

Unavailable

22

BALL BEARING 61805 C3

0625618050

Unavailable

23

SHIFT LOCATING DRUM LC4 6G. 05

58834015000

Unavailable

24

AH SCREW DIN0912-M 6X40 A2

0912060404

Unavailable

26

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

Unavailable

28

SHIFT LEVER CPL. 05

58534031144

Unavailable

31

WASHER 6,2X18X2

50232050000

Unavailable

32

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

33

Pair of washers M6 NORDLOCK

50233041000

Unavailable

56

SHIFTING LEVER SPRING 250

54634032100

Unavailable

57

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

58

STEP PLATE FOR SHIFT LEVER 250

54634131000

Unavailable
