LUBRICATING SYSTEM

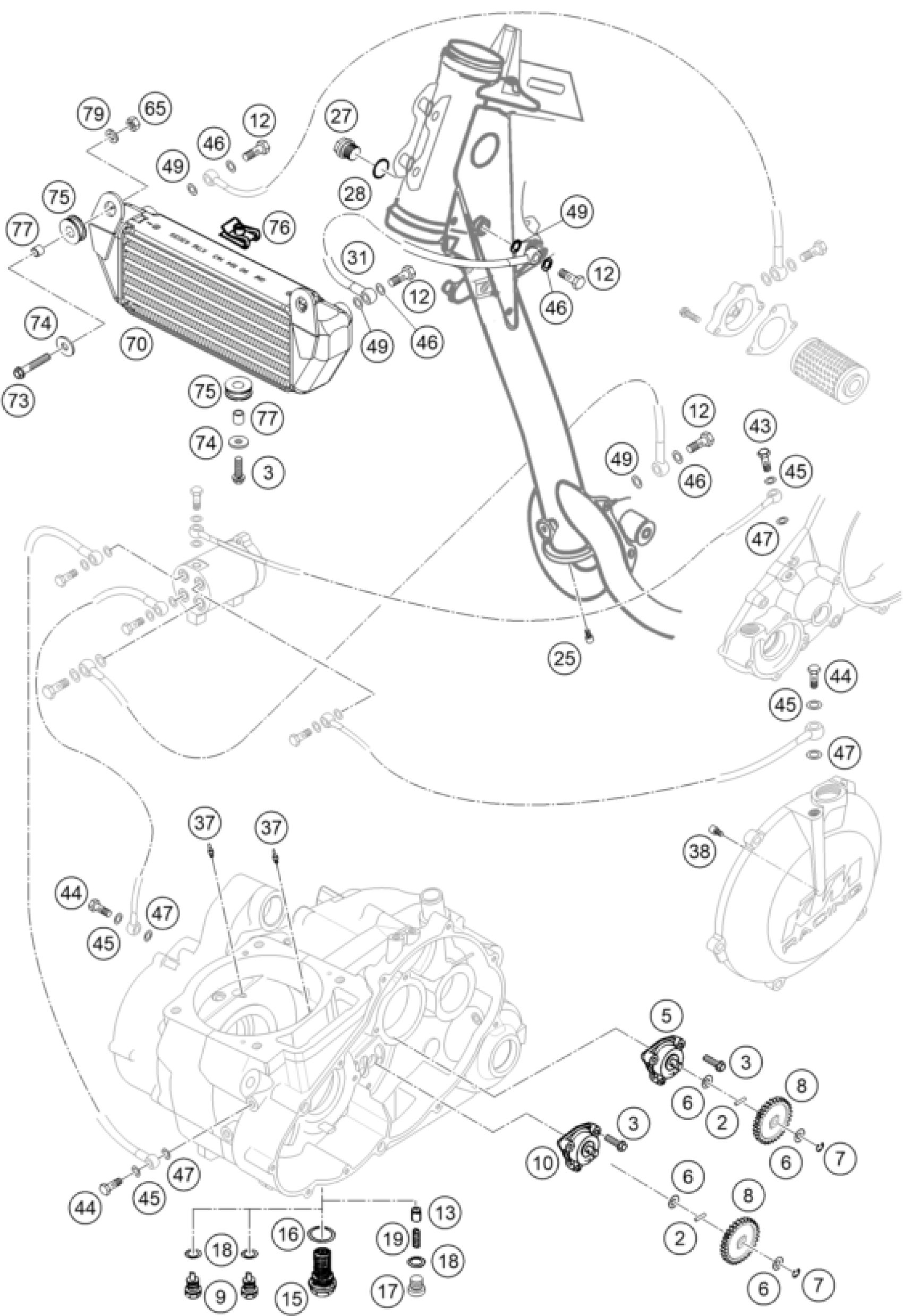

KTM 450 RALLYE FACTORY REPL. 2004 LUBRICATING SYSTEM Diagram
#
2
NEEDLEROL.DIN5402 NRA 2,5X19,8
0402251980
Unavailable
3
HH COLLAR SCREW M 6X20 WS=8
0015060203
Unavailable
5
OIL PUMP MIKUNI G-73-10
58038007700
Unavailable
6
STOP DISK 8,1 X 15 X 0,5
58038007755
Unavailable
7
TAB WASHER DIN6799-RS 6,0
0799060000
Unavailable
8
OIL PUMP GEAR 26-T
58438001000
Unavailable
9
OILDRAIN PLUG W.MAG. M 12X1,5
58030021000
Unavailable
10
OIL PUMP MIKUNI G-185 660 99
58538007000
Unavailable
12
HOLLOW SCREW M10 X 1
54313025000
Unavailable
13
VALVE PISTON D=10MM
58038028000
Unavailable
15
OIL DRAIN PLUG M22X1,5
58038019100
Unavailable
16
CU-SEAL RING DIN7603-22X27X2
58038017100
Unavailable
17
threaded plug DIN 908 M12x1.5
0908120153
Unavailable
18
CU-seal ring DIN7603-12X18X1.5
58038022000
Unavailable
19
OIL PRES.SPRING 5 BAR RED 2001
58538023000
Unavailable
25
AH SCREW DIN7984-M 6X10
0984060103
Unavailable
27
PLUG DIN0910-M16X1,5
0910160153
Unavailable
28
CU-SEAL RING 16X22X2
0603162220
Unavailable
31
OIL L. OIL COOLER-FRAME 295MM
58538053044
Unavailable
37
OIL JET 70 M6X0,75 WS8 03
60030064070
Unavailable
38
STARTING JET
56331145075
Unavailable
43
Jet screw M8x1
59038029000
Unavailable
44
BANJO BOLT M8 X 1 DIN7643
58038030000
Unavailable
45
COPPER Gask.DIN7603- 8.2X13X1
0603082131
Unavailable
46
sealing ring DIN 7603 10x14x1
0603100141
Unavailable
47
COPPER GASKET 8,2X12X2 MM 2001
0603821220
Unavailable
49
COPPER GASKET 10,2X14X2 MM 01
0603101420
Unavailable
65
Self lock. nut DIN985-M6-A2
0985060003
Unavailable
70
OIL COOLER RALLYE 2001
58538052000
Unavailable
73
HH COLLAR SCREW M 6X35 WS=8
0015060353
Unavailable
74
Washer DIN9021-A 6.4
0021060003
Unavailable
75
rubber grommet D=8mm open
31008060000
Unavailable
76
SNAP-NUT HOLDER M6 KP142
50235033300
Unavailable
77
SPACER BUSHING 6X8X8,5
54431032050
Unavailable
79
WASHER DIN0125-A 6,4
0125060003
Unavailable
