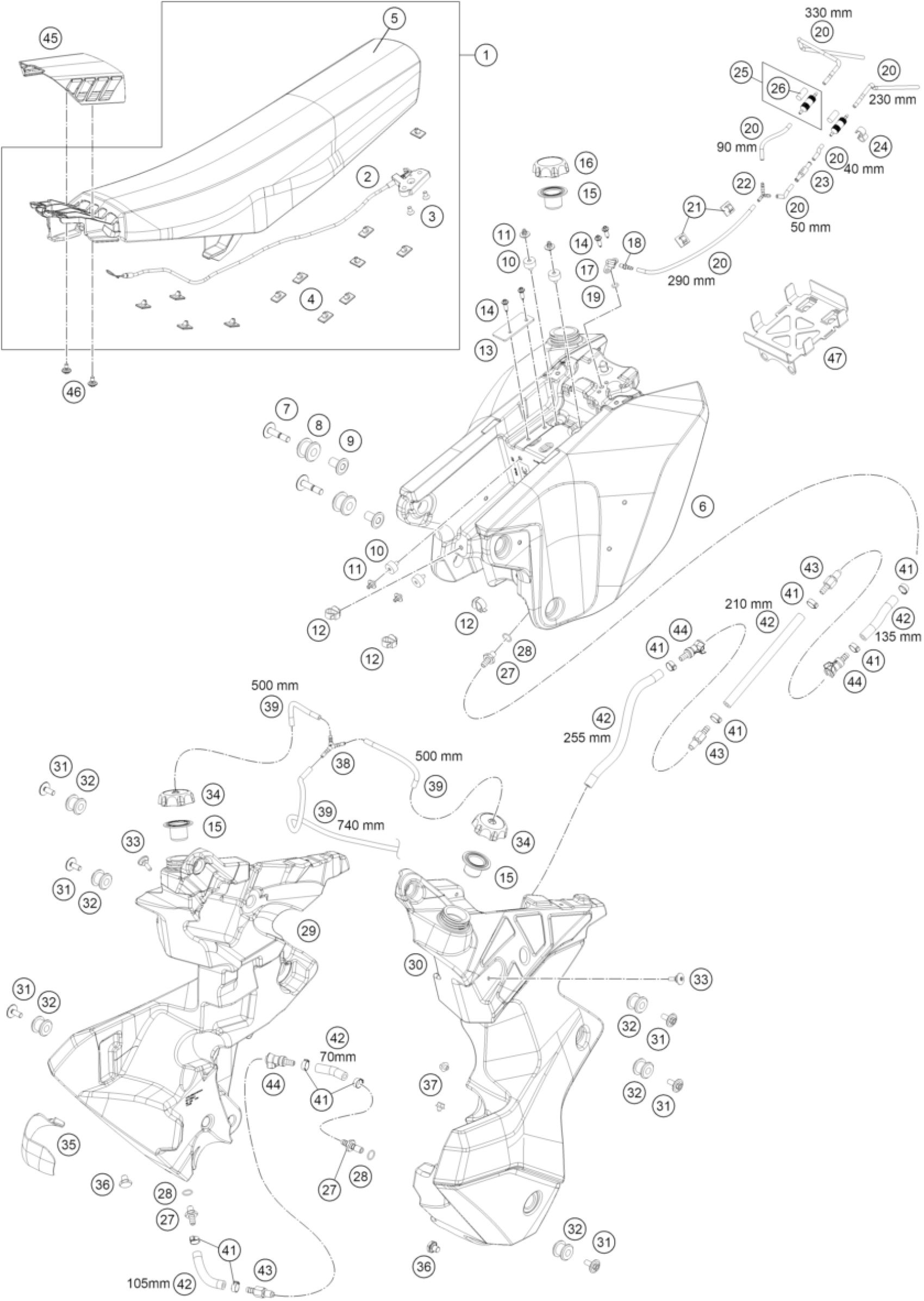

KTM 450 RALLY REPLICA `Sanders Edition` 2026 TANK, SEAT Diagram

#

Description
Price

1

Seat cmpl.

A58007040133

Unavailable

2

Seat lock cmpl.

A58007050033

Unavailable

3

FLAT HEAD SCREW DIN7991-M 6X12

0991060126

Unavailable

4

Isolation pad

77307040041

Unavailable

5

Seat cover

A58007040150

Unavailable

6

Rear tank

A5800701300028

Unavailable

7

Special screw M10

00001410045U0

Unavailable

8

Rubber grommet 24.8 x 25.5

0650002502600

Unavailable

9

Collar bushing

0800001002700

Unavailable

10

Silent block 20x10 M6x10

63503090017

Unavailable

11

Quick screw plug

A58012093050

Unavailable

12

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

13

Cable holder

A58011094000

Unavailable

14

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

15

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

16

FILLER CAP TANK RALLY

76307108000

Unavailable

17

Housing, breather valve

A58007030000

Unavailable

18

VACUUM CONECTION M6/3MM '97

58336020190

Unavailable

19

O-RING 8,00X2,0 VITON

0770080201

Unavailable

20

Hose 6x3 mm

76707016001

Unavailable

21

SOCKET

69015019020

Unavailable

22

Y-hose connection YS4

0610000400300

Unavailable

23

VALVE FOR TANK BREATHING 02

57307019000

Unavailable

24

DISTANCE HOLDER 10/10 BLACK

60038039000

Unavailable

25

Filter tank ventilation cpl.

76707031033

Unavailable

26

Filter element DM12x20

76707031010

Unavailable

27

Connection component, fuel con

A58007090030

Unavailable

28

O-ring d14x1.8

0770001400200

Unavailable

29

Front tank right

A58007037000C1

Unavailable

30

Front tank left

A58007036000C1

Unavailable

31

Special screw M8

00001408020U0

Unavailable

32

Rubber grommet 29 x 24

0650002902400

Unavailable

33

Seat holder screw

79107011000

Unavailable

34

TANK CAP

76407108000

Unavailable

35

Tank heat protection

A58007095000

Unavailable

36

Screw plug M10

A58007090040

Unavailable

37

Plug-in base

76711094010

Unavailable

38

Y-hose connection YS5

0610000500400

Unavailable

39

HOSE EPA D=6/10 PER METER

78015019001

Unavailable

41

Variable one-ear clamp 15.7mm

00050157706

Unavailable

42

Fuel hose 7.5x3.5 per m.

60007316001

Unavailable

43

Plug CPC black 05

5850701030030

Unavailable

44

Clutch CPC PLCD17005, black

5850701050030

Unavailable

45

Air intake

A58008011000

Unavailable

46

special screw M6x12x3

83008000012

Unavailable

47

SAT telephone bracket

A58012093100

Unavailable
