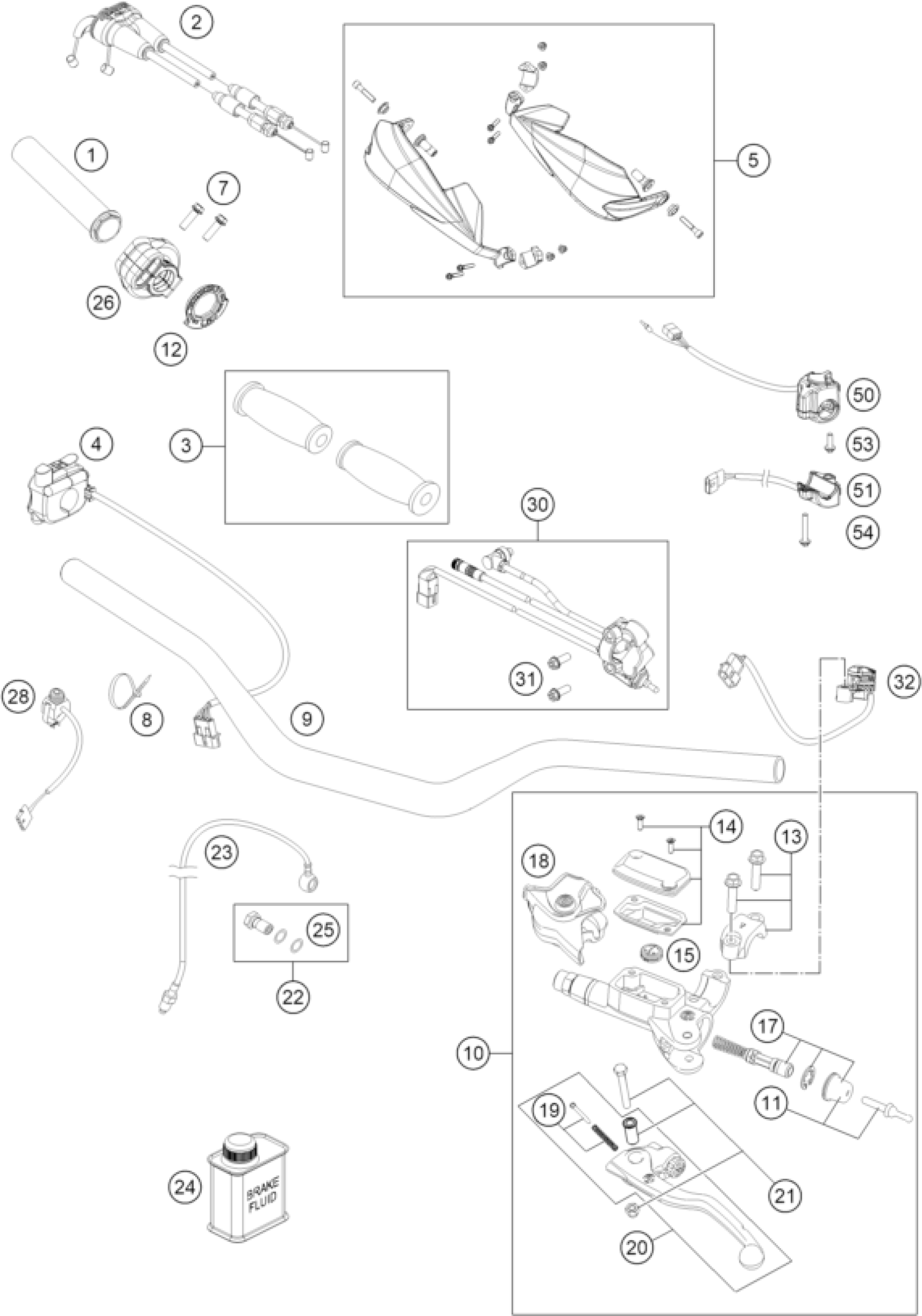

KTM 450 RALLY REPLICA `Sanders Edition` 2026 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

Throttle tube

76702013050

Unavailable

2

Throttle cable complete 4 stro

A46002091000

Unavailable

3

RUBBER GR. PRO GRIP 06

58502139044

Unavailable

4

START-STOP SWITCH

77711074000

Unavailable

5

HANDGUARD CLOSED WHITE

7800207920028

Unavailable

7

HH collar screw M6x20 TX30

0025060206

Unavailable

8

Cable tie 200/4.6mm black

44011076200

Unavailable

9

HANDLEBAR BLACK

7640210100030

Unavailable

10

MASTER CYLINDER CPL.

54802030144

Unavailable

11

Push rod cmpl.

54802046000

Unavailable

12

CAM 4-T 36 MM

79002014000

Unavailable

13

CLAMP CPL. 06

54802005100

Unavailable

14

COVER HYD. CLUTCH CPL. 2014

5480200310030

Unavailable

15

VALVE

54802051000

Unavailable

17

REP. KIT PISTON 06

54802032000

Unavailable

18

PROTECTION CAP 06

54802037000

Unavailable

19

BOLT KPL.

54802052000

Unavailable

20

Clutch lever cmpl. BREMBO 06

54802031000

Unavailable

21

Lever screw cmpl. 06

54802038100

Unavailable

22

HOLLOW SCREW + COPPER GASKET

59032062000

Unavailable

23

CLUTCH PIPE

78132063000

Unavailable

24

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

25

COPPER GASKET

59413013050

Unavailable

26

Housing throttle twist grip cp

A46002010025

Unavailable

28

STARTER BUTTON 06

63011074000

Unavailable

30

Switch for roadbook and tripma

A58012075244

Unavailable

31

AH SCREW DIN6912-M 6X20 8.8

0984060203

Unavailable

32

Fuel pump switch cpl.

76711006044

Unavailable

50

LIGHT SWITCH

78111070000

Unavailable

51

FLASHER SWITCH

78111029000

Unavailable

54

HH COLLAR SCREW M5X30 SW=6

0014050303

Unavailable

53

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable
