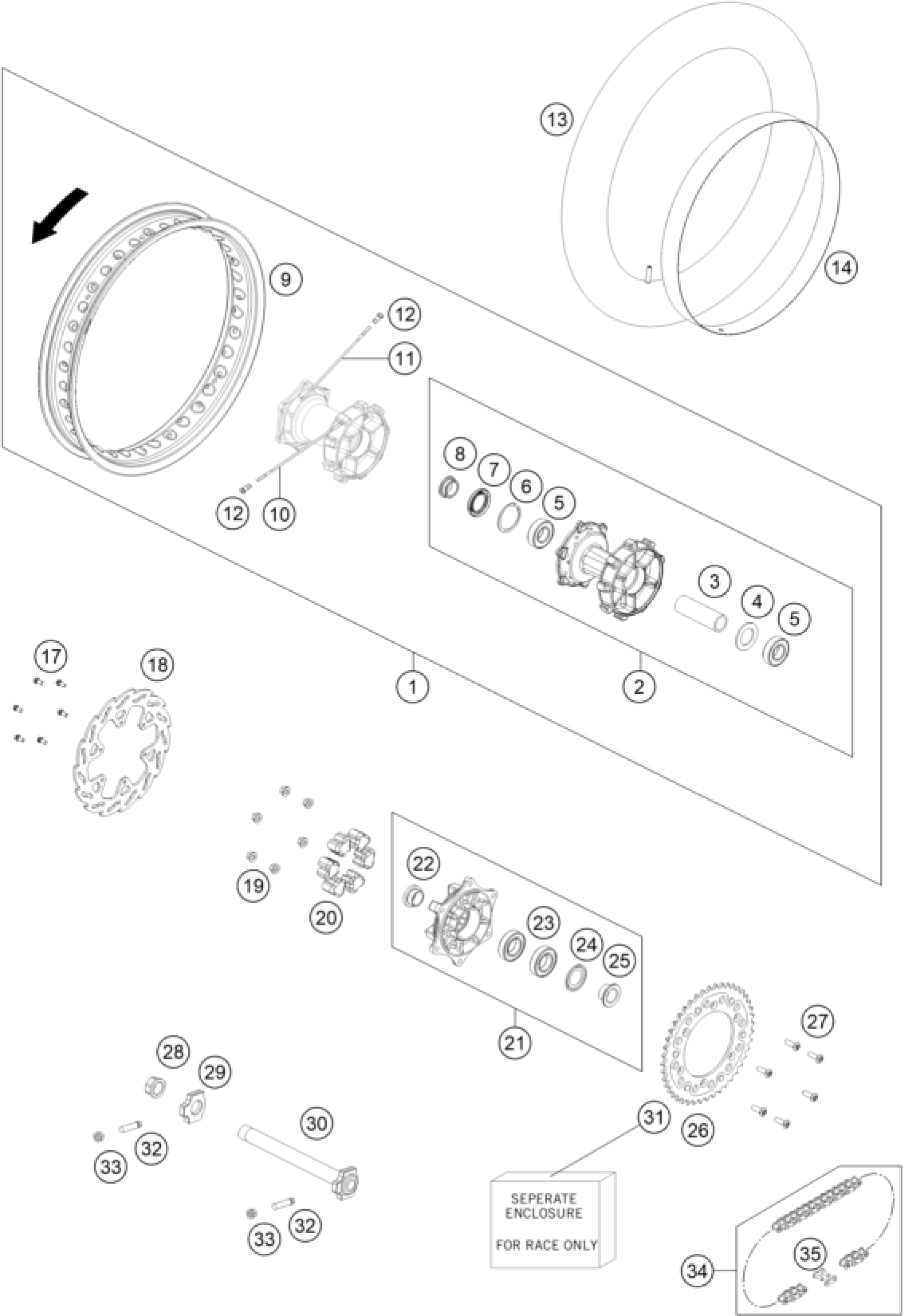

KTM 450 RALLY FACTORY REPLICA 2022 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel Rally

7671000113330

Unavailable

2

Rear wheel hub, damped cmpl. s

7671001013391

Unavailable

3

BUSHING SPACER TUBE L=98,3MM

58410011000

Unavailable

4

Spacer ring 03

60010015000

Unavailable

5

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

6

CIRCLIP DIN0472-52X2

0472052200

Unavailable

7

Radial shaft seal 30X52X7

0760305271

Unavailable

8

Bushing for hub, right

76710018000

Unavailable

9

RIM 2.50X18''

7621007000030

Unavailable

10

Spoke M5x213

76710071213

Unavailable

11

Spoke M5x206

76710071206

Unavailable

12

SPOKE NIPPLE QUADRAX M5

60310072100

Unavailable

13

TUBE 110/100C-18

50310075100

Unavailable

14

TUBE 18''

77410075000

Unavailable

17

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

18

REAR BRAKE DISK D=240X4MM

76510060100

Unavailable

19

Self locking nut M8 10.9

54310086200

Unavailable

20

Rubber damping block 91

54610459000

Unavailable

21

Sprocket carrier cpl.

7671005013330

Unavailable

22

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

Unavailable

23

BALL BEARING 6006 DDU2CG23S6NM

0625060060

Unavailable

24

NILOS RING 6006AV

60110016000

Unavailable

25

Spacer, rear sprkt. carrier

76710012000

Unavailable

26

REAR SPROCKET ORANGE 44-T

5841005104404

Unavailable

26

REAR SPROCKET ORANGE 46 T.

5841005104604

Unavailable

26

REAR SPROCKET ORANGE 48-T

5841005104804

Unavailable

26

REAR SPROCKET ORANGE 49-T

5841005104904

Unavailable

26

REAR SPROCKET ORANGE 50-T

5841005105004

Unavailable

26

SPROCKET 51-Z NATURE

7771015105101

Unavailable

27

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

28

COLLAR NUT WH. SPINDLE REAR 03

60010086000

Unavailable

29

CHAIN TENSIONER R/S

77710084000

Unavailable

30

WHEEL SPINDLE CPL. '13

77710085044

Unavailable

32

screw M10x1.25x50 WS10

50304040100

Unavailable

33

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

34

CHAIN DID 118 LINKS

78010167118

Unavailable

35

RIVETING LINK FOR 78010167118

78010166100

Unavailable

31

REAR SPROCKET ORANGE 51-T

5841005105104

Unavailable
