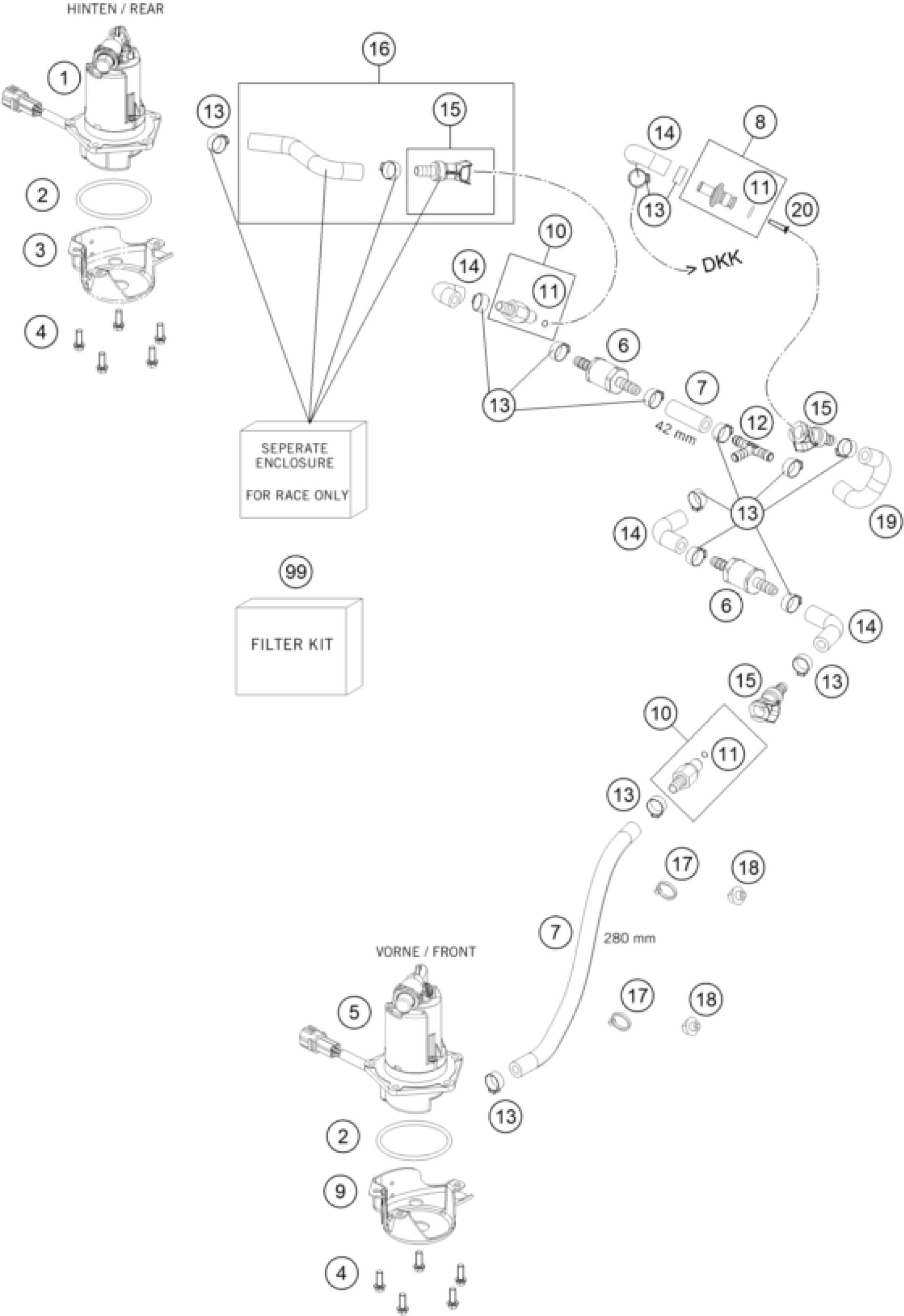

KTM 450 RALLY FACTORY REPLICA 2022 FUEL PUMP Diagram

#

Description

Price

1

FUEL PUMP

76407088000

Unavailable

2

O-RING 64.6X5.7 NBR 70 SHORE

0770646057

Unavailable

3

FUEL PUMP PROTECTION

76407125000

Unavailable

4

HH collar screw M6x16 TX30

0025060166

Unavailable

5

Fuel pump

76707088000

Unavailable

6

FLAP VALVE

76441010100

Unavailable

7

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

8

Fuel connection

77707010000

Unavailable

9

Tank guard

76707025000

Unavailable

10

Plug CPC black 05

5850701030030

Unavailable

11

O-ring VITON f. plug CPC 0

58507012000

Unavailable

12

T-connector 7.5

55441007000

Unavailable

13

Variable one-ear clamp 15.7mm

00050157706

Unavailable

14

FUEL HOSE TANK

77407116000

Unavailable

15

Clutch CPC PLCD17005, black

5850701050030

Unavailable

16

FUEL HOSE CPL.

62607016044

Unavailable

17

CABLE TIE 200MM

76311093200

Unavailable

18

Plug-in base

76711094010

Unavailable

19

Reduced fuel hose

76707017100

Unavailable

20

FUEL FILTER

78141013190

Unavailable

99

FILTER KIT

76407088100

Unavailable
