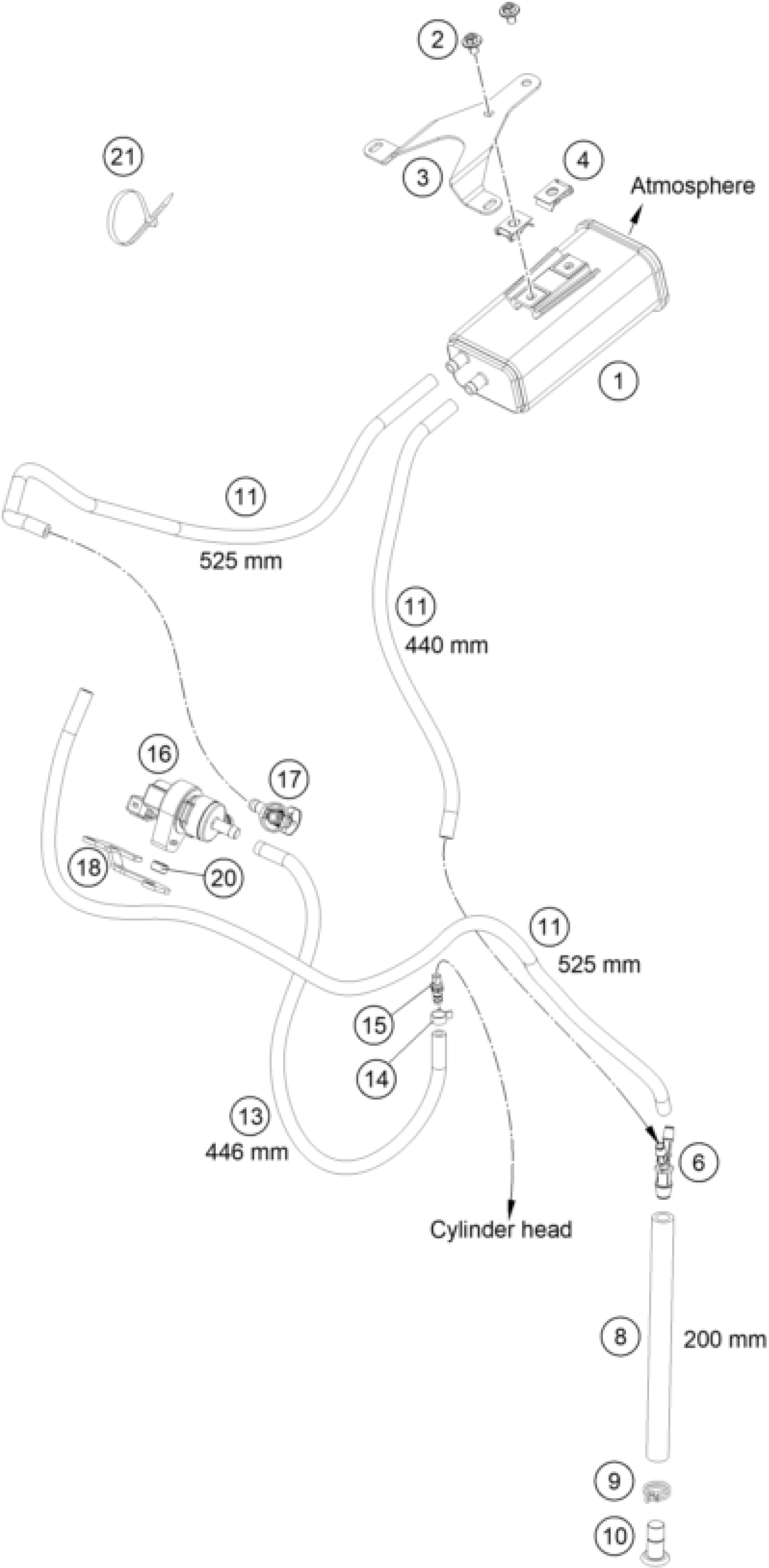

KTM 450 RALLY FACTORY REPLICA 2022 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

CARBON CANISTER

75015001200

Unavailable

2

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

3

Retaining bracket ACF

76715001010C1

Unavailable

4

clip nut M6

54603048100

Unavailable

6

Y-CONNECTOR YS 6-10-6

61315028100

Unavailable

8

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

9

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

10

PLUG D=10

61315026000

Unavailable

11

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

13

Pre-formed hose 6x10 ECO

76715021005

Unavailable

14

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable

15

VACUUM CONECTION M6/0,5MM

60036023100

Unavailable

16

VALVE FOR CARBON CANISTER 07

61115015000

Unavailable

17

FITTING PIECE NQV2 NW7 90°

61115016000

Unavailable

18

HOLDER ACTIVATED COAL FILTER

79615002000

Unavailable

20

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

21

CABLE TIE 200MM

76311093200

Unavailable
