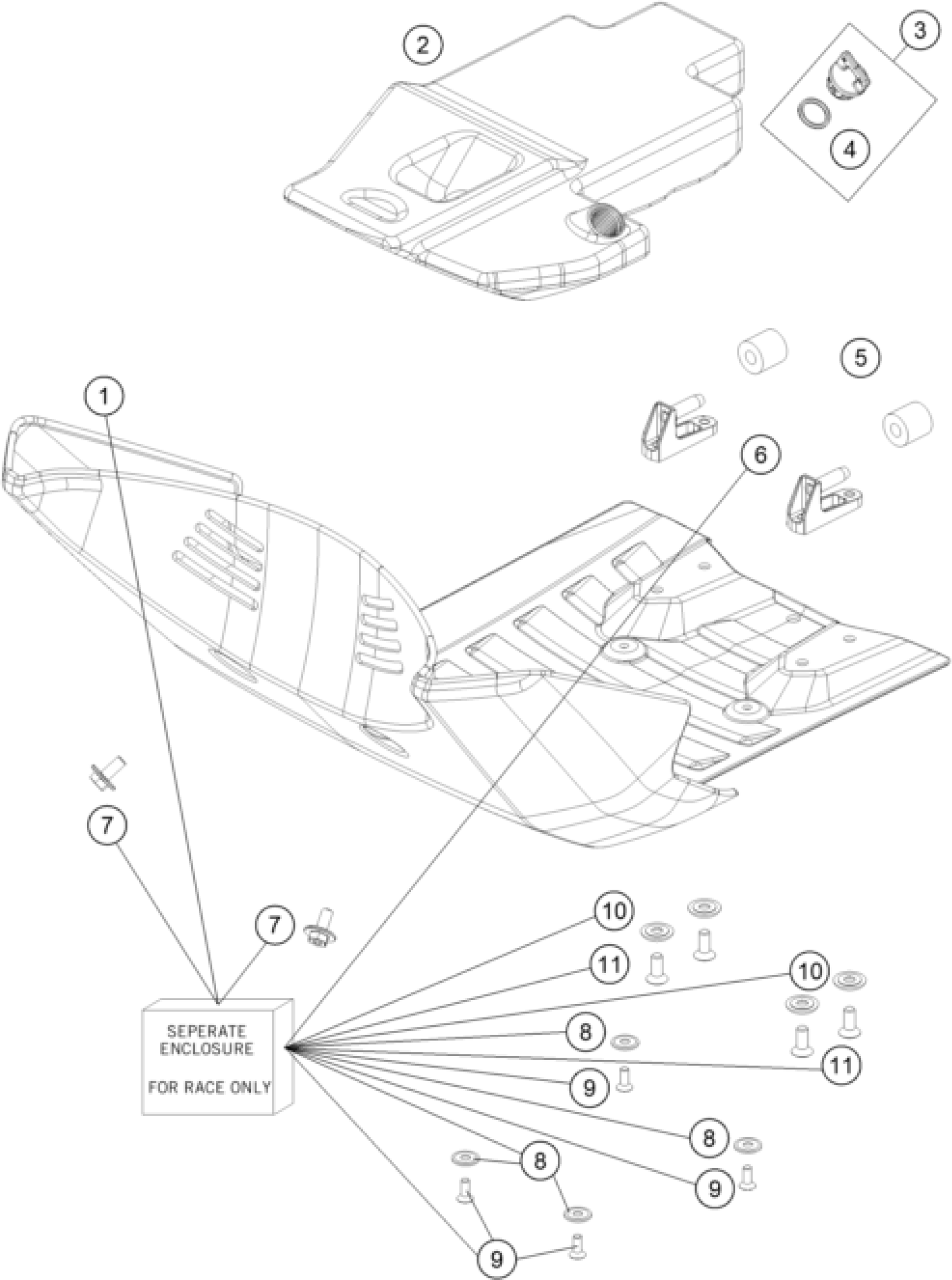

KTM 450 RALLY FACTORY REPLICA 2022 ENGINE GUARD Diagram

#

Description

Price

1

Skid plate

76703090100

Unavailable

5

RUBBER INSERT

76203005031

Unavailable

6

Skidplate support cpl.

76712099010

Unavailable

7

Special screw M8

76712099043

Unavailable

8

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

Unavailable

9

FL.HEAD SCR.DIN7991-M6X16 10.9

0991060166S

Unavailable

10

SPECIAL WASHER ALU 8 X 24 MM

58303061000

Unavailable

11

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

2

Water tank

76712099000

Unavailable

3

Oil filler cap cmpl. M24x3

79430020033

Unavailable

4

O-RING 19,00X3,00 NBR

0770191015

Unavailable
