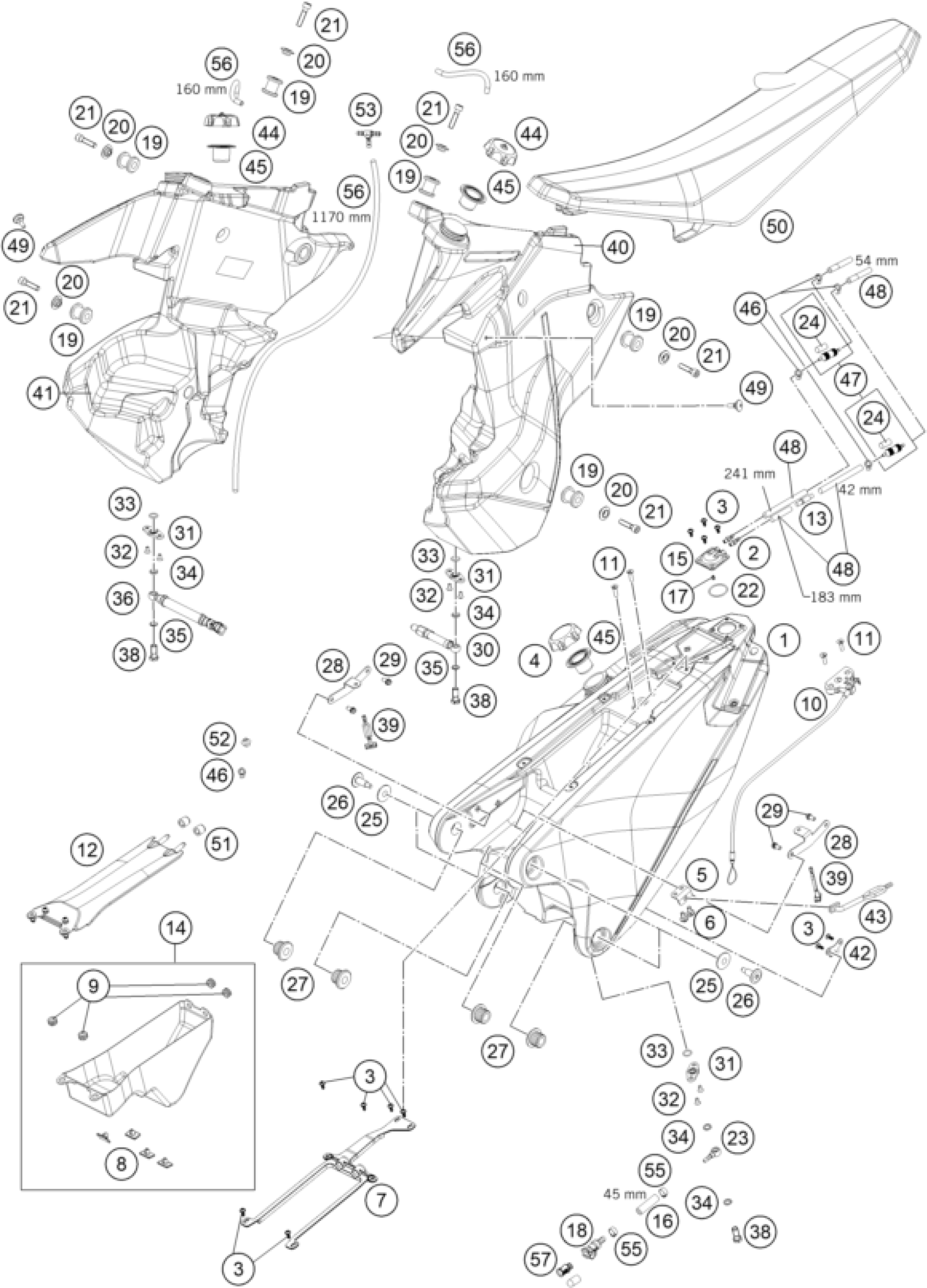

KTM 450 RALLY FACTORY REPLICA 2021 TANK, SEAT Diagram

#

Description
Price

1

Fuel tank painted white

7670701520028A

Unavailable

2

VACUUM CONECTION M6/3MM '97

58336020190

Unavailable

3

EJOT PT screw K50x14

0081050141

Unavailable

4

FILLER CAP TANK RALLY

76307108000

Unavailable

5

Loop for rubber strap

76407031100

Unavailable

6

HH collar screw M6x13 TX30

0024060136

Unavailable

7

Cable cover

76707027000

Unavailable

8

Isolation pad

77307040041

Unavailable

9

rubber grommet D=8mm open

31008060000

Unavailable

10

Seat look cmpl.

76707050033

Unavailable

11

Flat head screw DIN7991 M6X20

0991060202

Unavailable

12

Tool box lid ZSB

76712063133

Unavailable

13

VALVE FOR TANK BREATHING 02

57307019000

Unavailable

14

Toolbox Case ZSB

76712062133

Unavailable

15

Housing, tank air vent

76707030010

Unavailable

16

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

17

OIL JET ''60'' M4

80030058060

Unavailable

18

CLUTCH F. FUEL HOSE CPC 03

58507010500

Unavailable

19

RUBBER BUSHING

76407061000

Unavailable

20

BUSHING SLEEVE

76407064000

Unavailable

21

AH SCREW DIN0912-M 8X25

0912080253

Unavailable

22

O-RING 25,30X2,40 NBR70

0770253240

Unavailable

23

RING COMPONENT 10/6MM

49138493000

Unavailable

24

Filter element DM12x20

76707031010

Unavailable

25

Rubber washer

76707067000

Unavailable

26

BEARING SKREW

76407060000

Unavailable

27

Rubber bushing 14X24.5X35 L=21

76707066000

Unavailable

28

Toolbox bracket

76707015020

Unavailable

29

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

30

Connecting pipe

76707091033

Unavailable

31

FUEL FLANGE SHEET 01

58507008050

Unavailable

32

Flat head screw DIN7991 M5X10

0991050102

Unavailable

33

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

34

COPPER GASKET 10,2X14X2 MM 01

0603101420

Unavailable

35

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

36

Connecting pipe

76707092033

Unavailable

38

Hollow screw M10x1 wrench size

76738030000

Unavailable

39

BRACKET RUBBER FOR BATTERY

75011054005

Unavailable

40

Front tank, left, painted whit

7670701300028A

Unavailable

41

Front tank, right, painted whi

7670701400028A

Unavailable

42

Bowden cable holder

76707015010

Unavailable

43

RUBBER SIDE STAND

76503025000

Unavailable

44

TANK CAP

76407108000

Unavailable

45

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

46

CABLE TIE 200MM

76311093200

Unavailable

47

Filter tank ventilation cpl.

76707031033

Unavailable

48

Hose 6x3 mm

76707016001

Unavailable

49

SCREW SEAT FASTENING D=6X23/18

50307011000

Unavailable

50

Seat Asm

76707040000

Unavailable

51

rubber grommet

76006014000

Unavailable

52

Plug-in base

76711094010

Unavailable

53

T-connector TS-6 03

60015022000

Unavailable

55

VARIABLE ONE-EAR CLAMP 13,3MM

00050133706

Unavailable

56

Hose 5x8mm

58507007001

Unavailable

57

WASH CAP SET

81212016100

Unavailable
