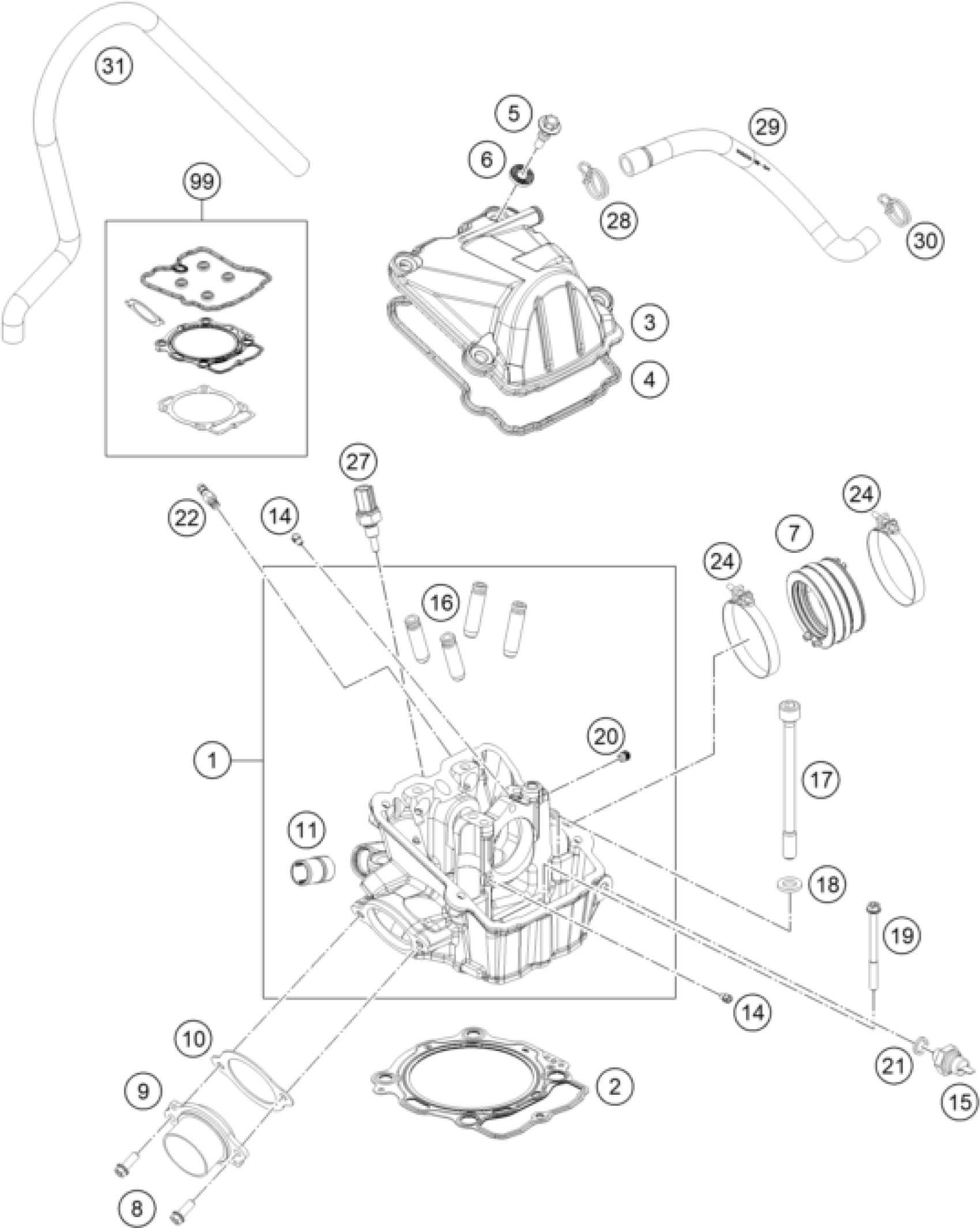

KTM 450 RALLY FACTORY REPLICA 2021 CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder head cmpl.

76736020400

Unavailable

2

CYLINDER HEAD GASKET (DN95)

79430036010

Unavailable

3

VALVE COVER

7943605200033

Unavailable

4

VALVE COVER GASKET

79436053000

Unavailable

5

VALVE COVER SCREW

78036054100

Unavailable

6

decoupling element

75036052010

Unavailable

7

RUBBER CUP

79236044100

Unavailable

8

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

9

Engine flange

76736039000

Unavailable

10

Exhaust gasket

79536041000

Unavailable

11

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

14

oil jet 70 M5

60030063070

Unavailable

15

OIL-PRESSURE SWITCH LC8 04

60038091100

Unavailable

16

VENTILFÜHRUNG EINLASS

78136025000M01

Unavailable

17

Cylinder Head Screw M10x1.25 L

78030044100

Unavailable

18

washer 19x10.5x2.5

77336089010

Unavailable

19

HH COLLAR SCREW M6X70 TX30

0025060706

Unavailable

20

SCREW PLUG

59030296000

Unavailable

21

COPPER GASKET 10,2X14X2 MM 01

0603101420

Unavailable

24

Hose clamp GEMI 63mm 05

61036047000

Unavailable

27

water temperature sensor

79435047000

Unavailable

28

CLAMP YDNAC 10173 (18MM)

58431082300

Unavailable

29

Engine vent hose

76730087000

Unavailable

30

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

31

ENGINE BREATHER TUBE

77330086100

Unavailable

99

CYL. GASKET SET 450 SX-F 16

79430097000

Unavailable

22

VACUUM CONECTION M6/0,5MM

60036023100

Unavailable
