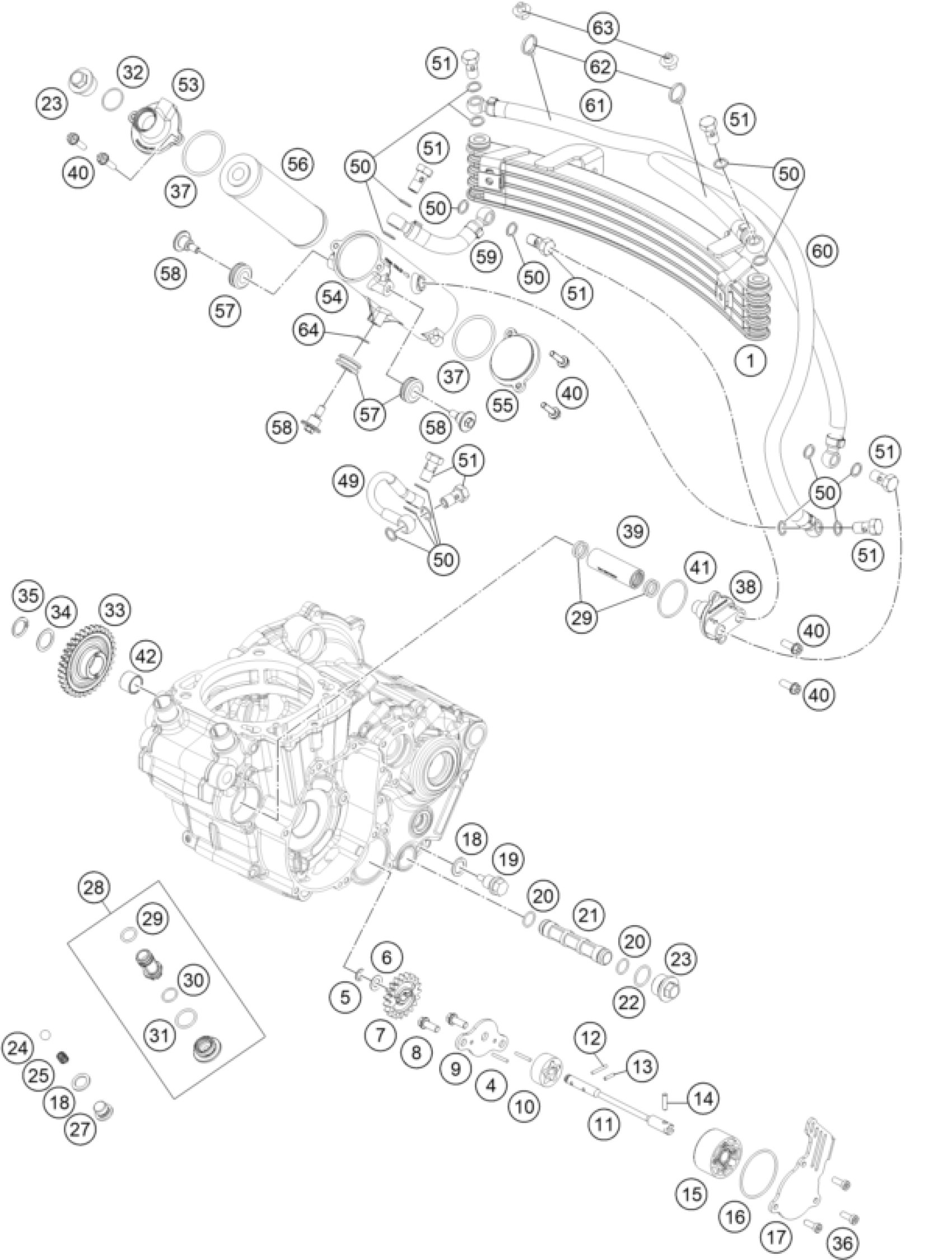

KTM 450 RALLY Factory Replica 2019 LUBRICATING SYSTEM Diagram

#

Description
Price

1

Oil radiator

76738051000

Unavailable

5

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

6

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

7

oil pump gear

79438001019M03

Unavailable

8

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

9

oil pump cover

79438003000M02

Unavailable

10

OILPUMP ROTOR 15MM G-164

77038011000

Unavailable

11

Oil pump shaft

79438002000M02

Unavailable

12

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

13

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

Unavailable

14

needle roller NRB 4x15.8 G2

0402041580

Unavailable

15

ROTOR SET 22MM

61238011100

Unavailable

16

O-RING 44,00X2,00 VITON

0770440020

Unavailable

17

OIL PUMP COVER

79438004100

Unavailable

18

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

19

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

20

O-RING 12,5X1,5 VITON V75

07701250151

Unavailable

21

OIL SCREEN

59038016100

Unavailable

22

O-RING 17,17X1,78 GLO

0770020170

Unavailable

23

PLUG M20X1,5 WS=13

59038017100

Unavailable

24

BALL DIN5401-9

0401090003

Unavailable

25

Compression Spring

79438026000M01

Unavailable

27

Locking screw oil system

78036024000M01

Unavailable

28

OIL SCREEN CPL.

78138015001

Unavailable

29

O-RING 12X2 VITON GREEN

0770012021

Unavailable

30

O-RING 12,5X1,5 NBR

0770125015

Unavailable

31

O-RING 17,00X2,00

0770170200

Unavailable

33

Intermediate gear 33 Z

79438001033M04

Unavailable

34

THRUST WASH. DIN0988-16X22X0,5

0988162205

Unavailable

35

CIRCLIP DIN0471-15X1

0471150010

Unavailable

36

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

Unavailable

37

O-RING 39,34X2,62

07700390261

Unavailable

38

Oil adapter

76738050000

Unavailable

40

HH collar screw M5x16 TX30

0025050166

Unavailable

49

OIL JET

76438034000

Unavailable

50

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

51

Hollow screw M10x1 wrench size

76738030000

Unavailable

53

COVER OIL FILTER 1

76438041000

Unavailable

54

HOUSING OI FILTER

76438043000

Unavailable

55

COVER OIL FILTER 2

76438042000

Unavailable

56

OIL FILTER

83538005000

Unavailable

57

RUBBER SLEEVE D=12MM

41001052000

Unavailable

58

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

59

OIL PIPE L=105MM

76438053000

Unavailable

60

OIL PIPE L=696MM

76438055000

Unavailable

61

OIL PIPE L=615MM

76438054000

Unavailable

62

CABLE TIE 200MM

76311093200

Unavailable

63

Plug-in base

76711094010

Unavailable

64

Washer DIN9021-A 6.4

0021060003

Unavailable

39

Tube f/ oil adapte

76738035000

Unavailable

41

O-RING 33,05X1,78

07703305178

Unavailable

4

Cylinder pin

79438006000M01

Unavailable

42

NEEDLE BEARING INNER RING

79438001010

Unavailable

32

O-RING 17X2,5

0770017025

Unavailable
