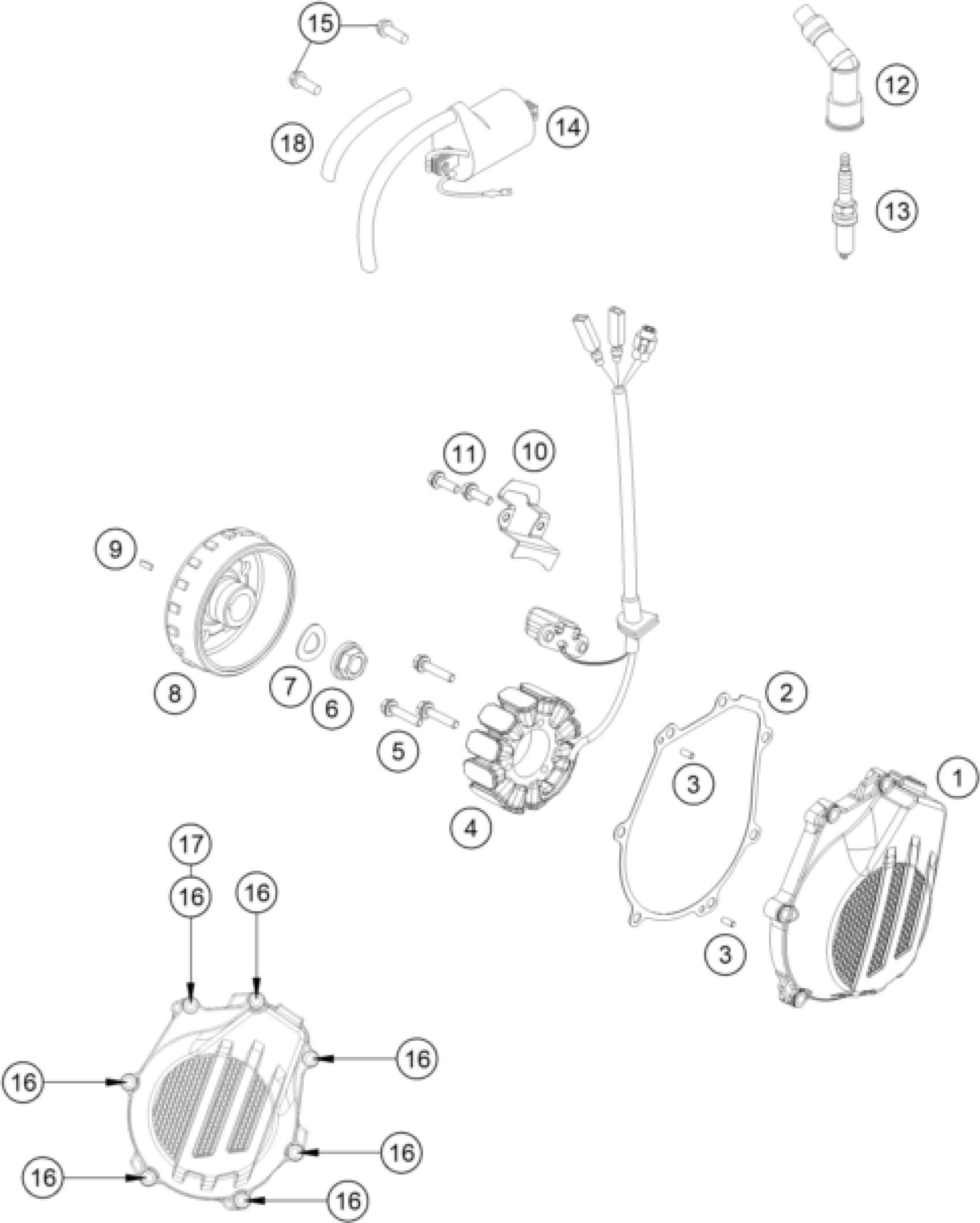

KTM 450 RALLY Factory Replica 2019 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER EXC

7943050200015

Unavailable

2

IGNITION COVER GASKET

79430040000

Unavailable

3

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

4

STATOR

79239104000

Unavailable

5

HH COLLAR SCREW M5X25 ISA30

0025050256

Unavailable

6

COLLAR NUT M12X1 R/S

49030021000

Unavailable

7

SPRING WASHER DIN0137-B12

0137120000

Unavailable

8

ROTOR EXC 08

78039205000

Unavailable

9

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

10

CABLE BRACKET

79430502050

Unavailable

11

HH collar screw M5x16 TX30

0025050166

Unavailable

12

SPARK PLUG CONNECTOR

78039090100

Unavailable

13

PLUG NGK LMAR9AI - 8

77239093000

Unavailable

14

Ignition coil

58439006000

Unavailable

15

COLLAR SCREW M6X18 ISA30

0026060186

Unavailable

16

HH collar screw M6x25 TX30

0025060256

Unavailable

17

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

18

Shrink tubing DM10.8 x 65 mm

76739010000

Unavailable
