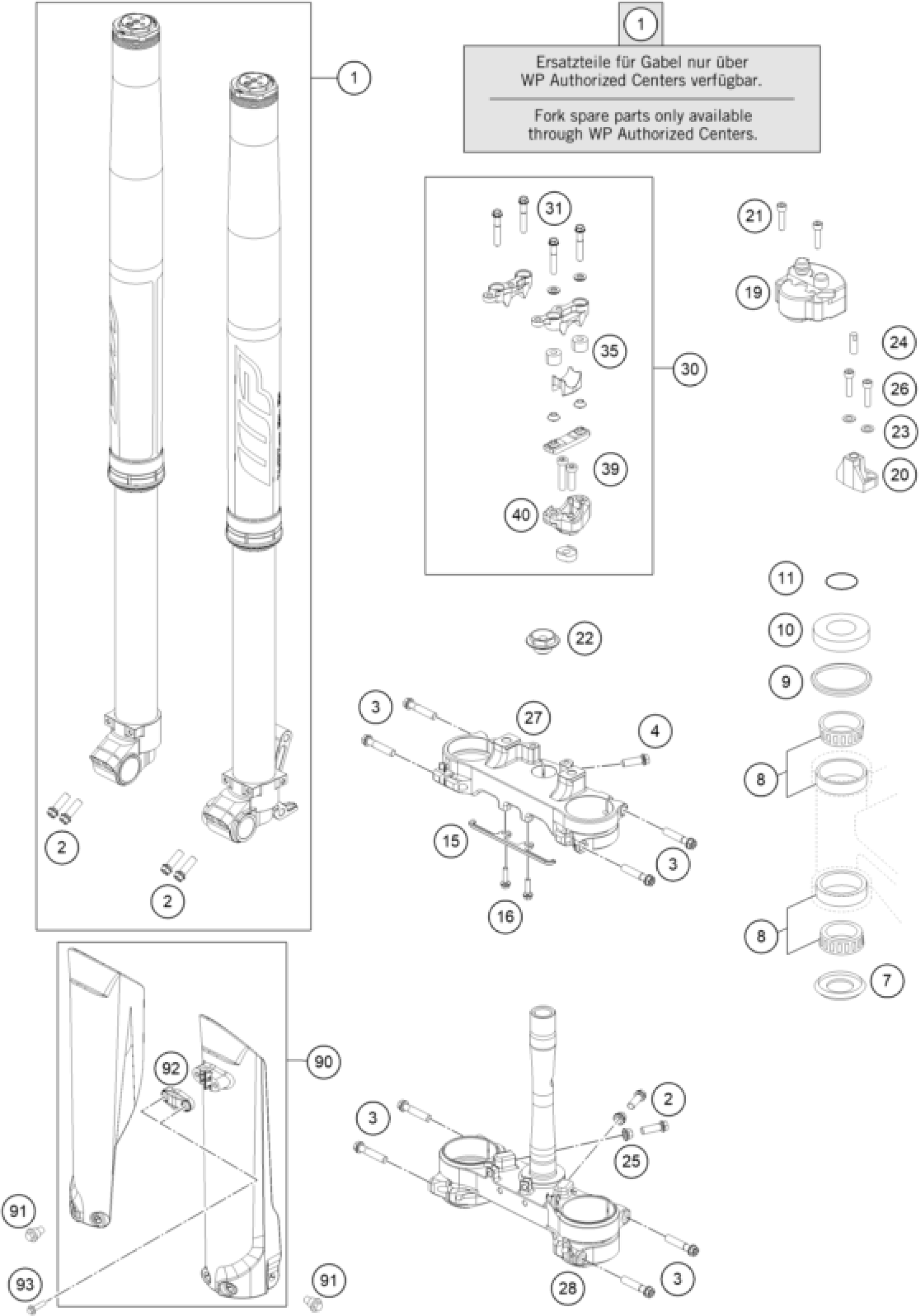

KTM 450 RALLY Factory Replica 2019 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

fork 450 Rally-Replica Factory

14182S4001

Unavailable

2

HH collar screw M8x25

0025080256

Unavailable

3

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

4

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

7

O-RING SUPPORT W. SEALING LIP

77701084000

Unavailable

8

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

9

STEARING HEAD GASKET TOP

54601184000

Unavailable

10

STEER HEAD COV SHORTENED BLK

7620108600030

Unavailable

15

Cable holder

76701045000

Unavailable

16

HH collar screw M6x20 TX30

0025060206

Unavailable

19

STEERING DAMPER

58512050100

Unavailable

20

STEERING DAMPER BRACKET CPL 07

76203001079

Unavailable

21

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

22

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

Unavailable

24

PIN F.STEERING STAB. 8MM 05

58502006100

Unavailable

25

flanged nut M8 WS10

46030045000

Unavailable

26

AH SCREW DIN0912-M 6X12

0912060123

Unavailable

27

Fork bridge above x= 22mm

7670103402204

Unavailable

28

Bottom triple clamp X=22 mm cp

7670103202204

Unavailable

39

AH SCREW DIN0912-M10X25 10.9

0912100256

Unavailable

39

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

30

Handlebar mount Rally cmpl.

76702004033

Unavailable

31

HH COLLAR SCREW M 8X45 WS=10

0015080453

Unavailable

35

ELASTOMER GREEN/SOFT

SXS05125203

Unavailable

40

BASE SUPPORT

SXS07125206

Unavailable

35

ELASTOMER YELLOW/MEDIUM

SXS05125204

Unavailable

35

ELASTOMER RED/HARD

SXS05125205

Unavailable

90

FORK PROTECTION SET

7770109410028

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

CLAMP BRAKE HOSE

7770108510028

Unavailable

93

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

23

Pair of washers M6 NORDLOCK

50233041000

Unavailable

11

O-RING 25X3,55 NBR70 05

0770025035

Unavailable
