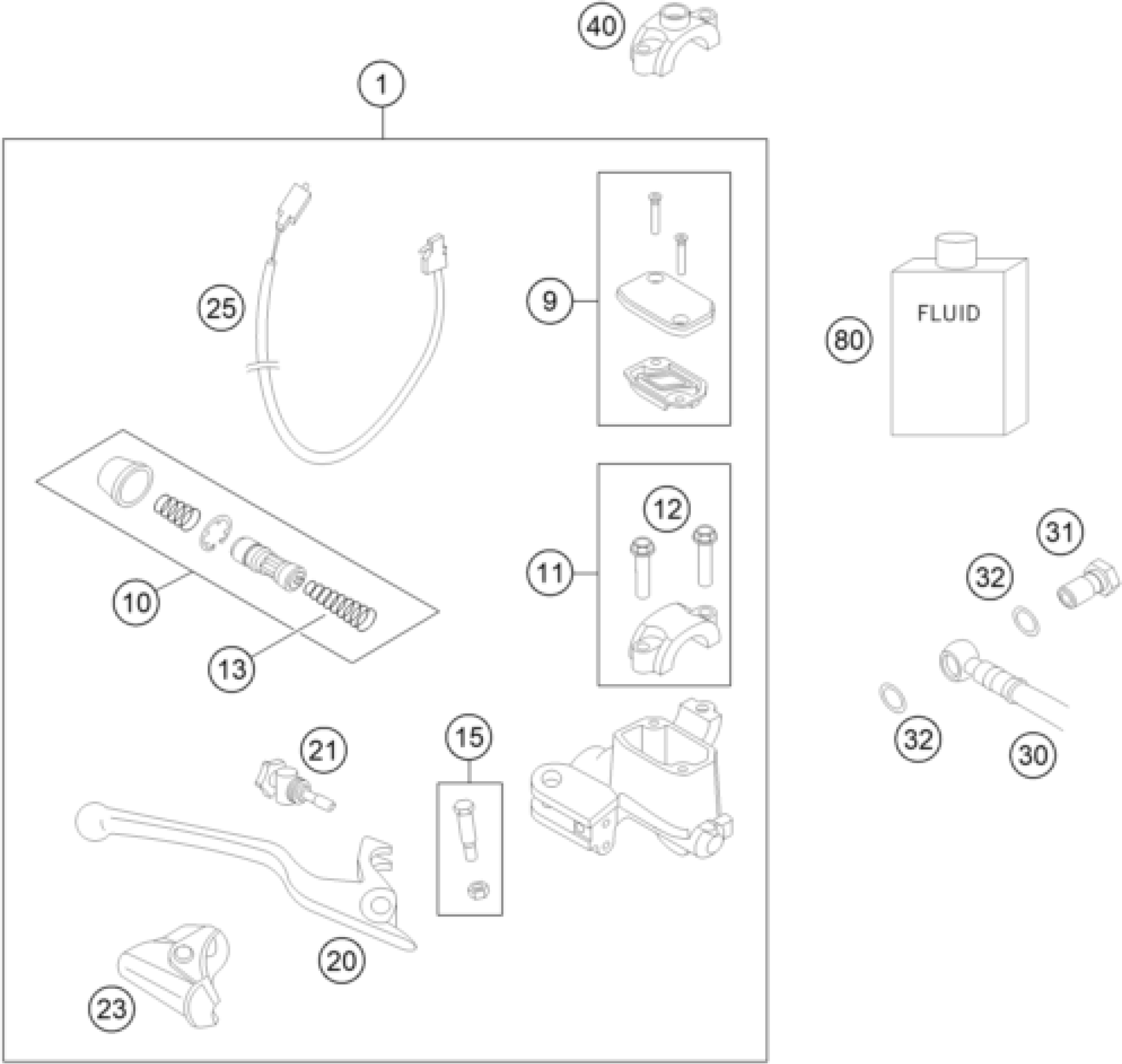

KTM 450 RALLY Factory Replica 2019 FRONT BRAKE CONTROL Diagram

#

Description
Price

1

Brake cylinder

76713001000

Unavailable

9

HANDBRAKE CYL.COVER CPL.NATURE

50313003000

Unavailable

10

REP.SET PISTON D=11 EXC 2001

50313008300

Unavailable

11

CLAMP CPL. NATURE

50313005000

Unavailable

12

HH collar screw M6x25 TX30

0025060256

Unavailable

13

SPRING PISTON BRAKE FRONT 11MM

50213050050

Unavailable

15

LEVER SCREW CPL. 2001

50313006100

Unavailable

20

HANDBRAKE LEVER SHORT 2001

50313002100

Unavailable

20

HANDBRAKE LEVER 18MM 2000

50313002000

Unavailable

21

ADJUSTING SCREW CPL. SX 2000

50313007000

Unavailable

23

PROTECTION CAP HAND BRAKE CYL.

50313004000

Unavailable

25

Brake light switch front

76711048100

Unavailable

30

Front brake hose

76713011000

Unavailable

31

banjo bolt M10x1x19 black

54813020100

Unavailable

32

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

40

Clamp for mirror

58012040150

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
