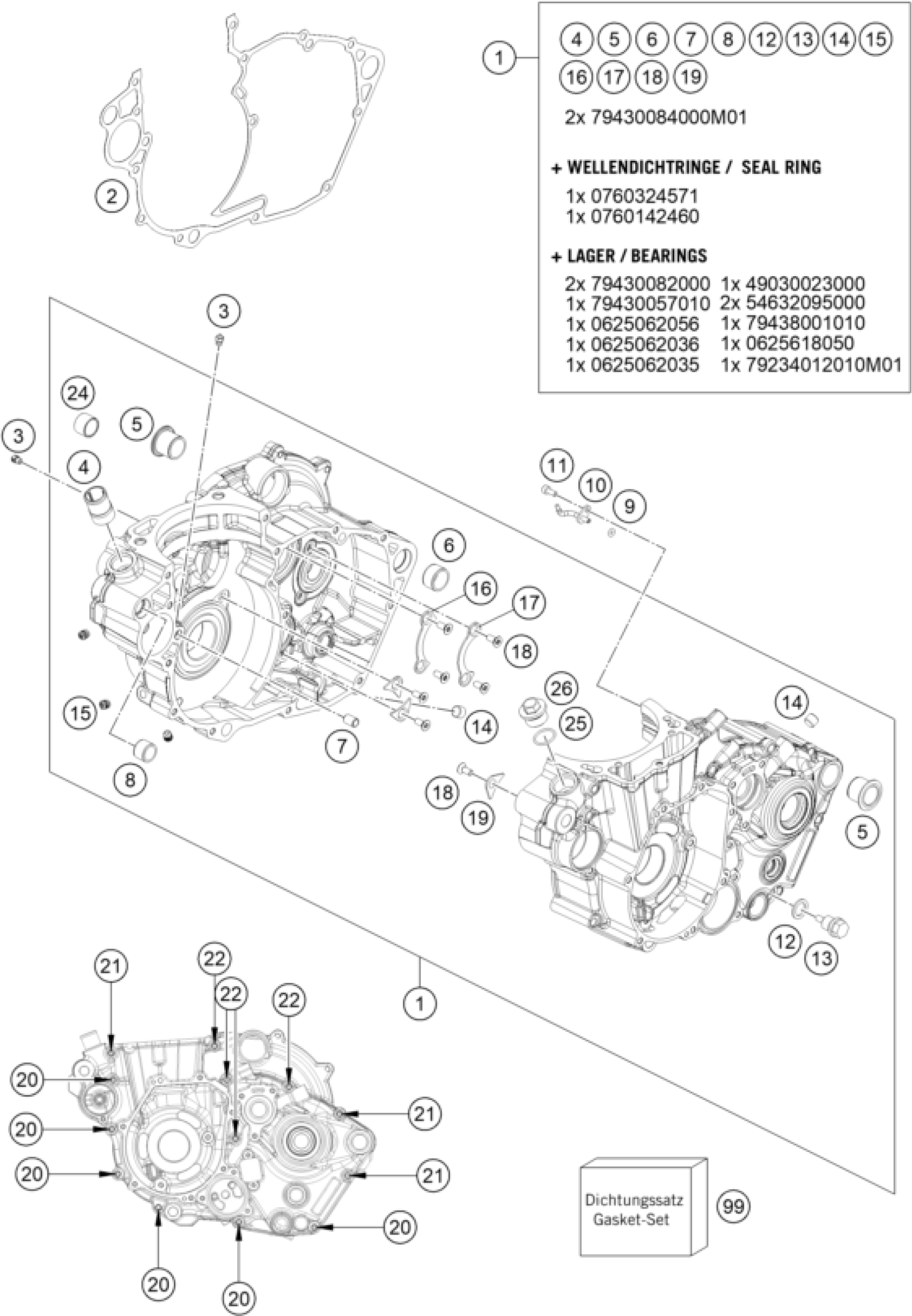

KTM 450 RALLY Factory Replica 2019 ENGINE CASE Diagram

#

Description
Price

1

Engine case cmpl.

76730000033

Unavailable

3

oil jet 70 M5

60030063070

Unavailable

4

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

5

bushing

75030010100M01

Unavailable

6

DOWEL 21X12 03

54830027000

Unavailable

7

dowel sleeve 6x8x11.5

59030023000

Unavailable

8

DOWEL 17 X 13 X 12

51030026100

Unavailable

9

O-RING 3,5X2,00 NBR

0770035020

Unavailable

10

OIL JET ANGLED 70

81230064000

Unavailable

11

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

12

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

13

oildrain plug with magnet

58030021100

Unavailable

14

pipe plug DIN 906 M10x1

0906100100

Unavailable

15

SCREW PLUG

59030296000

Unavailable

16

TAB WASHER BEARING MAIN SHAFT

78033032000

Unavailable

17

TAB WASHER BEARING COUNT.SHAFT

78033132000

Unavailable

18

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

19

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

20

HH collar screw M6x60 TX30

0025060606

Unavailable

21

HH COLLAR SCREW M6X70 TX30

0025060706

Unavailable

22

HH COLLAR SCREW M6X80 TX30

0025060806

Unavailable

99

GASKET SET 450 SX-F

79430099000

Unavailable

2

Gasket

79430039000M02

Unavailable

24

NEEDLE BEARING INNER RING

79438001010

Unavailable

25

O-RING 17,17X1,78 GLO

0770020170

Unavailable

26

PLUG M20X1,5 WS=13

59038017100

Unavailable
