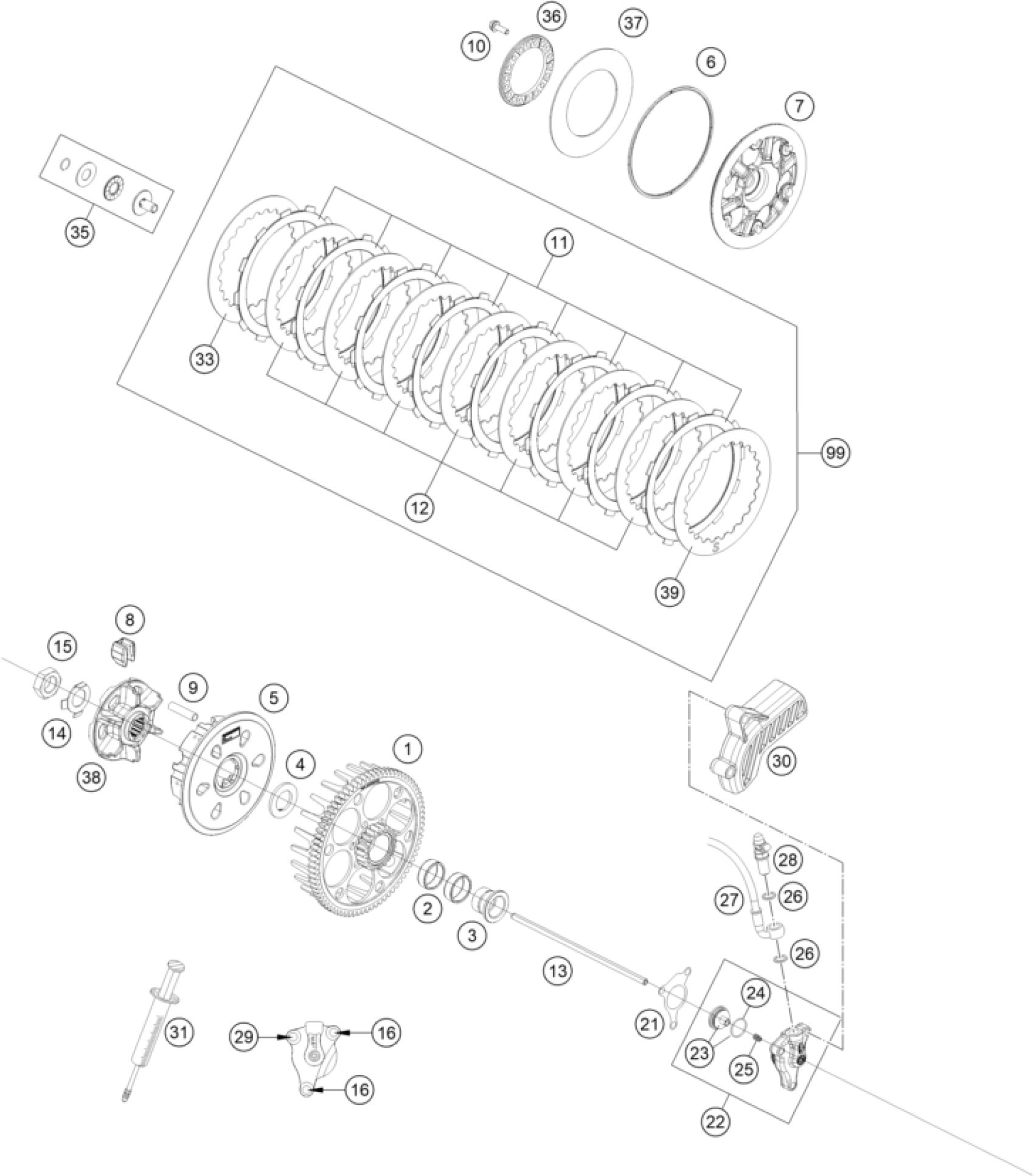

KTM 450 RALLY Factory Replica 2019 CLUTCH Diagram

#

Description
Price

1

CLUTCH BASKET

78132001076M01

Unavailable

2

NEEDLE BEAR K 25X29X10

0405252910

Unavailable

3

Collar sleeve

78132015100M01

Unavailable

4

WASHER 22 X 36,5 X 3

78932009000

Unavailable

5

CLUTCH HUB

78132002300

Unavailable

6

WASHER 112X118X1.5

78132013000

Unavailable

7

CLUTCH PRESSURE CAP

79432003000

Unavailable

8

DAMPING RUBBER

78132025100

Unavailable

9

DRIVING SLEEVE D=7,95 L=38

77232004000

Unavailable

10

HH collar screw M5x16 TX30

0025050166

Unavailable

11

Lining disc 1,95mm

79532011000

Unavailable

12

INTERMEDIATE DISC 1,4MM 2002

59032010200

Unavailable

13

PUSH ROD

79432054000

Unavailable

14

TAB WASHER

78132018000

Unavailable

15

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

16

HH collar screw M6x40 TX30

0025060406

Unavailable

21

GASKET FOR SLAVE CYLINDER

59032065000

Unavailable

22

OUTPUT CYLINDER CPL. 06

54832061044

Unavailable

23

PISTON CPL.

54832066000

Unavailable

24

O-RING

54832067000

Unavailable

25

PRESSURE SPRING

54832069000

Unavailable

26

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

27

CLUTCH PIPE

78132063000

Unavailable

28

BLEEDER SCREW CPL. 05

62513020000

Unavailable

29

HH collar screw M6x20 TX30

0025060206

Unavailable

31

VENT INJEKTION HYDR. CLUTCH

50329050000

Unavailable

33

INTERMEDIATE DISC 1MM 2002

59032010100

Unavailable

35

PRESSURE PIECE CPL.

78132057144

Unavailable

36

SPRING RING

78132006100

Unavailable

37

CLUTCH SPRING ''300Nm''

76432005000

Unavailable

38

HUB

78132002111

Unavailable

39

INTERMEDIATE DISC 1MM

78932010000

Unavailable

99

Clutch plate pack

79532010033

Unavailable

30

Sprocket guard

76704060000

Unavailable
