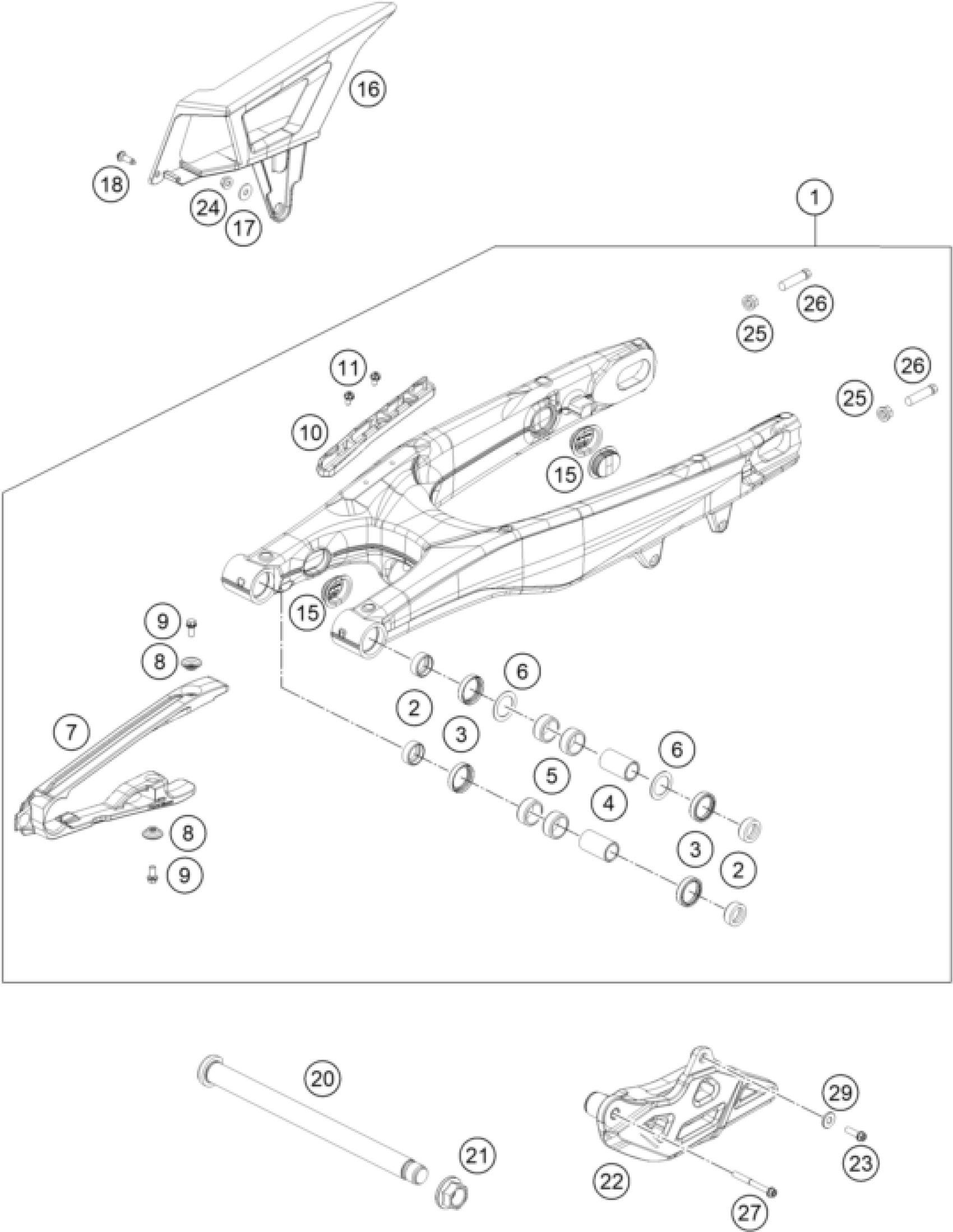

KTM 450 RALLY Factory Replica 2018 SWING ARM Diagram

#

Description
Price

1

Swingarm cmpl.

76704030144

Unavailable

2

Bucket f. shaft seal ring 03

54804034000

Unavailable

3

radial shaft seal 25x32x7

0760253270

Unavailable

4

Bearing sleeve 17x22x38.7 03

59404032000

Unavailable

5

Needle bushing HK2212V 22/28/1

0618222812

Unavailable

6

STOP DISK 22,2X31,7X1

54603036000

Unavailable

7

CHAIN SLIDING PROTECTION

77204066100

Unavailable

8

chain slider bushing

77304066050

Unavailable

9

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

10

BRAKE HOSE GUIDE

79004042000

Unavailable

11

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

15

Locking cap swingarm

77204041000

Unavailable

20

Swingarm pivot M16x1.5

76704037000

Unavailable

21

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

22

CHAIN GUIDE

79004070000

Unavailable

23

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

24

Self locking nut M6 - 10

56509064100

Unavailable

25

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

26

screw M10x1.25x50 WS10

50304040100

Unavailable

27

HH collar screw M6x50 TX30

0025060506

Unavailable

16

CHAINGUARD

78104060000

Unavailable

17

Washer DIN9021-A 6.4

0021060003

Unavailable

18

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

29

BUSH. F. CHAIN FAIL. PROT. 07

77304070130

Unavailable
