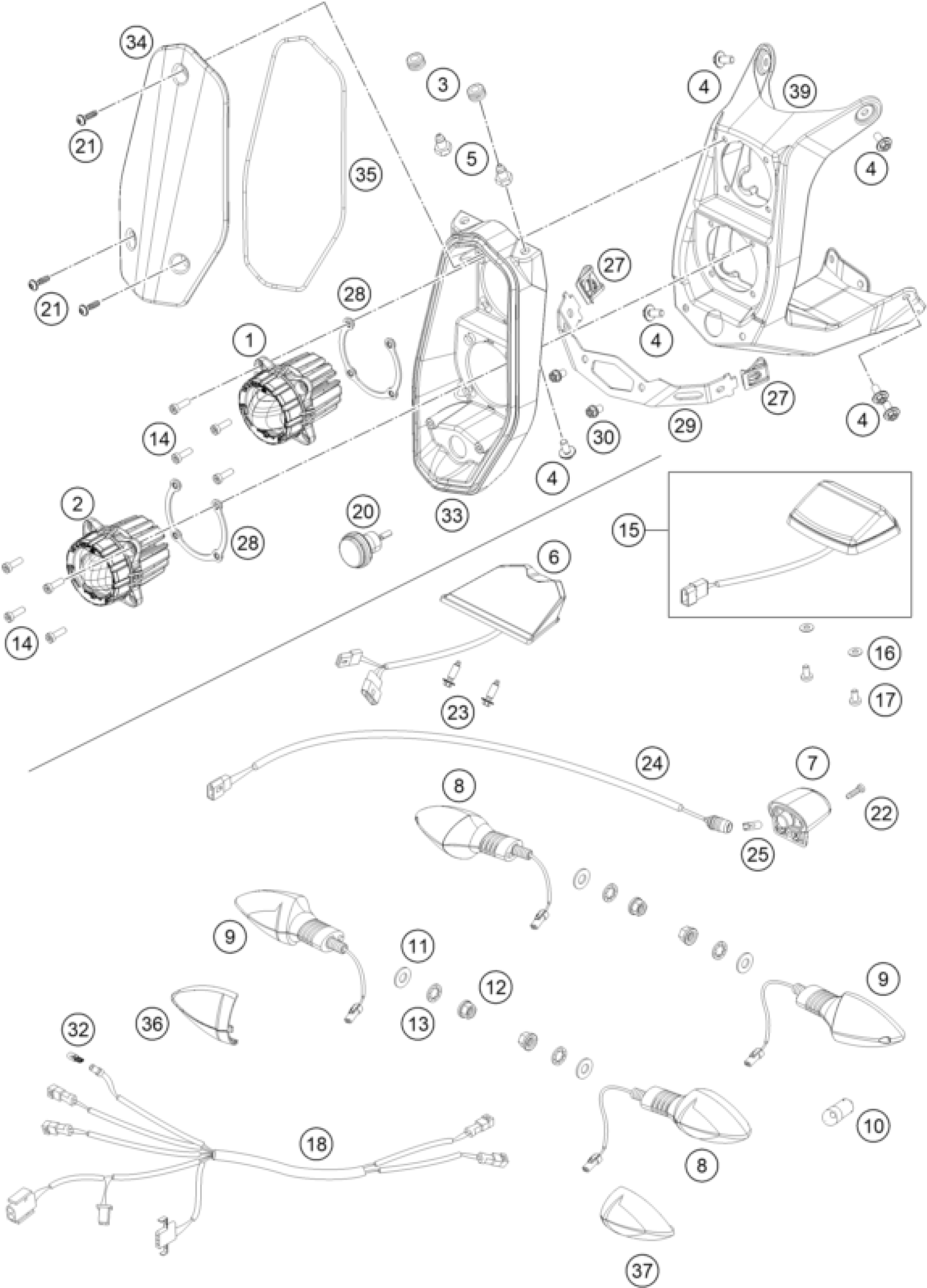

KTM 450 RALLY Factory Replica 2018 LIGHTING SYSTEM Diagram

#

Description
Price

1

Hella M60 LED, high beam

76714002000

Unavailable

2

Hella M60 LED, low beam

76714001000

Unavailable

3

rubber grommet D=8mm open

31008060000

Unavailable

4

HH collar screw M6x13 TX30

0024060136

Unavailable

5

Windshield positioning pin

76712089043

Unavailable

6

tail light

76714040000

Unavailable

8

FLASHER CPL.FRONT L/S REAR R/S

78114025000

Unavailable

9

FLASHER CPL.FRONT R/S REAR L/S

78114026000

Unavailable

10

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

11

washer DIN 125 A 10.5

0125100003

Unavailable

12

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

13

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

14

Cap head screw DIN6912 M5X16 8

0984050162

Unavailable

15

Extra rear light

76714040050

Unavailable

16

WASHER 5,3X12X0,5

77332036004

Unavailable

17

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable

18

WIRING HARNESS FLASHER

76411080000

Unavailable

20

POSITION LIGHT

76414004000

Unavailable

21

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

23

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

25

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

27

Clip

45007040052

Unavailable

28

.

Unavailable

29

Windshield retaining bracket

76708004010

Unavailable

30

HH collar screw M6x10 TX30

0025060106

Unavailable

32

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

33

Headlight mask

76708001000

Unavailable

34

Stone chip guard

76712079000

Unavailable

35

Rubber seal

76708001001

Unavailable

36

FLASHER LENS L/S R/S TRANSP.

78114028000

Unavailable

37

FLASHER LENS FRO.L/S-REAR R/S

78114027000

Unavailable

39

Light support structure

76708003044

Unavailable

7

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

22

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

24

WIRING HARN. LIC. PLATE ILLUM.

76511078000

Unavailable
