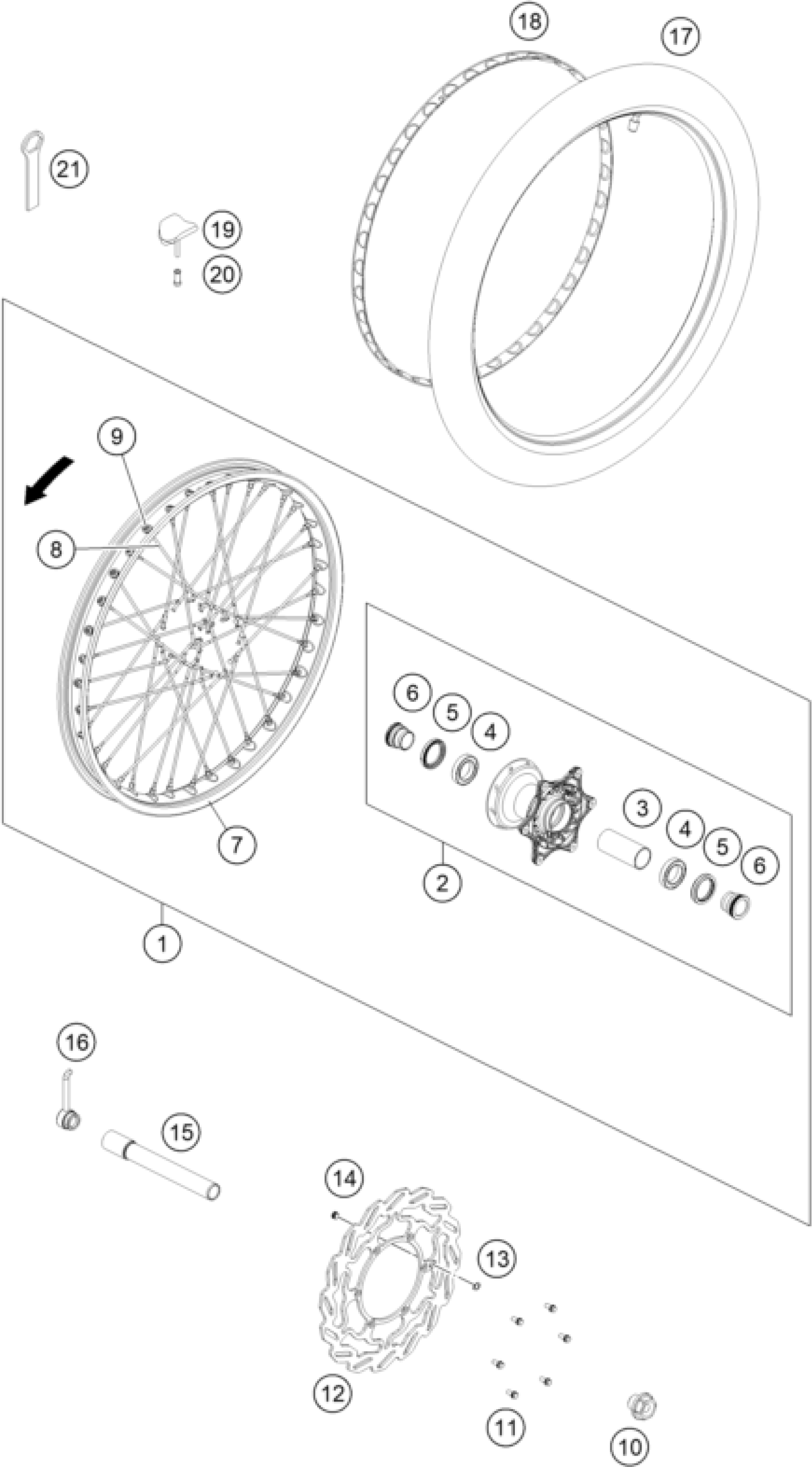

KTM 450 RALLY Factory Replica 2018 FRONT WHEEL Diagram

#

Description
Price

1

FRONTWHEEL CPL.1,6X21EXCEL

7640900104430

Unavailable

2

FRONT HUB CPL.

7530901004491

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

6

SPACER BUSHING F. FR. WHEEL 08

78009012000

Unavailable

7

RIM 1,6''X21'' EXCEL SXS

7730907000030

Unavailable

8

SPOKE

76409071240

Unavailable

9

SPOKE NIPPLE QUADRAX M4,5

81210072100

Unavailable

10

COLLAR SCREW FRONT AXLE WS32

76209082000

Unavailable

11

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

12

BRAKE DISC FRONT 07

58509060000

Unavailable

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

14

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

15

WHEEL SPIN.FR. D=26 M24x1,5 07

77309081000

Unavailable

16

Front axle puller

7900998126004

Unavailable

17

Hose 21"

50309075000

Unavailable

18

Tube protector 21"

50309073000

Unavailable

19

RIM LOCK 1,60''

78109090000

Unavailable

20

NUT FOR WHEEL HOLDER

77110090050

Unavailable

21

RING WRENCH 32MM

76212060032

Unavailable

16

Front axle puller

79009981260C1

Unavailable
