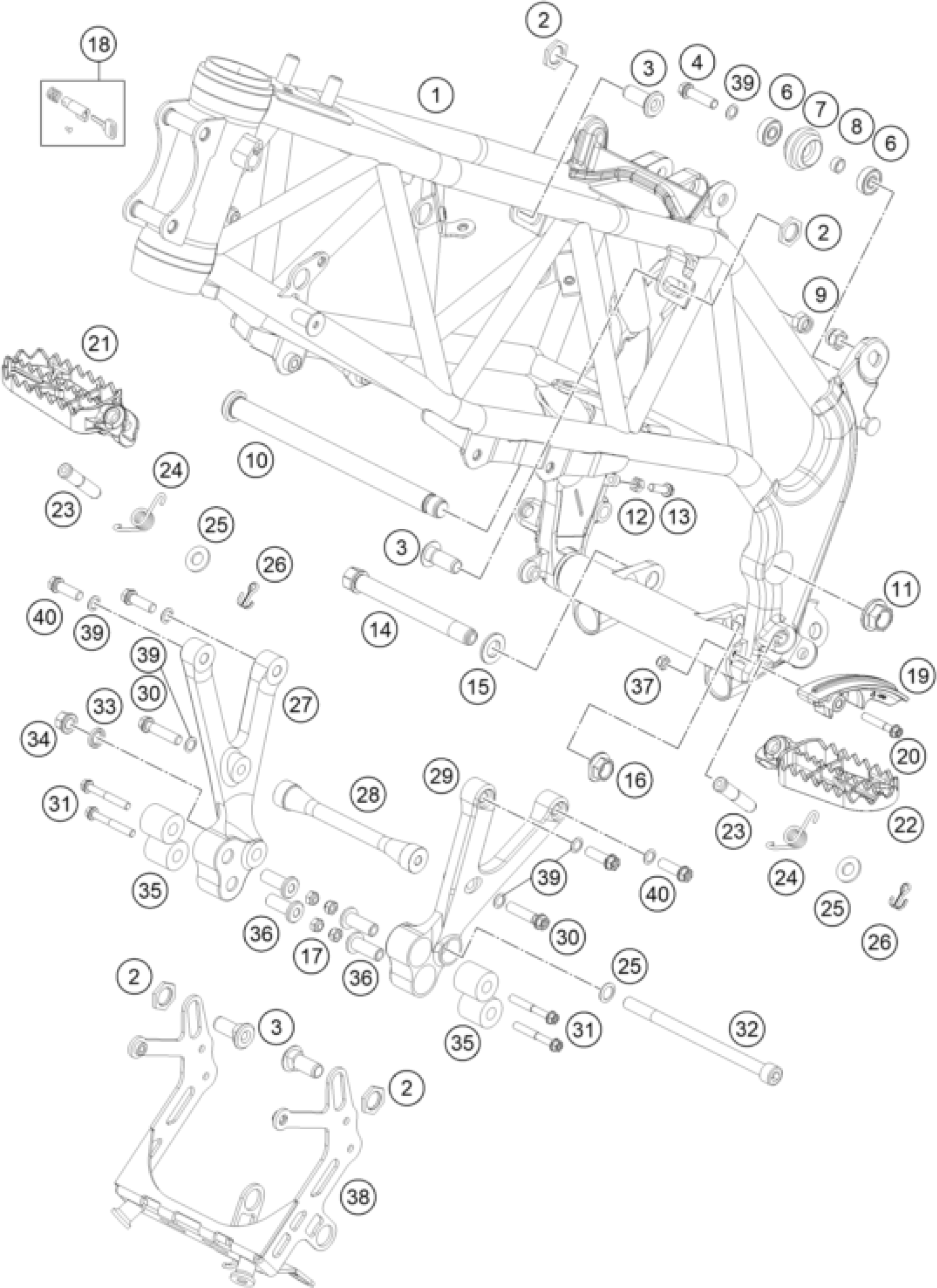

KTM 450 RALLY Factory Replica 2018 FRAME Diagram

#

Description
Price

2

NUT F.TANK BRAKET REAR

60512063050

Unavailable

3

FIXING SCREW TANK

76407063000

Unavailable

4

HH collar screw M8x30

0025080306

Unavailable

6

Grooved ball bearing 608 2RS C

0625006087

Unavailable

7

CHAIN ROLL D=30MM 125-380 '99

52303053000

Unavailable

8

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

9

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

10

Swingarm pivot M16x1.5

76704037000

Unavailable

11

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

12

Hex. nut DIN 934 M6

0934060003

Unavailable

13

HH collar screw M6x20 TX30

0025060206

Unavailable

14

BOLT TIE-ROD BEARING M14

77404084000

Unavailable

15

WASHER TIE-ROD BEARING M14

77404084010

Unavailable

16

Hex. nut M14x1.5 WS17

77404084120

Unavailable

19

chain glides

76704066000

Unavailable

20

HH collar screw M6x35 TX30

0025060356

Unavailable

21

FOOTREST LEFT RALLY 07

76203040250

Unavailable

22

FOOTREST RIGHT RALLY 07

76203041250

Unavailable

23

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

24

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

25

washer DIN 125 A 10.5

0125100003

Unavailable

26

PIN DIN 0094-3.2X25 NIRO

0094032250

Unavailable

27

Engine brace right

76703106000

Unavailable

28

CROSS MEMBER

76403005040

Unavailable

29

Engine brace left

76703105000

Unavailable

30

ISA collar screw M8x40 ISA45

0035080406S

Unavailable

31

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

32

AH SCREW DIN0912-M10X160

0912101603

Unavailable

33

PAIR OF WASHERS M10 NORDLOCK

50233041100

Unavailable

34

COLLAR NUT M10 WS=13

54630044000

Unavailable

35

RUBBER INSERT

76203005031

Unavailable

36

Bushing

76703008000

Unavailable

37

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

38

Engine protector console cpl.

76712099024

Unavailable

39

LOCK WASHER 8MM

36003014000

Unavailable

40

HH collar screw M8x25

0025080256

Unavailable

1

Frame Rally Electric Orange

76703001000EB

Unavailable

17

Self locking nut M6 - 10

56509064100

Unavailable

18

STEERING HEAD LOCK 08

78003035000

Unavailable
