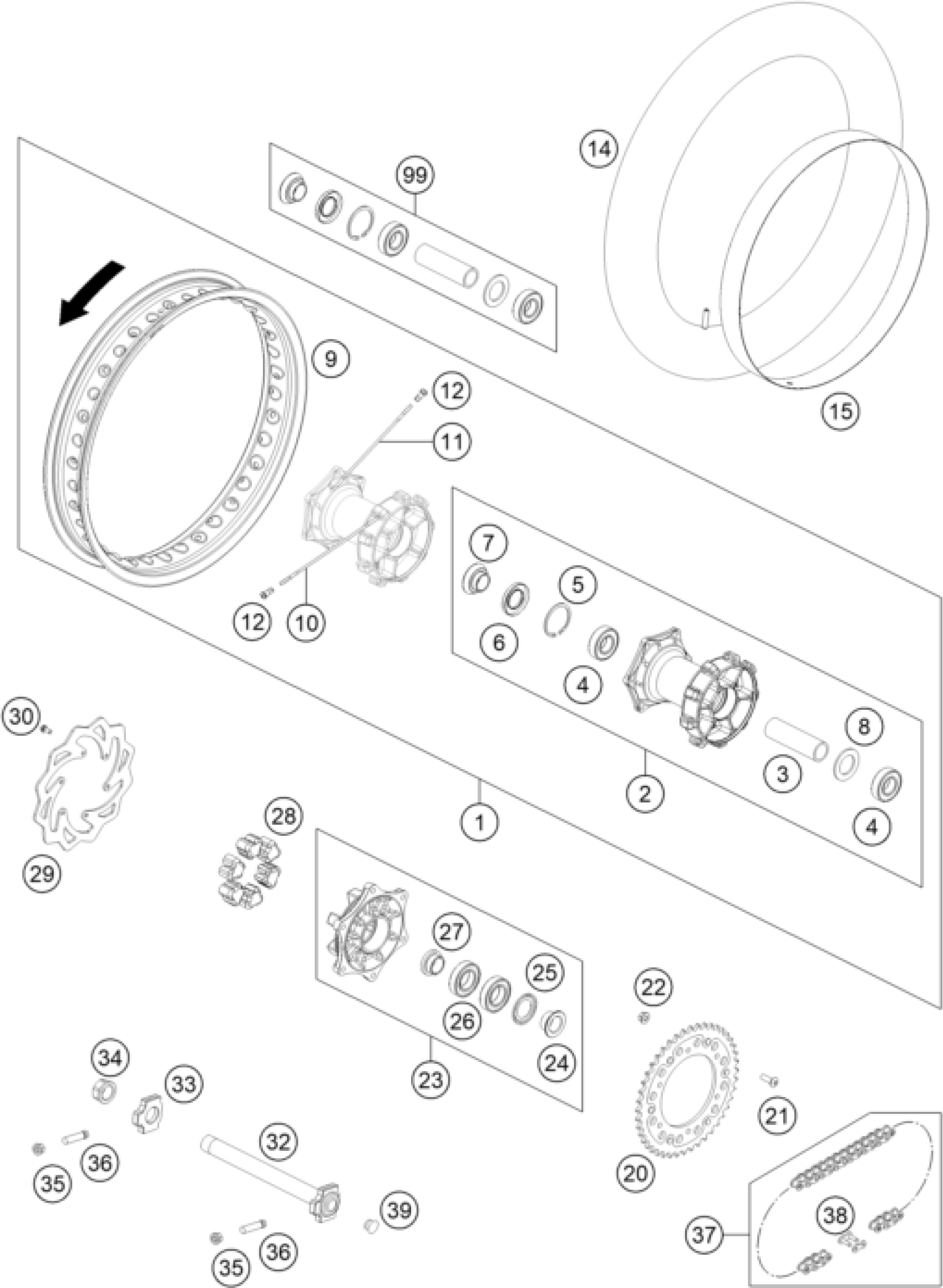

KTM 450 RALLY FACTORY REPLICA 2017 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL RALLY CPL.

76410001044

Unavailable

2

REAR WHEEL HUB CPL.

7531001004491

Unavailable

3

BEARING SPACER TUBE L=106MM 07

75310011000

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

CIRCLIP DIN0472-52X2

0472052200

Unavailable

6

Radial shaft seal 30X52X7

0760305271

Unavailable

7

SPACER BUSH. REAR WHEEL R/S 06

60110013000

Unavailable

8

Spacer ring 03

60010015000

Unavailable

9

RIM 2.50X18''

7621007000030

Unavailable

10

SPOKE M5X215

76410071215

Unavailable

11

SPOKE M5X205

76410071205

Unavailable

12

SPOKE NIPPLE QUADRAX M5

60310072100

Unavailable

14

TUBE 110/100C-18

50310075100

Unavailable

15

Tube protector 18" and 19"

50310073200

Unavailable

20

REAR SPROCKET ORANGE 44-T

5841005104404

Unavailable

20

REAR SPROCKET ORANGE 46 T.

5841005104604

Unavailable

20

REAR SPROCKET ORANGE 48-T

5841005104804

Unavailable

20

REAR SPROCKET ORANGE 49-T

5841005104904

Unavailable

20

REAR SPROCKET ORANGE 50-T

5841005105004

Unavailable

20

REAR SPROCKET ORANGE 51-T

5841005105104

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

22

Self locking nut M8 10.9

54310086200

Unavailable

23

SPROCKET SUPPORT CPL. SILVER

7501005004491

Unavailable

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

Unavailable

25

NILOS RING 6006AV

60110016000

Unavailable

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

Unavailable

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

Unavailable

28

Rubber damping block 91

54610459000

Unavailable

29

REAR BRAKE DISK D=240X4MM

76510060100

Unavailable

30

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

32

WHEEL SPINDLE REAR CPL.

76210081044

Unavailable

33

Chain tension adjuster, right,

60010084000

Unavailable

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

Unavailable

35

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

36

screw M10x1.25x50 WS10

50304040100

Unavailable

37

CHAIN DID 118 LINKS

78010167118

Unavailable

38

RIVETING LINK FOR 78010167118

78010166100

Unavailable

39

Plug SFL16

50210086000

Unavailable

99

REAR WHEEL REP. KIT

75010015000

Unavailable
