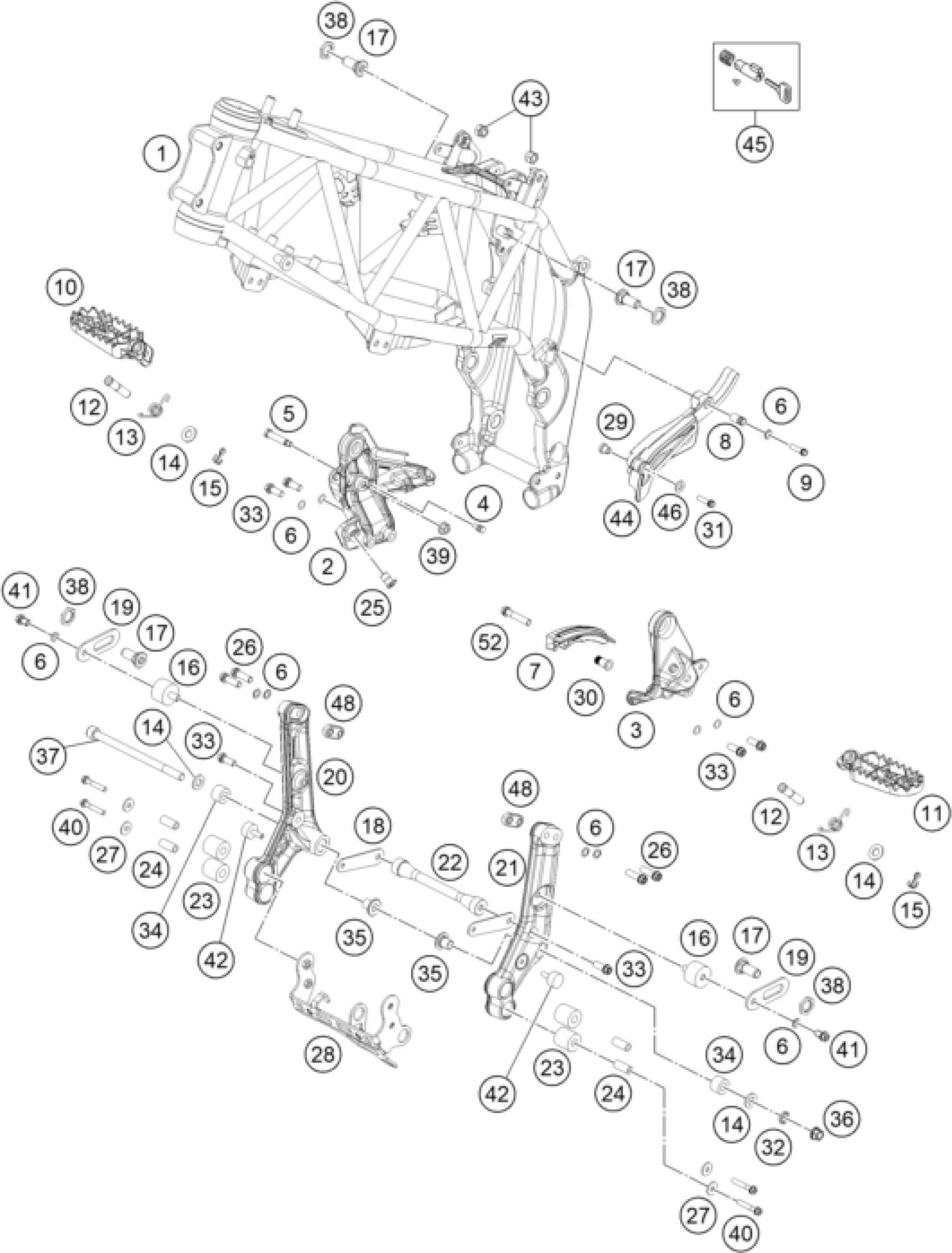

KTM 450 RALLY FACTORY REPLICA 2017 FRAME Diagram

#

Description
Price

11

FOOTREST LEFT RALLY 07

76203040250

Unavailable

12

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

13

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

14

washer DIN 125 A 10.5

0125100003

Unavailable

15

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

16

RUBBER GROMMET 30X20-M8X20

76305062000

Unavailable

17

FIXING SCREW TANK

76407063000

Unavailable

18

RADIATOR STRUT

76403005030

Unavailable

19

FUEL TANK SUPPORT PLATE

76403034000

Unavailable

20

ENGINE SUPPORT RIGHT

76403106000

Unavailable

21

ENGINE SUPPORT LEFT

76403105000

Unavailable

22

CROSS MEMBER

76403005040

Unavailable

23

RUBBER INSERT

76203005031

Unavailable

24

BUSH ENGINE SUPPORT

76203005050

Unavailable

25

PRESS IN NUT

76403044000

Unavailable

26

HH collar screw M8x25

0025080256

Unavailable

27

Washer DIN9021-A 6.4

0021060003

Unavailable

28

ENGINE GUARD BRACKET CPL.

76412099024

Unavailable

29

SPACER BUSHING CHAIN GUARD

76430047005

Unavailable

30

BUSHING

76304266001

Unavailable

31

HH collar screw M6x35 TX30

0025060356

Unavailable

32

PAIR OF WASHERS M10 NORDLOCK

50233041100

Unavailable

33

HH collar screw M8x20

0025080206

Unavailable

34

ELASTOMER BEARING

76203018000

Unavailable

35

COLLAR BUSH FOR ELAST.BEARING

76203019000

Unavailable

36

COLLAR NUT M10 WS=13

54630044000

Unavailable

37

AH SCREW DIN0912-M10X160

0912101603

Unavailable

38

NUT F.TANK BRAKET REAR

60512063050

Unavailable

39

Self locking nut M6 - 10

56509064100

Unavailable

40

HH collar screw M6x35 TX30

0025060356

Unavailable

41

HH SCREW DIN0933-M 8X10

0933080103

Unavailable

42

RUBBER GROMMET 20X11/M6X18 01

58538010000

Unavailable

43

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

44

CHAIN SPROCKET COVER

76403096000

Unavailable

45

STEERING HEAD LOCK 08

78003035000

Unavailable

46

WASHER DIN0125-A 6,4

0125060003

Unavailable

48

NUT PLATE

76403007000

Unavailable

52

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

1

FRAME 450 RALLY ORANGE

7640310100004

Unavailable

2

FOOTREST BRACKET RIGHT

76403139000

Unavailable

3

FOOTREST BRACKET LEFT

76403138000

Unavailable

4

Mechanical Stop

76413050010

Unavailable

5

BOLT

76413050030

Unavailable

6

LOCK WASHER 8MM

36003014000

Unavailable

7

CHAIN SLIDING PART

76404066000

Unavailable

8

BUSHING 8,2X10X20

51103053051

Unavailable

9

HH collar screw M8x35 TX40

0025080356

Unavailable

10

FOOTREST RIGHT RALLY 07

76203041250

Unavailable
