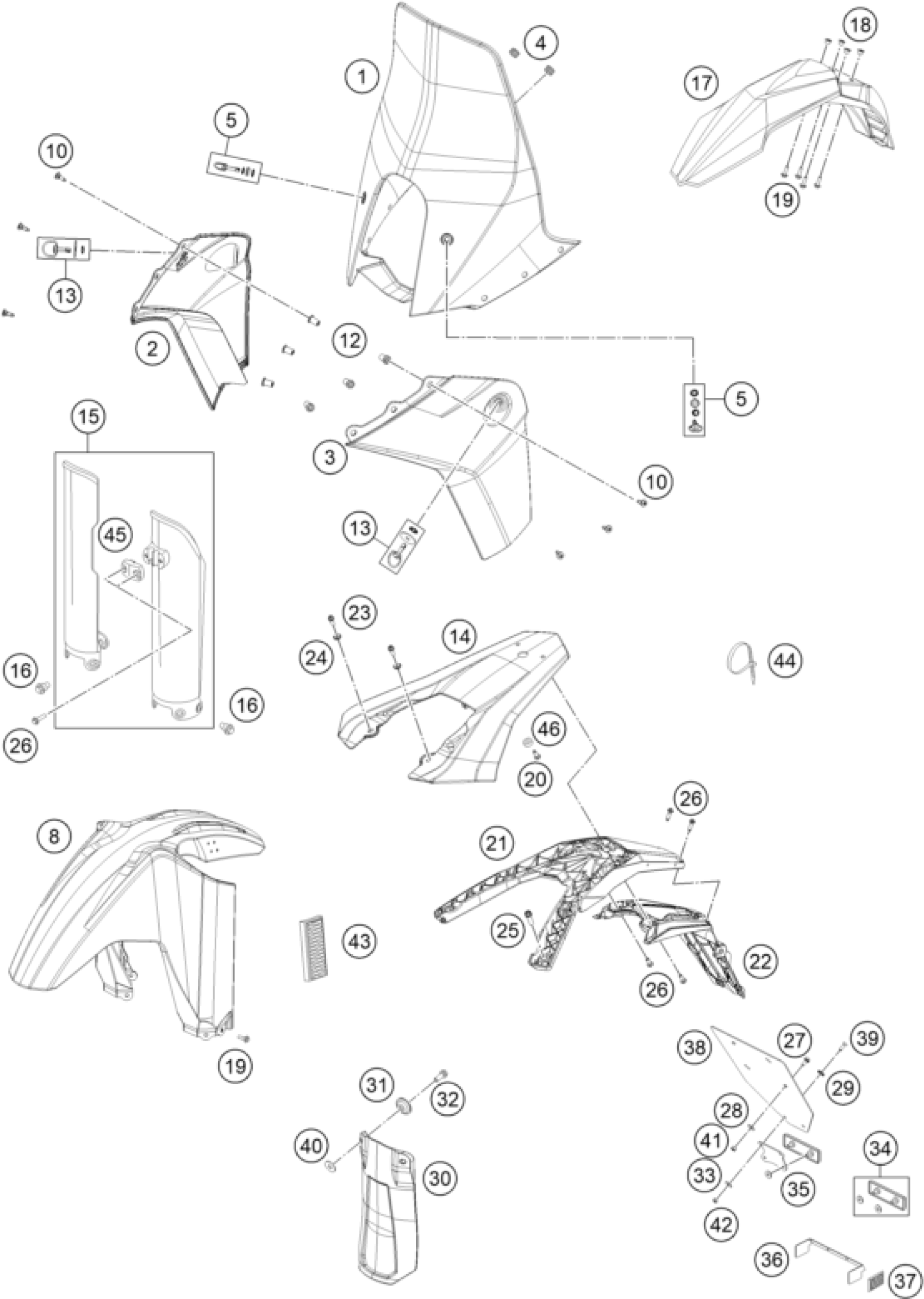

KTM 450 RALLY FACTORY REPLICA 2016 MASK, FENDERS Diagram

#

Description
Price

1

WINDSHIELD

76408008000

Unavailable

3

SPOILER L/S WHITE

7640805000028A

Unavailable

4

rubber grommet D=8mm open

31008060000

Unavailable

5

QUICK RELEASE CONNECTOR CPL.

76408008030

Unavailable

8

FRONT FENDER CPL.

76408010000

Unavailable

10

special screw M5x17

69008021060

Unavailable

12

blind plug nut M5 WN16A

60008008050

Unavailable

13

QUICK RELEASE CONNECTOR CPL.

76408008130

Unavailable

14

REAR PART WHITE

7640801300028A

Unavailable

15

FORK PROTECT. L/S+R/S WHITE 12

5900109410028

Unavailable

16

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

17

FRONT FENDER WHITE

7730821000028

Unavailable

18

SPACER BUSHING 03

54808020000

Unavailable

19

HH collar screw M6x20 TX30

0024060206

Unavailable

20

Special screw K60X30 WS=6

0017060305

Unavailable

21

NUMBER PLATE CARRIER

76408016000

Unavailable

22

NUMBER PLATE LO. PART 08

76508016050

Unavailable

23

HH collar screw M6x12 TX30

0025060126

Unavailable

24

COLLAR BUSHING

76508043050

Unavailable

25

HH collar screw M8x30

0025080306

Unavailable

26

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

27

HH collar screw M6x15 TX30

0024060156

Unavailable

28

WASHER DIN0125-A 6,4

0125060003

Unavailable

29

WASHER 6MM

40006006000

Unavailable

30

Splash protection

76506010100

Unavailable

31

BUCKET

72210079000

Unavailable

32

HH collar screw M6x16 TX30

0025060166

Unavailable

33

WASHER DIN0125-A 5,3

0125050003

Unavailable

34

REFLECTOR RED

58412080000

Unavailable

35

BRACKET FOR REFLECTOR

58412080050

Unavailable

36

BRACKET SIDE REFLECTOR 06

62512081000

Unavailable

2

SPOILER R/S WHITE

7640805100028A

Unavailable

37

SIDE REFLECTOR RED REAR

16512180100

Unavailable

38

license plate mouning plate

60012081200

Unavailable

39

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

40

Washer DIN9021-A 6.4

0021060003

Unavailable

41

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

42

Self locking nut DIN 985 M5

0985050003

Unavailable

43

REFLECTOR YELLOW '99

58412080100

Unavailable

44

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

44

CABLE TIE 200MM

76311093200

Unavailable

45

CLAMP F.SPEED.CABLE D=6MM 12

5900108510028

Unavailable

46

SLEEVE

76408013010

Unavailable
