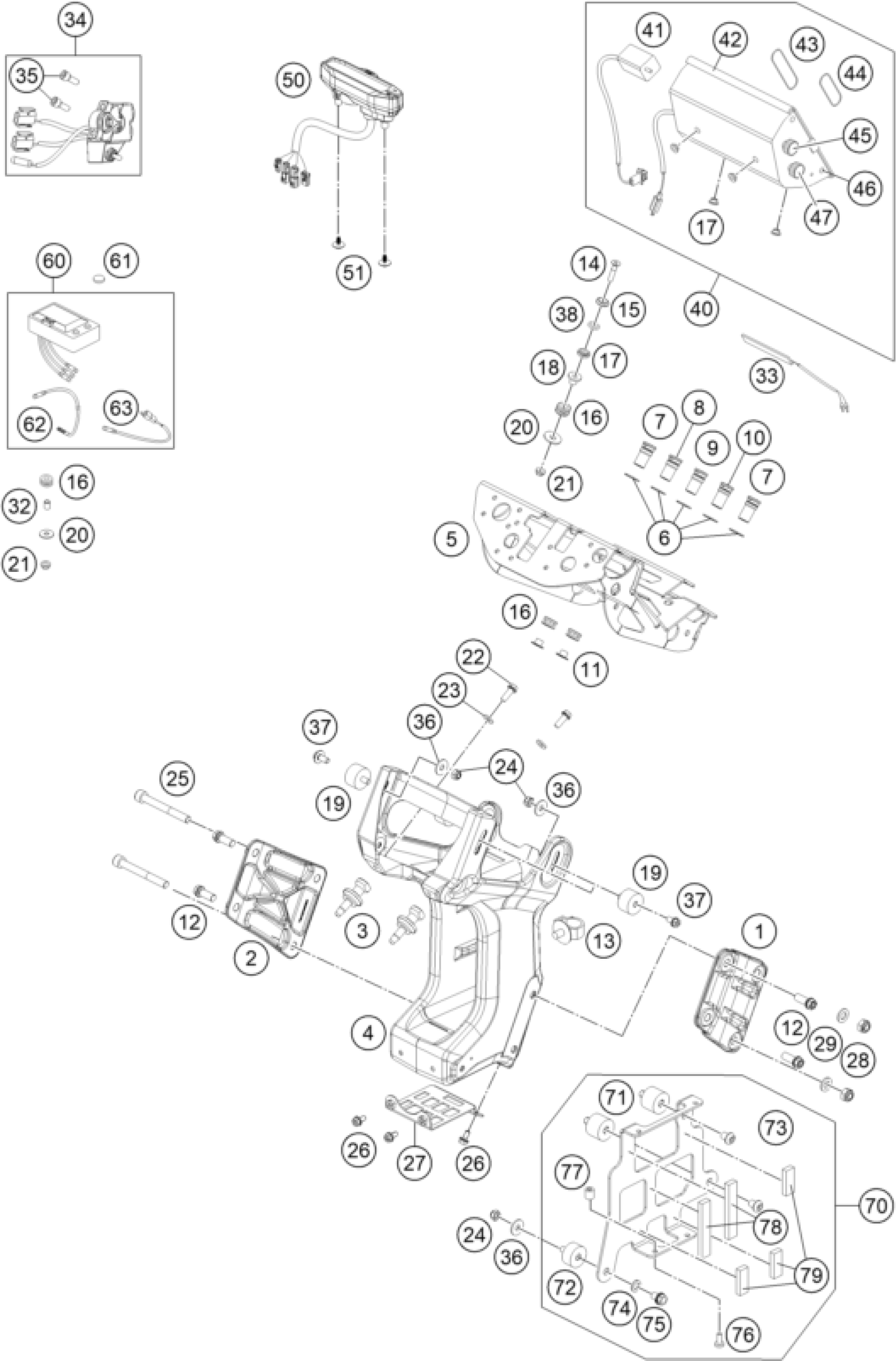

KTM 450 RALLY FACTORY REPLICA 2016 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

72

RUBBER GROMMET 20X10-M6X10

76412084006M01

Unavailable

73

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

74

Pair of washers M6 NORDLOCK

50233041000

Unavailable

75

HH COLLAR SCREW M 6X8 WS=8

0015060083

Unavailable

76

Flat head screw DIN 7985 4.8 M

07985040103

Unavailable

77

SLEEVE EMERGENCY SENDER

76412084002M01

Unavailable

78

FOAM RUBBER 55MM

76412084003M01

Unavailable

79

FOAM RUBBER 27MM

76412084004M01

Unavailable

71

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

1

ATTACHMENT FOR NAVI SUPP. L/S

76412098190

Unavailable

2

ATTACHMENT FOR NAVI SUPP. R/S

76412098180

Unavailable

3

POSITION PIN

76412098043

Unavailable

4

ROADBOOK SUPPORT

76412098040

Unavailable

5

ROAD BOOK CARRIER CPL.

76412091000

Unavailable

6

retaining ring DIN 471 14x1

0471140100

Unavailable

7

INDICATOR LIGHT RESERVE

81214086000

Unavailable

8

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

9

INDICATOR LIGHT LED YELLOW FI

81214083000

Unavailable

10

OIL INDICATOR LIGHT RED

58011025000

Unavailable

11

BUSHING

76408001004

Unavailable

12

HH collar screw M8x20

0025080206

Unavailable

14

FLAT HEAD SCREW DIN7991-M 5X25

0991050253

Unavailable

15

WASHER 6MM

40006006000

Unavailable

16

rubber grommet D=8mm open

31008060000

Unavailable

17

COLLAR BUSHING

50213161000

Unavailable

18

BUSHING

76412091043

Unavailable

19

RUB. GROM. 25X15XTYP B CPL.

76212092031

Unavailable

20

washer DIN 9021 A - 5.3

0021050003

Unavailable

21

Self locking nut DIN 985 M5

0985050003

Unavailable

22

HH collar screw M6x16 TX30

0025060166

Unavailable

23

WASHER DIN0125-A 6,4

0125060003

Unavailable

24

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

25

CYL-SCREW DIN 912-M8X70

0912080706

Unavailable

26

HH collar screw M5x10 TX30

0025050106

Unavailable

27

PLUG BOARD ZSB

76412098050

Unavailable

28

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

29

washer DIN 125 A -8.4

0125080003

Unavailable

32

SPACER BUSHING 6,5 X 8 X 7

58011039000

Unavailable

33

LIGHT DIODE CPL.RALLYE

76212098000

Unavailable

34

ROADBOOK SWITCH CPL.

76412175044

Unavailable

35

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

36

Washer DIN9021-A 6.4

0021060003

Unavailable

37

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

38

O-RING 9X2 VITON

0770090021

Unavailable

40

ROADBOOK CPL. 2008

76212098044

Unavailable

41

ROADBOOK ENGINE CPL. 03

58512074044

Unavailable

70

EMERGENCY SENDER CPL.

76412084033M01

Unavailable

63

ELECTRIC CABLE TRIPMASTER RNS

76412085020

Unavailable

42

PLASTIC COVER FOR ROADBOOK 03

58512074020

Unavailable

43

O-RING FOR ROADBOOK LONG 03

58512074070

Unavailable

44

O-RING FOR ROADBOOK SHORT 03

58512074060

Unavailable

45

ALU-BUTTON TOP FOR ROADBOOK 03

58512074030

Unavailable

46

PLASTIC BUSHING F. ROADBOOK 03

58512074050

Unavailable

47

ALU-BUTTON BASE F. ROADBOOK 03

58512074040

Unavailable

50

Speedometer digital km/h f. 21

77714069600

Unavailable

51

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

60

TRIPMASTER

76412085000

Unavailable

61

BATTERY FOR ICO TRIPMASTER 04

58512085160

Unavailable

62

WHEEL SENSOR TRIPMASTER RNS

76412085010

Unavailable

13

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable
