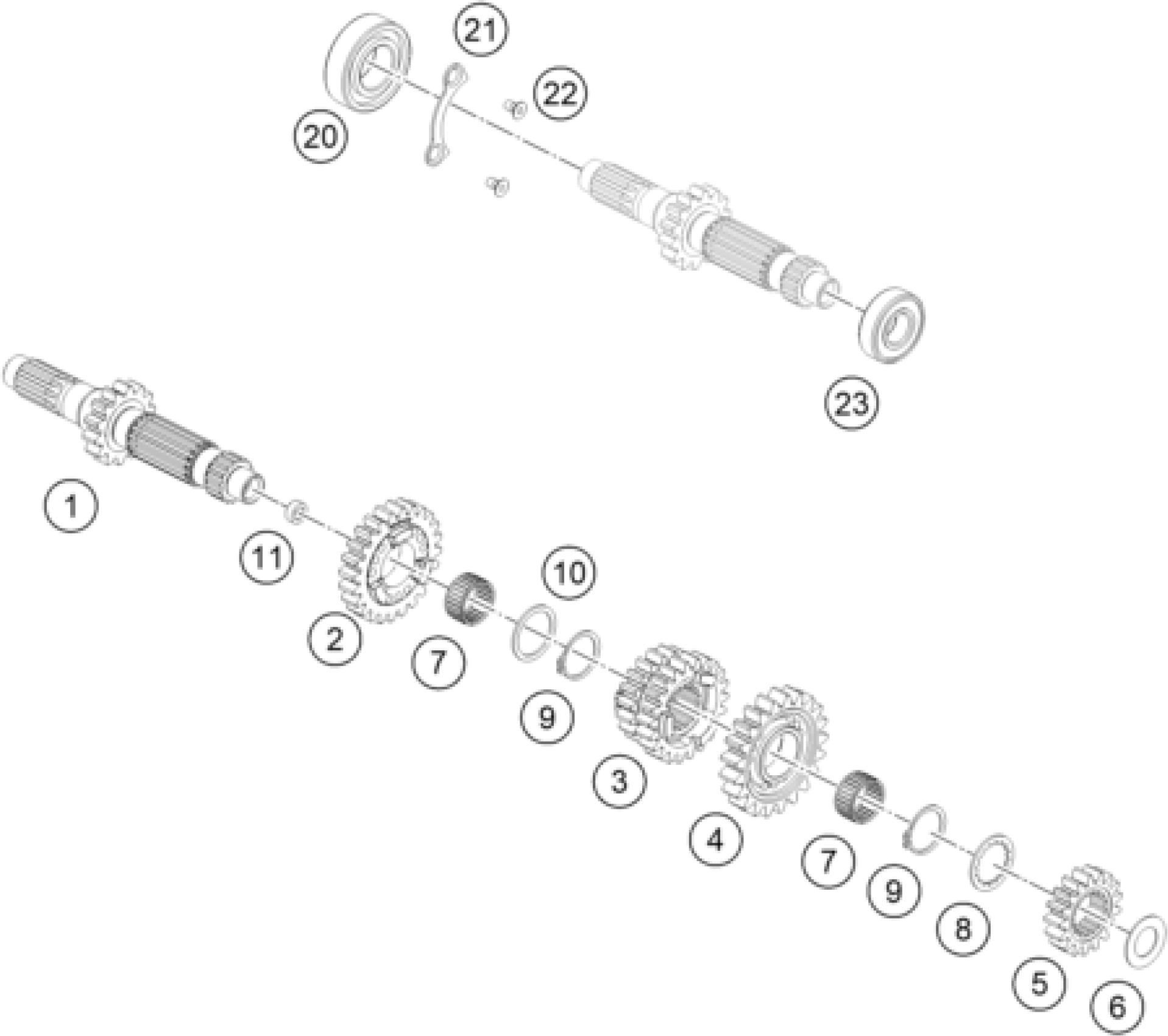

KTM 450 RALLY FACTORY REPLICA 2015 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT

76433001000

Unavailable

2

IDLER GEAR 5.G.

76433005000

Unavailable

3

SLIDING GEAR 3/4 G.

76433003000

Unavailable

5

SOLID GEAR 2.G.

76433002000

Unavailable

6

STOP DISC 17,2X30X1

56033030000

Unavailable

7

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

8

STOP DISK 23 X 32 X 1,5

78033033000

Unavailable

9

CIRCLIP DIN0471-25X1,2

0471250120

Unavailable

10

STOP DISK 26 X 32 X 1,5

78033031000

Unavailable

20

BALL BEARING 6205 C3 NTN

0625062054

Unavailable

21

TAB WASHER BEARING MAIN SHAFT

78033032000

Unavailable

22

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

23

BALL BEARING 6203 RSH C3

0625062036

Unavailable

4

IDLER GEAR 6.G.

76433006000

Unavailable

11

BUSHING

78033001110

Unavailable
