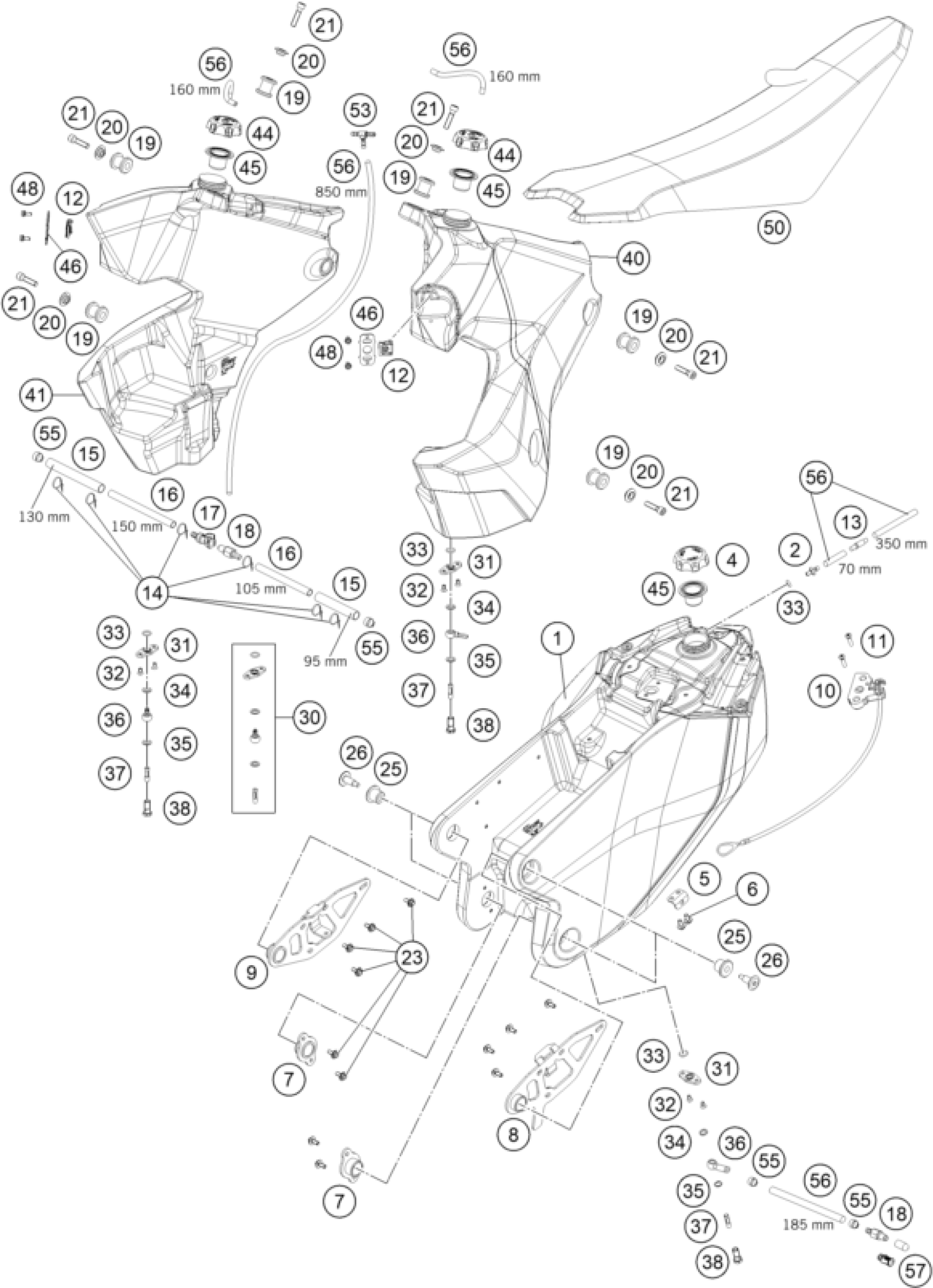

KTM 450 RALLY FACTORY REPLICA 2015 TANK, SEAT Diagram

#

Description
Price

1

REARTANK WHITE

7640701500028A

Unavailable

2

BLEEDER SCREW M6

76407029000

Unavailable

4

FILLER CAP TANK

76307008000

Unavailable

5

STRAP SIDE STAND RUBBER

76407031000

Unavailable

6

HH collar screw M6x13 TX30

0024060136

Unavailable

7

STIFFENERS REARTANK CPL.

76407032000

Unavailable

8

SUPPORT REARTANK LEFT CPL.

76407027000

Unavailable

9

SUPPORT REARTANK RIGHT CPL.

76407028000

Unavailable

10

SEAT LOCK

76407050000

Unavailable

11

Flat head screw DIN7991 M6X20

0991060202

Unavailable

12

Clip

45007040052

Unavailable

19

RUBBER BUSHING

76407061000

Unavailable

20

BUSHING SLEEVE

76407064000

Unavailable

21

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

23

HH collar screw M6x15 TX30

0024060156

Unavailable

25

RUBB.BEAR.BOX 12x24x35 L=24,5

76507066000

Unavailable

26

BEARING SKREW UP

76307060000

Unavailable

30

FUEL CONNECTION CPL. 01

58507008000

Unavailable

31

FUEL FLANGE SHEET 01

58507008050

Unavailable

32

Flat head screw DIN7991 M5X10

0991050102

Unavailable

33

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

34

COPPER GASKET 10,2X14X2 MM 01

0603101420

Unavailable

35

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

36

RING COMPONENT 10/6MM

49138493000

Unavailable

37

FUEL FLANGE-STRAINER 03

58507008010

Unavailable

38

HOLLOW SCREW M10X1X24 RALLY 02

58507025000

Unavailable

40

FUEL TANK CPL. FRONT L/S

7640701300028A

Unavailable

41

FUEL TANK CPL. FRONT R/S

7640701400028A

Unavailable

44

SXS FUEL TANK CAP

SXS03540700

Unavailable

45

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

46

CLIP HOLDING PLATE

76407013041

Unavailable

48

HH collar screw M5x12 TX30

0025050126

Unavailable

50

SEAT RALLY CPL.

76407040000

Unavailable

53

T-connector TS-6 03

60015022000

Unavailable

55

OETIKER HOSE CLAMP 13,3MM

58007117200

Unavailable

56

Hose 5x8mm

58507007001

Unavailable

15

HEAT PROTECTION HOSE

76407030000

Unavailable

16

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

17

CLUTCH F. FUEL HOSE CPC 03

58507010500

Unavailable

18

PLUG F. FUEL HOSE CPC 2003

58507010300

Unavailable

14

CABLE TIE 280MM

76311093280

Unavailable

57

WASH CAP SET

81212016000

Unavailable

57

WASH CAP SET

81212016100

Unavailable

13

VALVE FOR TANK BREATHING 02

57307019000

Unavailable
