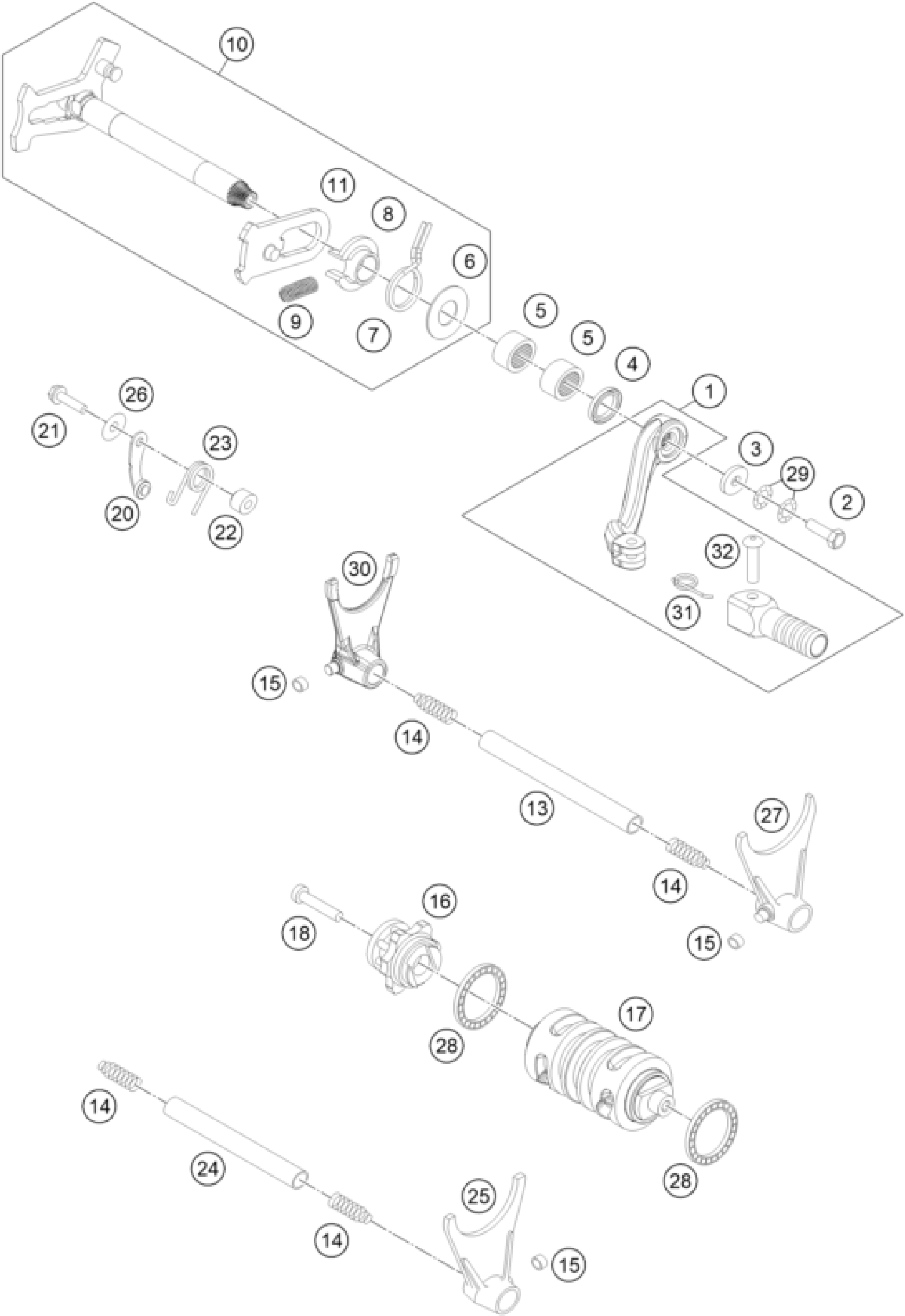

KTM 450 RALLY FACTORY REPLICA 2015 SHIFTING MECHANISM Diagram

#

Description
Price

31

SHIFTING LEVER SPRING 250

54634032100

Unavailable

32

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

1

SHIFT LEVER CPL. RALLY 11

76334031000

Unavailable

2

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

3

STEEL WASHER 6,4X17X3

50232050001

Unavailable

4

radial shaft seal 14x24x6 B

0760142460

Unavailable

5

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

6

STOP DISK 14X30X1

54634050000

Unavailable

7

RETURN SPRING 2,2MM '95

54634014100

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

TENSIONING SPRING 0,8MM

56534013100

Unavailable

10

SHIFT SHAFT CPL.

76434005033

Unavailable

11

SLIDING PLATE

61234008044

Unavailable

13

SHIFT RAIL 11,8X101,5

78034020000

Unavailable

14

PRESSURE SPRING 0,9MM

58038023200

Unavailable

15

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

16

SHIFT DRUM LOCATING ALU CPL.

78134015044

Unavailable

17

SHIFT ROLLER

78034012000

Unavailable

18

AH SCREW DIN6912 M6X30 8.8

0012060303

Unavailable

20

LOCKING LEVER CPL.

78134024044

Unavailable

21

HH collar screw M5x20 TX30

0025050206

Unavailable

22

SLEEVE FOR LOCKING LEVER

54634052300

Unavailable

23

ARRESTING LEVER SPRING

60034023200

Unavailable

24

SHIFT RAIL 11,8X85

78034019000

Unavailable

25

SHIFTING FORK 5./6. GEAR

76434001000

Unavailable

26

washer DIN 9021 A - 5.3

0021050003

Unavailable

27

SHIFTING FORK 2./4. GEAR

76434002000

Unavailable

28

BALL BEARING 61805 C3

0625618050

Unavailable

29

Pair of washers M6 NORDLOCK

50233041000

Unavailable

30

SHIFTING FORK 1./3. GEAR

76434003000

Unavailable
