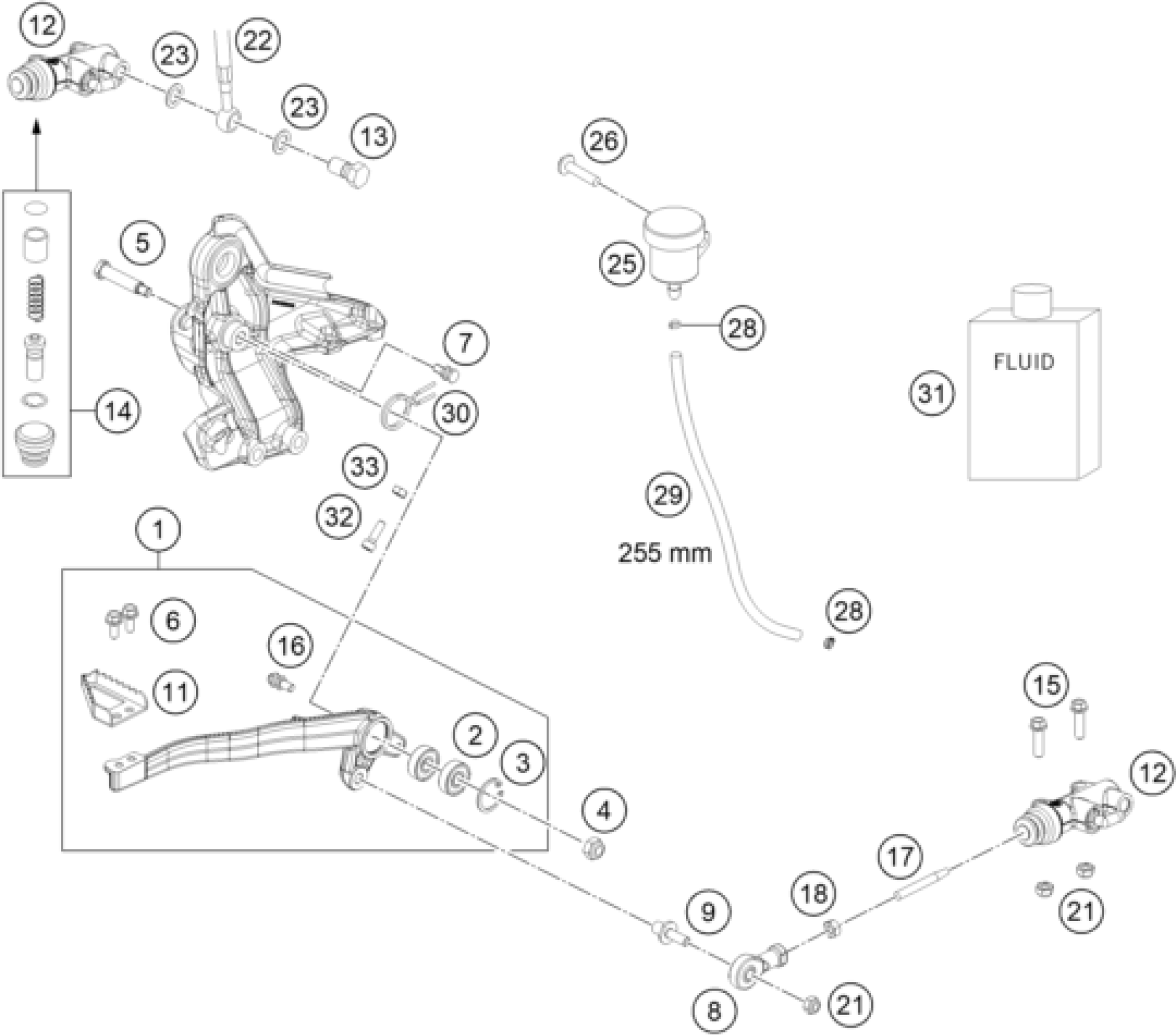

KTM 450 RALLY FACTORY REPLICA 2015 REAR BRAKE CONTROL Diagram

#

Description
Price

1

FOOT BRAKE LEVER CPL.

76413150044

Unavailable

2

Grooved ball bearing 608 2RS C

0625006087

Unavailable

3

CIRCLIP DIN0472-22X1

0472022100

Unavailable

4

Self locking nut M6 - 10

56509064100

Unavailable

5

BOLT

76413050030

Unavailable

6

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

8

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

Unavailable

9

THREADED BOLT

76413050020

Unavailable

11

BRAKE LEVER PEDAL LARGE RALLY

76213051010

Unavailable

12

FOOT BRAKE CYLINDER REAR

76213060000

Unavailable

13

banjo bolt M10x1x19 black

54813020100

Unavailable

14

REPAIR KIT PISTON 13MM

54513150000

Unavailable

15

HH collar screw M6x25 TX30

0025060256

Unavailable

17

PUSH ROD MAIN BRAKE CYLINDER

76203068000

Unavailable

18

Hex. nut DIN 934 M6

0934060003

Unavailable

21

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

22

BRAKE HOSE REAR

76213070000

Unavailable

23

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

24

WASHER DIN0125-A 6,4

0125060003

Unavailable

25

BRAKE FLUID RESERVOIR '89

54513030044

Unavailable

26

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

28

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

29

HOSE FOR BRAKE FLUID RESERVOIR

76213061000

Unavailable

31

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

32

HH COLLAR SCREW M5X25 ISA30

0025050256

Unavailable

33

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

16

STOP PIN

76413050110

Unavailable

30

RETURNSPRING 2MM

61234014000

Unavailable

7

Mechanical Stop

76413050010

Unavailable
