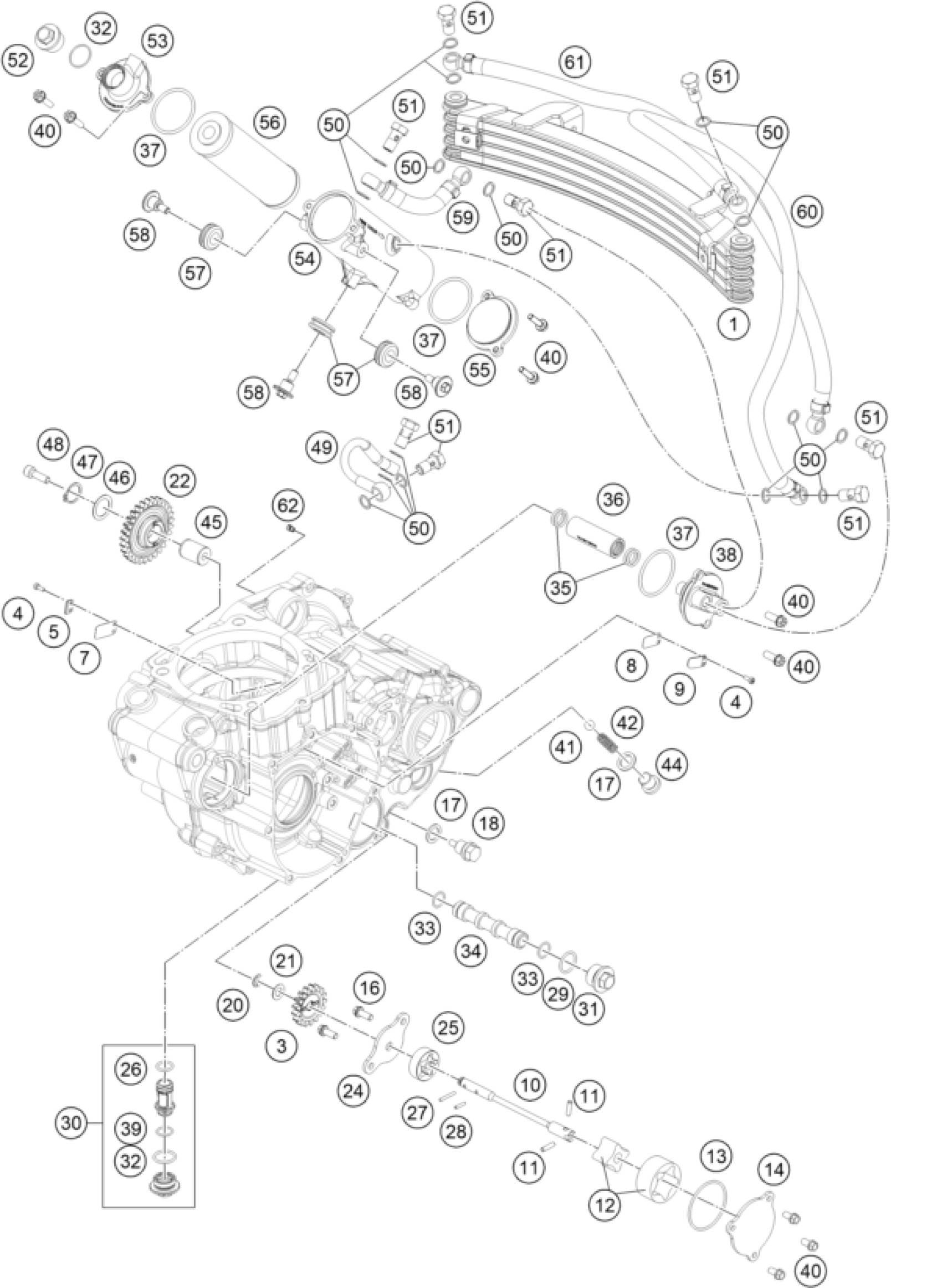

KTM 450 RALLY FACTORY REPLICA 2015 LUBRICATING SYSTEM Diagram

#

Description
Price

3

OIL PUMP GEAR 17 T

78038001017

Unavailable

4

CYLIND.SCREW M3X8 ISO 14580 SS

0458030080

Unavailable

5

STOP SHEET MEMBRANE 07

75030003050

Unavailable

7

MEMBRANE 07

75030003051

Unavailable

10

OIL PUMP SHAFT SP-DP

78138102000

Unavailable

8

MEMBRAN CRANKCASE

81205027003

Unavailable

9

TAB WASHER MEMBRAN CSC

81205027004

Unavailable

17

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

11

needle roller NRB 4x15.8 G2

0402041580

Unavailable

12

ROTOR-SET CPL. 22MM

61238111000

Unavailable

13

O-RING 44,00X2,00 VITON

0770440020

Unavailable

14

OIL PUMP COVER SUCTION PUMP

78038004000

Unavailable

16

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

18

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

20

TAB WASHER DIN6799-RS 6,0

0799060000

Unavailable

21

STOP DISK 8,1 X 15 X 0,5

58038007755

Unavailable

22

IDLER GEAR 1 29Z

78138001029

Unavailable

24

OIL PUMP COVER

78138003000

Unavailable

25

OILPUMP ROTOR 15MM G-164

77038011000

Unavailable

26

O-RING 12X2 VITON GREEN

0770012021

Unavailable

27

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

Unavailable

28

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

Unavailable

59

OIL PIPE L=105MM

76438053000

Unavailable

60

OIL PIPE L=615MM

76438054000

Unavailable

61

OIL PIPE L=696MM

76438055000

Unavailable

49

OIL JET

76438034000

Unavailable

35

O-RING 12X2 VITON GREEN

0770012021

Unavailable

52

PLUG M20X1,5 WS=13

59038017000

Unavailable

53

COVER OIL FILTER 1

76438141000

Unavailable

54

HOUSING OI FILTER

76438143000

Unavailable

55

COVER OIL FILTER 2

76438142000

Unavailable

58

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

62

OIL JET ''60'' M4

80030058060

Unavailable

56

OIL FILTER

83538005000

Unavailable

29

O-RING 17,17X1,78 GLO

0770020170

Unavailable

30

OIL SCREEN CPL.

78138015001

Unavailable

31

PLUG M20X1,5 WS=13

59038017100

Unavailable

32

O-RING 17X2,5

0770017025

Unavailable

33

O-RING 12,5X1,5 VITON V75

07701250151

Unavailable

34

OIL SCREEN

59038016100

Unavailable

36

PIPE OIL LINE CONNECTOR

76438035000

Unavailable

37

O-RING 39,34X2,62

07700390261

Unavailable

38

OIL LINE CONNECTOR

76438050000

Unavailable

39

O-RING 12,5X1,5 NBR

0770125015

Unavailable

41

BALL DIN5401-9

0401090003

Unavailable

42

PRESSURE SPRING L=25MM D=1MM

58038023300

Unavailable

40

HH collar screw M5x16 TX30

0025050166

Unavailable

44

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

45

BUSHING PIN

78040028000

Unavailable

46

SHIM WASHER DIN0988-17X24X0,5

0988172405

Unavailable

47

CIRCLIP DIN0471-17X1

0471170010

Unavailable

48

AH SCREW DIN0912-M 6X20 SS

0912060208

Unavailable

57

RUBBER SLEEVE D=12MM

41001052000

Unavailable

50

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

51

HOLLOW SCREW M10 X 1

54313025000

Unavailable

1

OIL RADIATOR

76438051000

Unavailable
