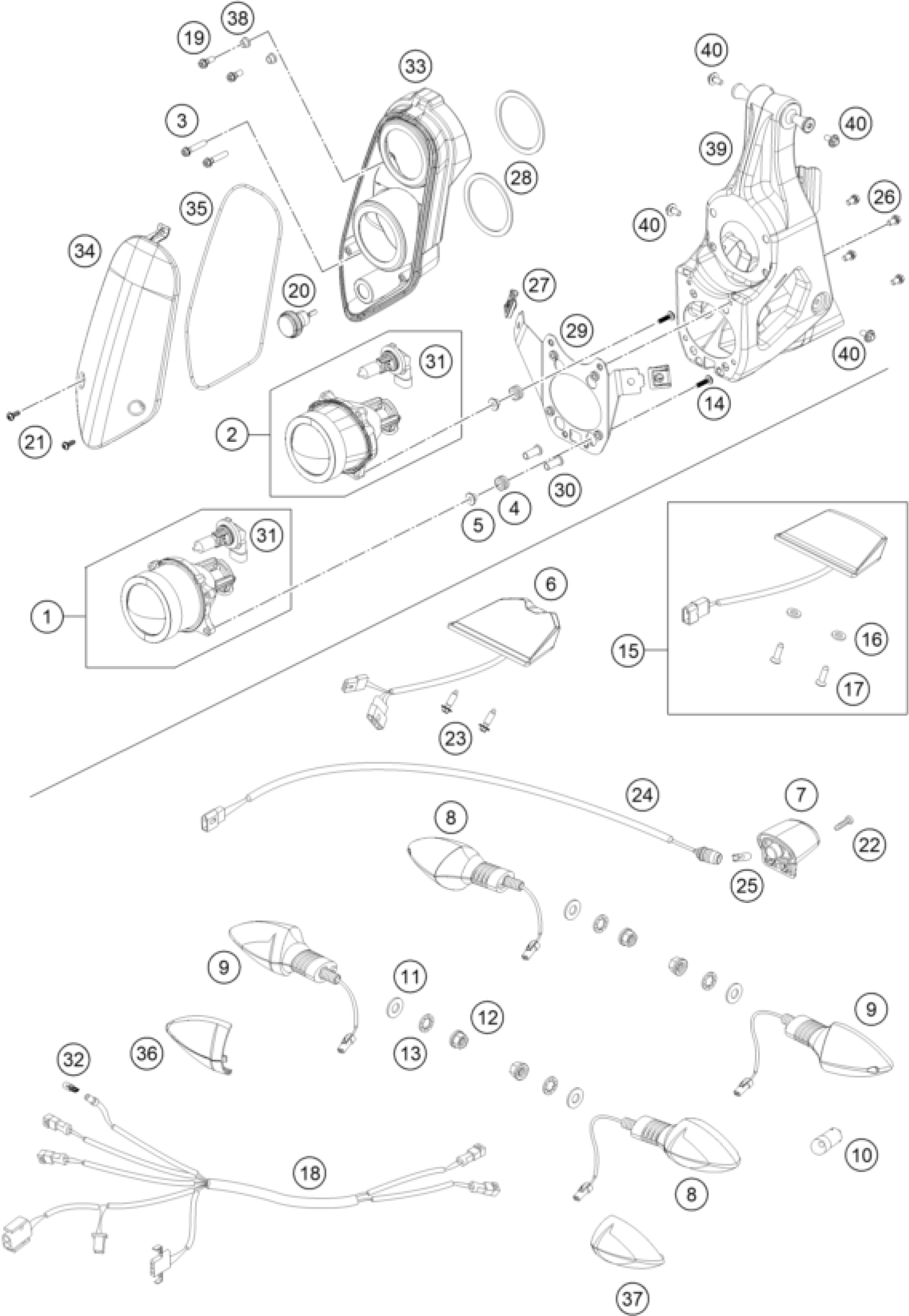

KTM 450 RALLY FACTORY REPLICA 2015 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEADLIGHT HIGH BEAM

76414001000

Unavailable

2

HEADLIGHT LOW BEAM 07

76214002000

Unavailable

3

HH collar screw M6x30 TX30

0025060306

Unavailable

4

rubber grommet D=8mm open

31008060000

Unavailable

5

BUSHING

76408001004

Unavailable

6

REAR LIGHT

76514040000

Unavailable

7

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

8

FLASHER CPL.FRONT L/S REAR R/S

78114025000

Unavailable

9

FLASHER CPL.FRONT R/S REAR L/S

78114026000

Unavailable

10

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

11

washer DIN 125 A 10.5

0125100003

Unavailable

12

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

13

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

15

ADDITIONAL REAR LIGHT CPL.

76314040044

Unavailable

16

WASHER 5,3X12X0,5

77332036004

Unavailable

17

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable

18

WIRING HARNESS FLASHER

76411080000

Unavailable

19

HH collar screw M6x12 TX30

0025060126

Unavailable

37

FLASHER LENS FRO.L/S-REAR R/S

78114027000

Unavailable

26

HH collar screw M6x10 TX30

0025060106

Unavailable

27

Clip

45007040052

Unavailable

14

EJOMAT PT SCREW 50X20

76414003002

Unavailable

33

FRONTLIGHT MASK

76408001000

Unavailable

35

GASKET F. AIRBOX

69006001060

Unavailable

34

STONE GUARD

76412079000

Unavailable

38

SLEEVE

76408001002

Unavailable

39

LIGHT SUPPORT STRUCTURE ASSY

76408003000

Unavailable

22

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

25

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

28

CELLULAR RUBBER

76408001005

Unavailable

29

FRONTLIGHT MASK HOLDER ASSY

76408004010

Unavailable

30

BUSH

76408001003

Unavailable

31

BULB HB3

76414003001

Unavailable

32

BULB 12V 2,3W (W2X4,6D)

49111425200

Unavailable

36

FLASHER LENS L/S R/S TRANSP.

78114028000

Unavailable

24

WIRING HARN. LIC. PLATE ILLUM.

76511078000

Unavailable

20

POSITION LIGHT

76414004000

Unavailable

21

EJOT PT screw K50x14

0081050141

Unavailable

40

HH collar screw M6x13 TX30

0024060136

Unavailable

23

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable
