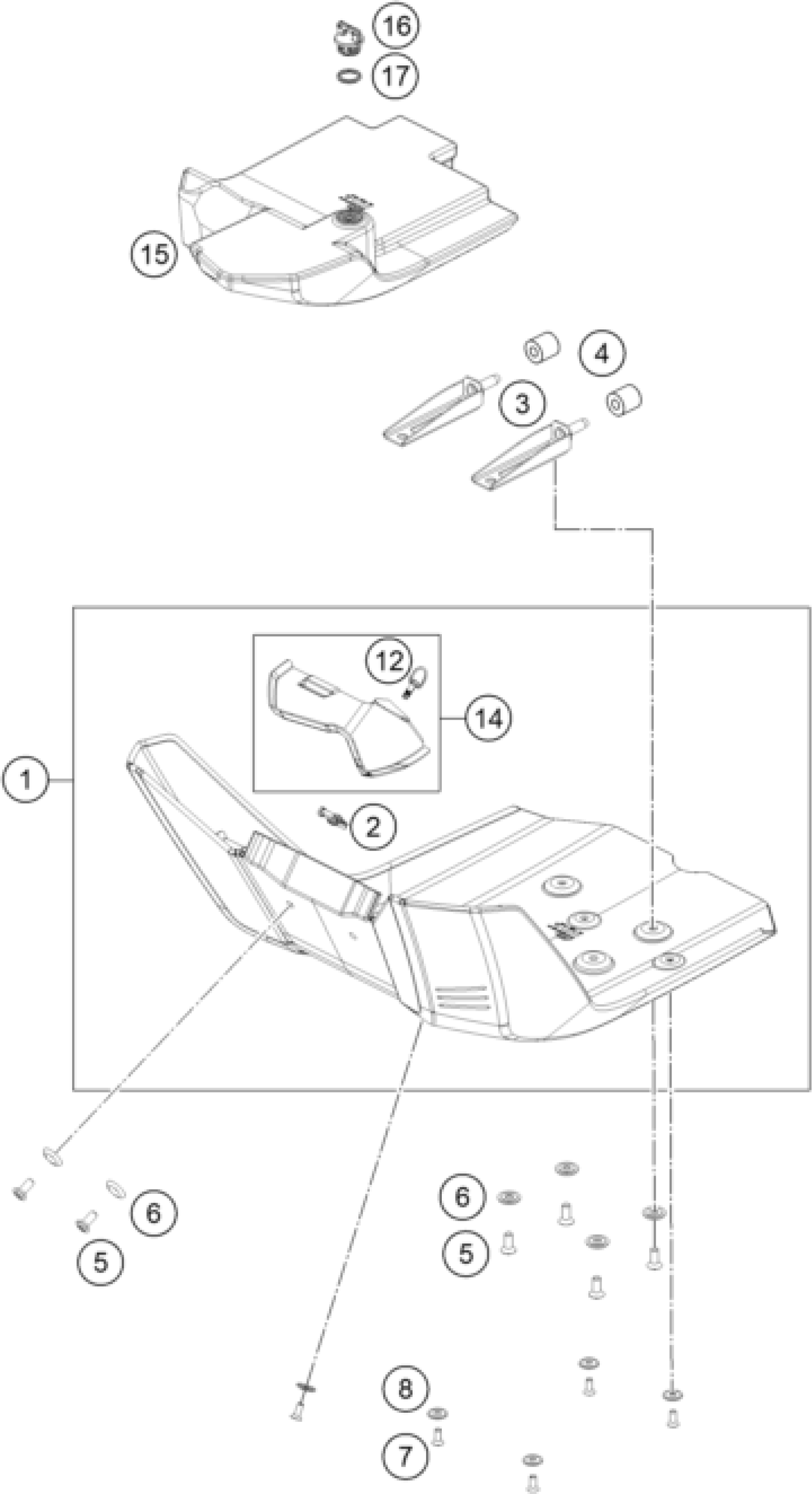

KTM 450 RALLY FACTORY REPLICA 2015 ENGINE GUARD Diagram

#

Description

Price

1

ENGINE GUARD WITH TOOL CASE

76412099140

Unavailable

3

ENGINE GUARD BRACKET REAR CPL.

76412099010

Unavailable

5

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

Unavailable

6

SPECIAL WASHER ALU 8 X 24 MM

58303061000

Unavailable

7

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

14

COVER TOOL CASE CPL.

76412099142

Unavailable

16

Oil filler cap cmpl. M24x3

79430020033

Unavailable

17

O-RING 19,00X3,00 NBR

0770191015

Unavailable

8

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

Unavailable

12

Quick lock

45007040051

Unavailable

15

WATER CANISTER

76412099000

Unavailable

4

RUBBER INSERT

76203005031

Unavailable

2

Clip

45007040052

Unavailable
