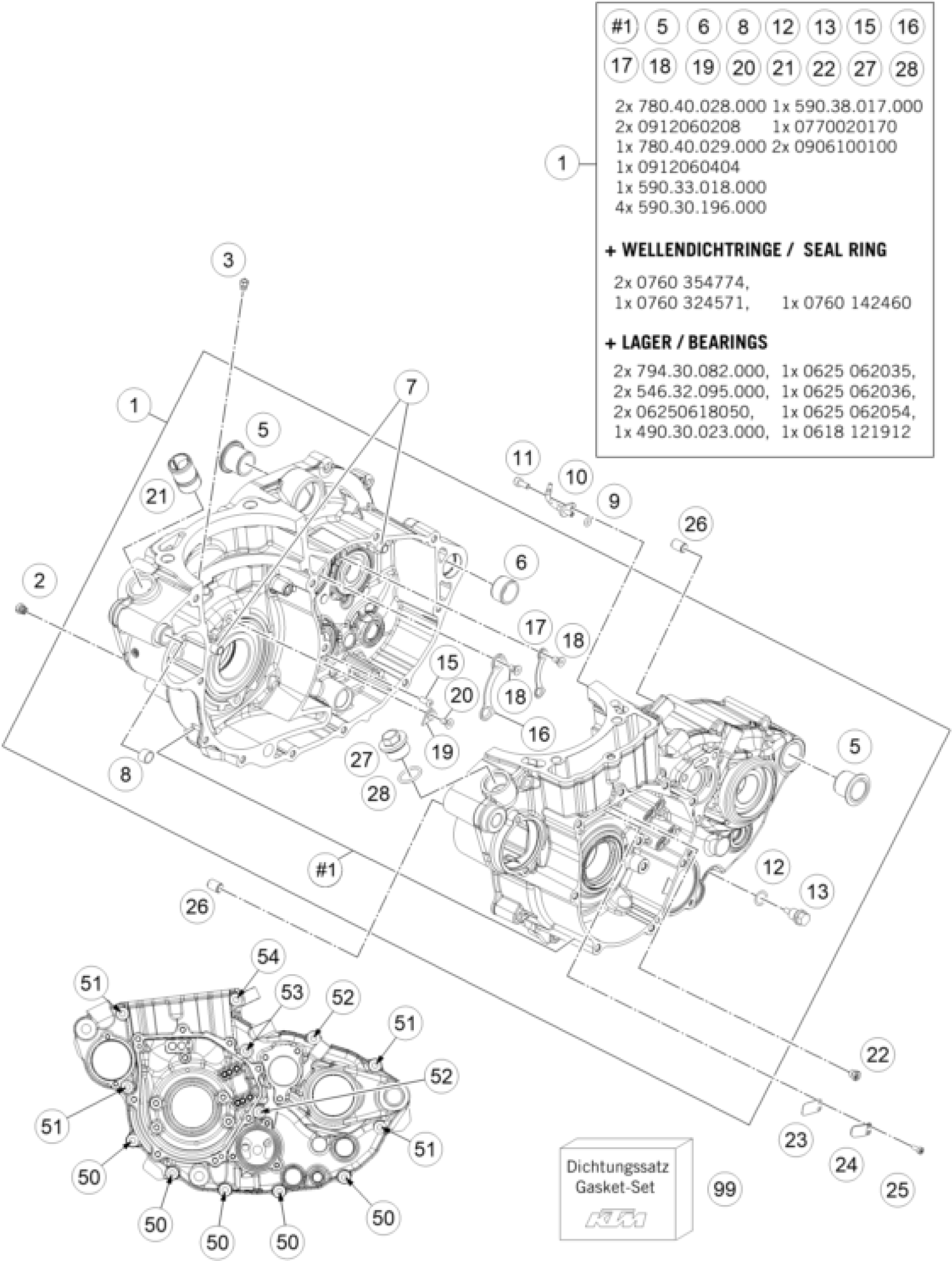

KTM 450 RALLY FACTORY REPLICA 2015 ENGINE CASE Diagram

#

Description
Price

26

dowel sleeve 6x8x11.5

59030023000

Unavailable

1

ENGINE CASE CPL.

76430000033

Unavailable

2

MAIN JET 145

57031523145

Unavailable

3

OIL JET 90 M5

60030063190

Unavailable

5

CASE BUSH

75030010100

Unavailable

6

DOWEL 21X12 03

54830027000

Unavailable

7

dowel sleeve 6x8x11.5

59030023000

Unavailable

8

DOWEL 17 X 13 X 12

51030026100

Unavailable

9

O-RING 3,5X2,00 NBR

0770035020

Unavailable

10

OIL JET ANGLED 70

81230064000

Unavailable

11

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

12

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

13

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

15

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

Unavailable

16

TAB WASHER BEARING MAIN SHAFT

78033032000

Unavailable

17

TAB WASHER BEARING COUNT.SHAFT

78033132000

Unavailable

18

INT. TORX FLAT HEAD M5X12 T25

0019050121S

Unavailable

50

HH collar screw M6x40 TX30

0025060406

Unavailable

51

HH collar screw M6x60 TX30

0025060606

Unavailable

52

HH COLLAR SCREW M6X75 TX30

0025060756

Unavailable

53

HH COLLAR SCREW M6X80 TX30

0025060806

Unavailable

54

HH COLLAR SCREW M6X85 TX30

0025060856

Unavailable

99

GASKET SET 450/500 EXC 12

78130099000

Unavailable

19

RETAINING PLATE F. CS BEARING

75030085000

Unavailable

20

hex lobe countersunc screw M5x

0019050106S

Unavailable

21

SCREW IN NOZZLE M20X1,5

58030010200

Unavailable

22

JET 60 DELLORTO M6X0,75

59030054000

Unavailable

27

PLUG M20X1,5 WS=13

59038017100

Unavailable

28

O-RING 17X2,5

0770017025

Unavailable

23

MEMBRAN CRANKCASE

81205027003

Unavailable

24

TAB WASHER MEMBRAN CSC

81205027004

Unavailable

25

CYLIND.SCREW M3X8 ISO 14580 SS

0458030080

Unavailable
