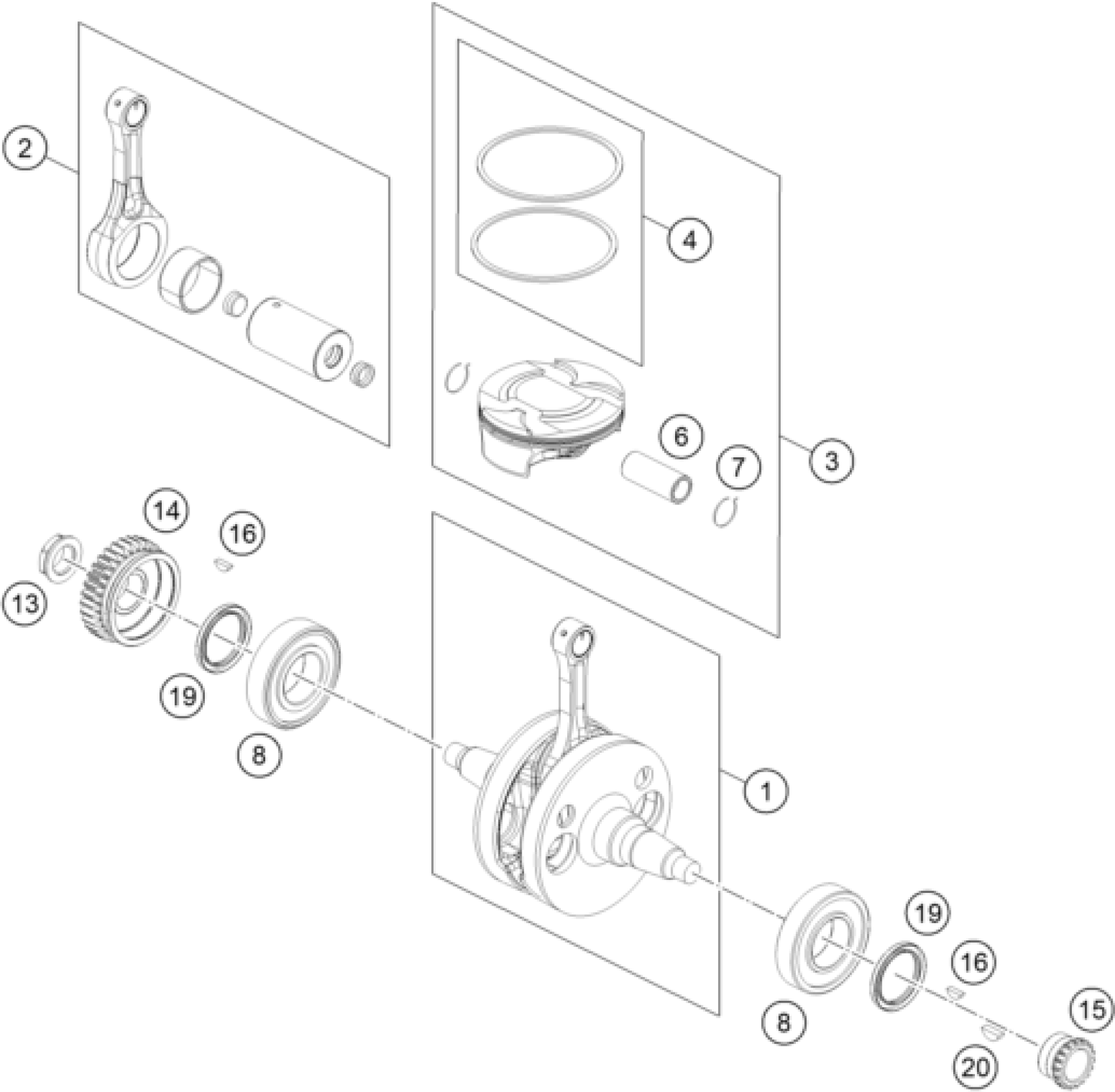

KTM 450 RALLY FACTORY REPLICA 2015 CRANKSHAFT, PISTON Diagram

#

Description

Price

1

CRANKSHAFT CPL.

76430218000

Unavailable

2

CON. ROD. REP. KIT

76430015044

Unavailable

3

PISTON I

76430007000 I

Unavailable

4

PISTON RING SET

76430031044

Unavailable

6

PISTON PIN

76430033000

Unavailable

7

RETAINING RING PISTON PIN

76430074000

Unavailable

8

CYLINDER ROLLER BEARING NJ207

79430082000

Unavailable

13

NUT PRIMARY WHEEL M20X1,5

78030029200

Unavailable

14

PRIMARY GEAR

78132000032

Unavailable

15

TIMING GEAR 18T.

78036014200

Unavailable

16

WOODRUFF KEY DIN6888-3X3,7

0888030037

Unavailable

19

SHAFT SEAL RING 35X47X7 VITON

0760354774

Unavailable

20

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable
