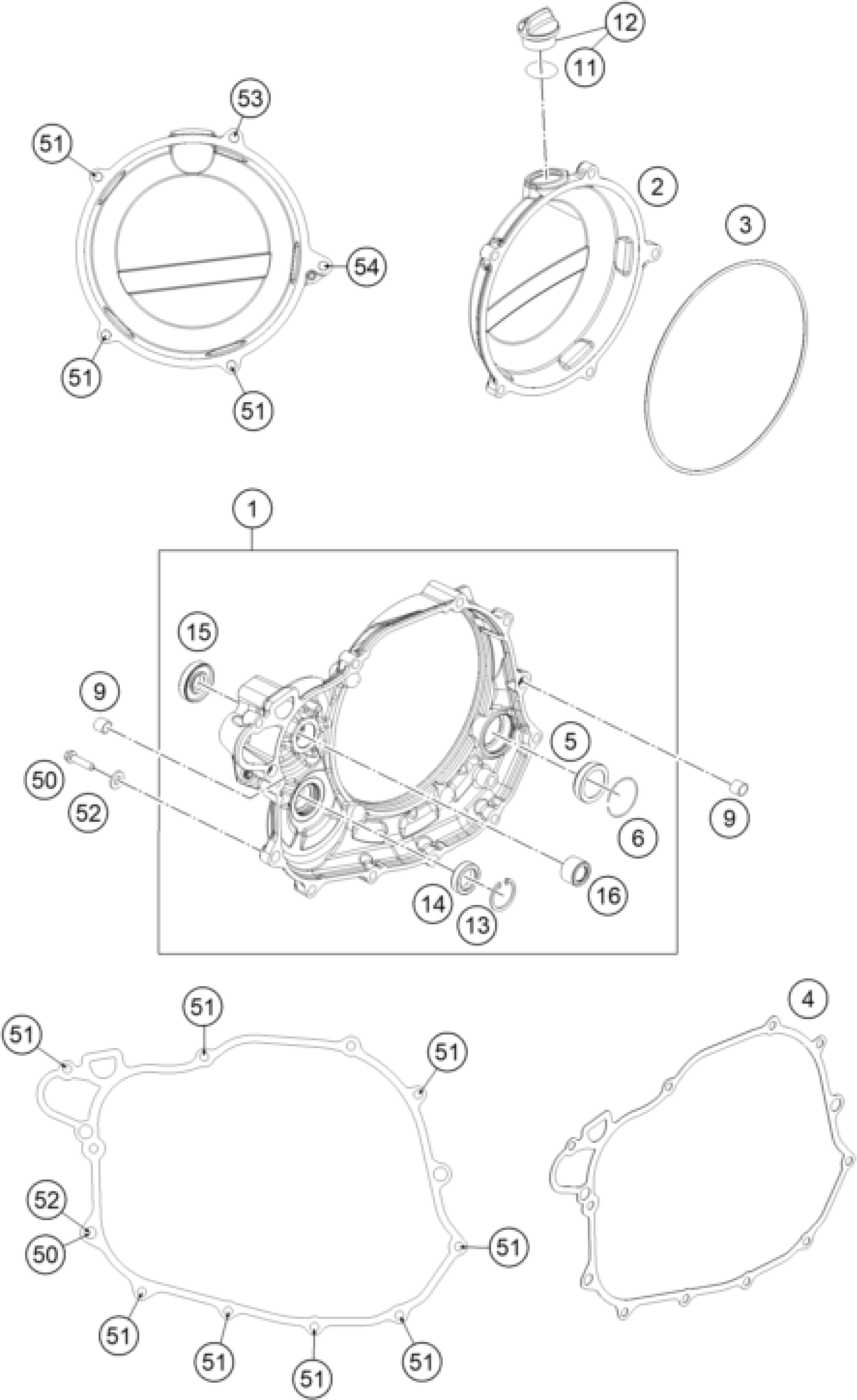

KTM 450 RALLY FACTORY REPLICA 2015 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.

76430001044

Unavailable

2

CLUTCH COVER OUTSIDE

7813002600015

Unavailable

3

GASKET - CLUTCH OUTER COVER

78130027000

Unavailable

4

CLUTCH COVER GASKET

78130125000

Unavailable

5

OIL LEVEL GLASS VITON

78030095100

Unavailable

6

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

9

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

11

o-ring 18.00x2.00 NBR70

0770180020

Unavailable

12

oil plug cpl. M24x3

58030020100

Unavailable

14

radial shaft seal 14x24x6 B

0760142460

Unavailable

15

SHAFT SEAL RING 12X30X7 PTFE

0760123073

Unavailable

16

NEEDLE BUSH NK1212

0618121912

Unavailable

50

LOCATING SCREW

78030080000

Unavailable

51

HH collar screw M6x25 TX30

0025060256

Unavailable

52

CU-SEAL RING 8 X 14 X 3

58030081000

Unavailable

53

HH collar screw M6x55 TX30

0025060556

Unavailable

54

HH collar screw M6x60 TX30

0025060606

Unavailable

13

CIRCLIP DIN0472-24X1.2

0472024120

Unavailable
