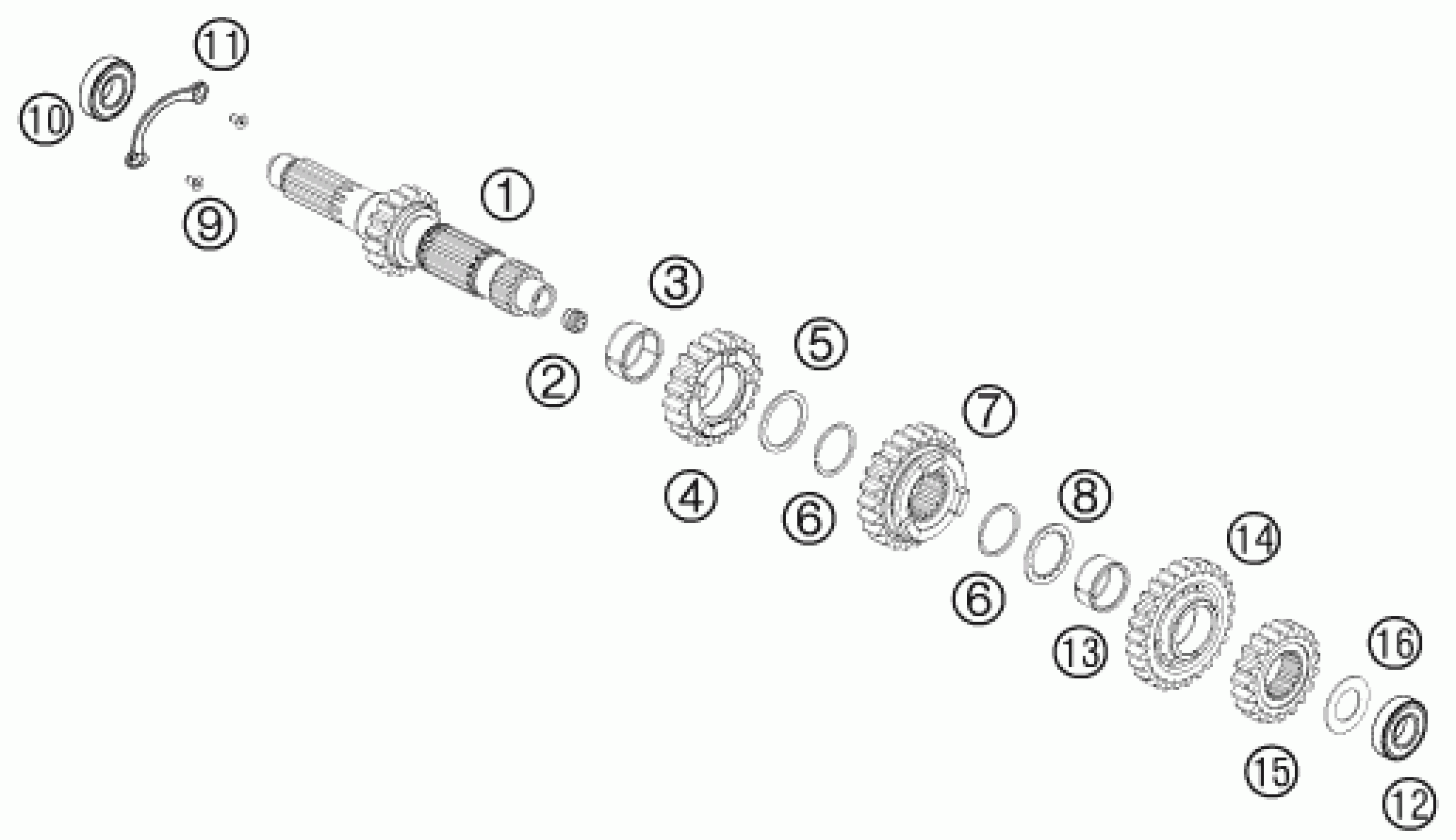

KTM 450 RALLY FACTORY REPLICA 2014 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

1

MAIN SHAFT

77333301000M01

Unavailable

2

GUIDE BUSHING

77333001160

Unavailable

3

NEEDLE BEAR.K 24X28X13 DIVIDED

0405242813G

Unavailable

4

IDLER GEAR 3 G

77333303000M01

Unavailable

5

STOP DISK 26 X 32 X 1,5

78033031000

Unavailable

6

CIRCLIP SW25

0417025000

Unavailable

7

SLIDING GEAR 4.G

77333304000M01

Unavailable

8

STOP DISK 23 X 32 X 1,5

78033033000

Unavailable

9

INT TORX FLAT HEAD M5X10 10.9

0019050106

Unavailable

10

BALL BEARING 6205 C3 NTN

0625062054

Unavailable

11

BUSHING RETAINING PLATE

77333022100

Unavailable

12

BALL BEARING 6203 RSH C3

0625062036

Unavailable

13

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

14

IDLER GEAR 5G

77333305000M01

Unavailable

15

SOLID GEAR

77333302000M01

Unavailable

16

STOP DISC 17,2X30X1

56033030000

Unavailable
