Partiron

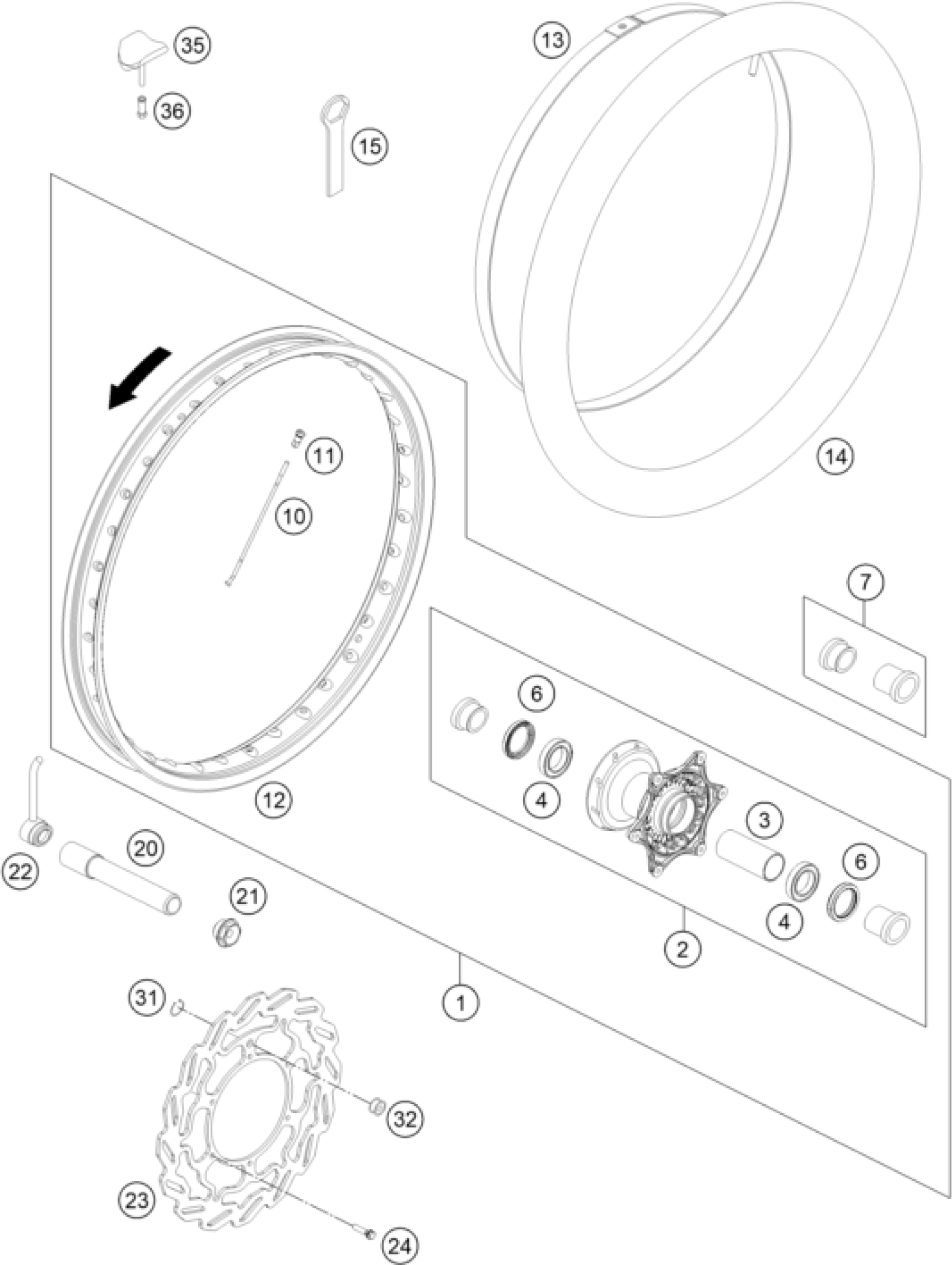

KTM 450 RALLY FACTORY REPLICA 2014 FRONT WHEEL Diagram

#

Description
Price

22

FRONT AXLE PULL 26MM 04

54809081060

Unavailable

1

FRONTWHEEL CPL.1,6X21EXCEL

7630900104430

Unavailable

2

FRONT HUB CPL. 08

75309010044

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

SPACER BUSHING FRO. WHEEL 30MM

76209013044

Unavailable

10

SPOKE M4,5x226-21'' 08

78009174226

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072100

Unavailable

12

RIM 1,6''X21'' EXCEL SXS

7730907000030

Unavailable

13

Tube protector 21"

50309073000

Unavailable

14

Hose 21"

50309075000

Unavailable

15

RING WRENCH 32MM

76212060032

Unavailable

20

WHEEL SPIN.FR. D=26 M24x1,5 07

77309081000

Unavailable

21

COLLAR SCREW FRONT AXLE WS32

76209082000

Unavailable

23

BRAKE DISC FRONT 07

58509060000

Unavailable

24

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

31

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

32

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

35

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

36

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable
