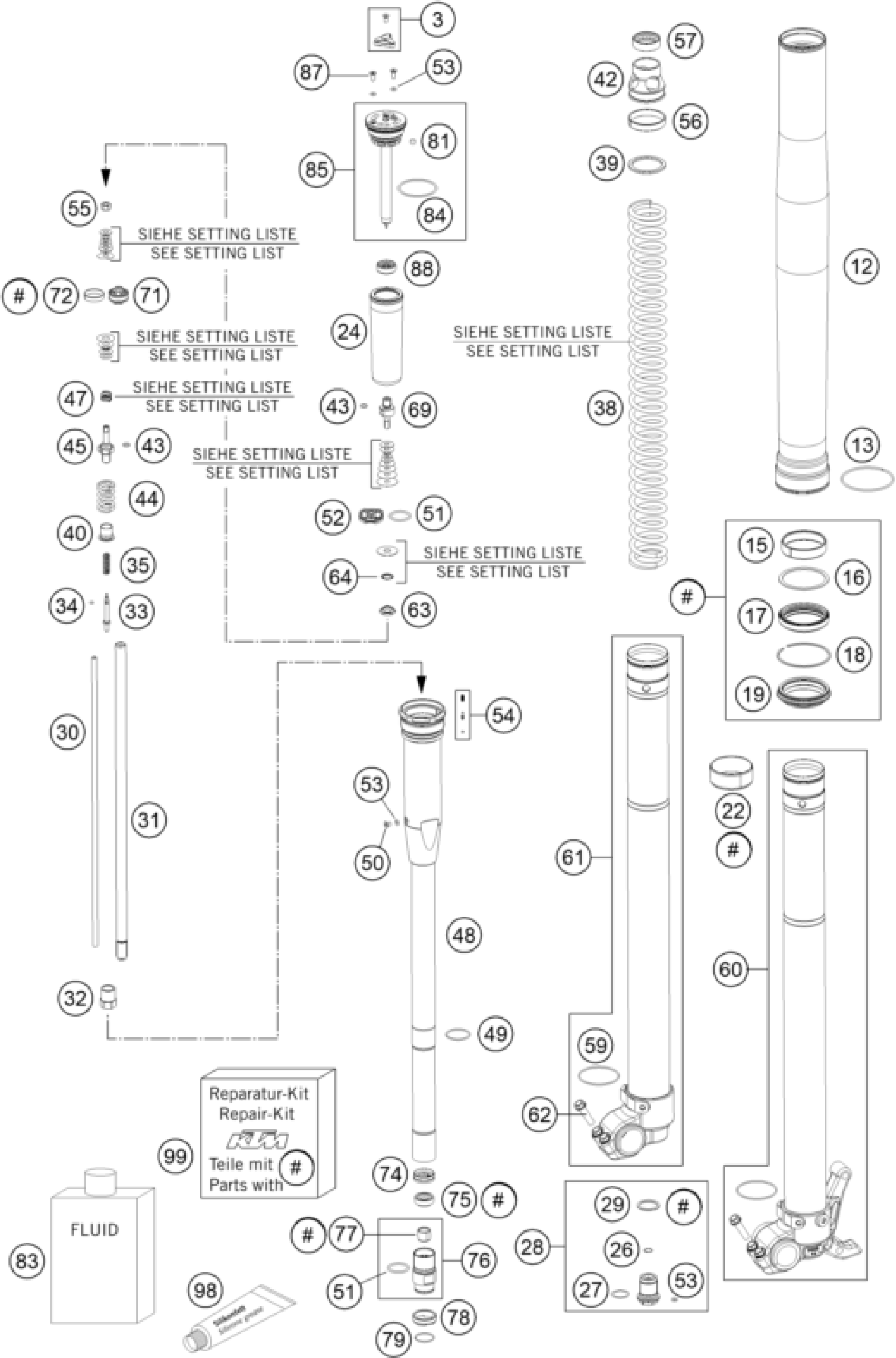

KTM 450 RALLY FACTORY REPLICA 2014 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

3

Adjuster compression cpl.

48600811S

Unavailable

12

Fork outer tube 49,13x577 dt54

48600761

Unavailable

13

Round-wire snap ring 48x2

48600016

Unavailable

15

Guide bushing 48x52x12

48601009

Unavailable

16

Supportwasher 50x57,6x1,5

48600013

Unavailable

17

Shaft seal SKF 48x57,9x11,4 re

48601179

Unavailable

18

Snap ring SB58x1,5 acc drawing

48600070

Unavailable

19

Dirt scarper SKF 48mm red

48601178

Unavailable

22

Guide bushing 47x49x20

48601008

Unavailable

24

Membrane 11,2x37x112

48600281

Unavailable

26

O-ring 9,5x1,5 NBR70 yellow

48600301

Unavailable

27

O-ring 17x2 70 Sh NBR black

46810811

Unavailable

28

SCREW BUSH M20X1 L=33 CPL.

48600280S

Unavailable

29

Copper disc 20,5x26x1

48600275

Unavailable

30

Adjustment tube 6x371

48600269

Unavailable

31

Piston rod 12x405

48600464

Unavailable

32

Lock nut M12x1 h23 WAF17

48600459

Unavailable

33

Needle 4,5x43,6

48600277

Unavailable

34

O-ring 2x1,5 NBR70

48600298

Unavailable

35

Spring (5,4) 4-23 rebound

48600444

Unavailable

38

SPRING 4,8N/MM SET D=5,25 MM

91410020S

Unavailable

38

SPRING 5,0 N/MM

91410030S

Unavailable

39

Washer 35x43x2,5 plastic

48600456

Unavailable

39

Preload bush 35x43x3,5

48600457

Unavailable

39

Washer 35x43x1,5 plastic

48600458

Unavailable

40

Spring retainer 12,3x19x1,25 r

48600525

Unavailable

42

Spring support ring 27,08x42x4

48600520

Unavailable

43

O-ring 6x1,2 NBR70

48600299

Unavailable

44

Spring (13,9) 37-32 rebound

48600578

Unavailable

45

Tap 6x46 rebound

48600576

Unavailable

47

Spring (11,4) 0,4-8 valve

48600382

Unavailable

48

MEMBRANE HOLDER INKL.PIN SET

48600519S2

Unavailable

49

Round-wire snap ring 28,5x1,5

48600512

Unavailable

50

HS countersunk head screw M4x6

48600542

Unavailable

51

O-ring 21x2 NBR70

46811499

Unavailable

52

Piston 6x27,8x9 compression

48600047

Unavailable

53

O-ring 4x1,5 NBR70

50180222

Unavailable

54

PIN KIT

48600977S

Unavailable

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

Unavailable

56

GUIDE RING 44,2 X39,3

48600294

Unavailable

57

Spring guide ring 27,08x32x9,5

48600577

Unavailable

59

O-ring 46x2 NBR70 siliconized

48600048

Unavailable

60

AXLE-CL. MA DISC BR+INNERT. 07

48600675S1

Unavailable

61

AXLE-CL. MA RI+INNERT. CPL. 07

48600676S1

Unavailable

62

HH collar screw M8x25

0025080256

Unavailable

63

Nut valve M6x0,5 h6,5 WAF17

48600163

Unavailable

64

Spring (8,5) l6,5 valve

48600202

Unavailable

69

Tap 6x38 compression

48600509

Unavailable

71

Piston 6,07x22,7x13

48600575

Unavailable

72

Piston ring 21x23x5

48600455

Unavailable

74

RING D=23,45X2,65

48600296

Unavailable

75

PISTON ROD SEALING

48600471

Unavailable

76

SCREW SLEEVE M24,5X1 CPL.

48600546S

Unavailable

77

Guide bushing 12x14x10

48600430

Unavailable

78

CHECK VALVE STOP

48600297

Unavailable

79

Round-wire snap ring 24x2

48600446

Unavailable

81

Silicon plug 60Sh

15080017

Unavailable

83

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

84

O-ring 43x2 NBR70 siliconized

40140024

Unavailable

85

screw cap M41x1 cmpl.

48600516S1

Unavailable

87

Cross flat head screw M4x10

48600526

Unavailable

88

Clamping ring bladder 11,31x22

48600514

Unavailable

98

SILICONE GREASE F. DUST STRI

T511

Unavailable

99

REPAIR-KIT GASKET 48MM 0

R14014

Unavailable
