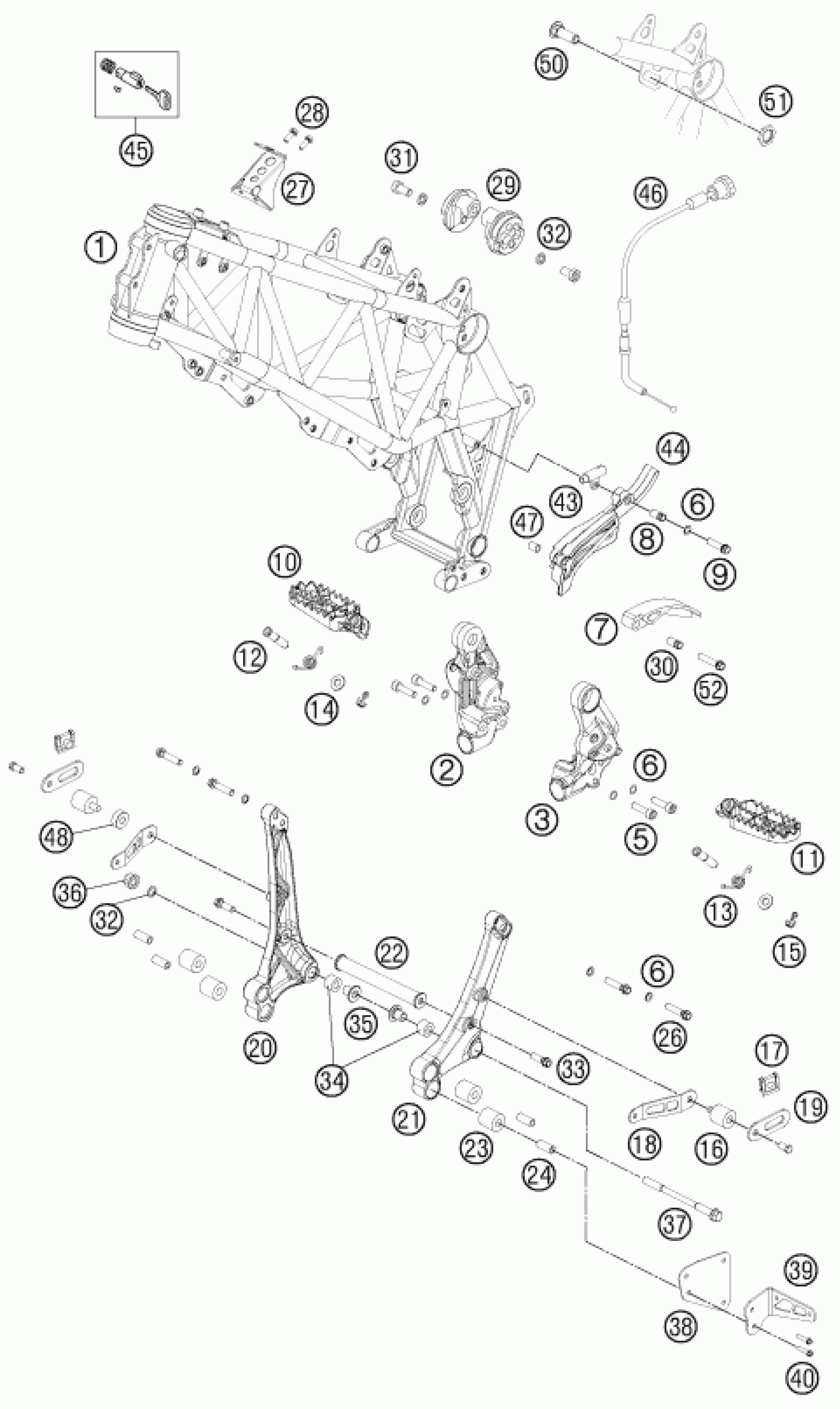

KTM 450 RALLY FACTORY REPLICA 2014 FRAME Diagram

#

Description
Price

1

FRAME 450 RALLY 2011

7630300100090

Unavailable

2

FOOTREST BRACKET RIGHT 07

76203039000

Unavailable

3

FOOTREST BRACKET LEFT 07

76203038000

Unavailable

48

BUSHING TANK RIGHT

76303005041

Unavailable

50

FIXING SCREW TANK REAR

58512068100

Unavailable

51

NUT F.TANK BRAKET REAR

60512063050

Unavailable

52

HH collar screw M8x45 TX40

0025080456

Unavailable

5

AH SCREW DIN0912-M 8X30

0912080303

Unavailable

6

LOCK WASHER 8MM

36003014000

Unavailable

7

CHAIN SLIDING PART 11

76304066000

Unavailable

8

BUSHING 8,2X10X20

51103053051

Unavailable

9

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

10

FOOTREST RIGHT RALLY 07

76203041250

Unavailable

11

FOOTREST LEFT RALLY 07

76203040250

Unavailable

12

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

13

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

14

washer DIN 125 A 10.5

0125100003

Unavailable

15

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

16

RUBBER GROMMET 30X20-M8X20

76305062000

Unavailable

17

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

18

RADIATOR STRUT

76203005030

Unavailable

19

FUEL TANK SUPPORT PLATE

76203002420

Unavailable

20

ENGINE SUPPORT RIGHT 11

76303006000

Unavailable

21

ENGINE SUPPORT LEFT 11

76303005000

Unavailable

22

CROSS MEMBER CPL. 08

76203005040

Unavailable

23

RUBBER INSERT

76203005031

Unavailable

24

BUSH ENGINE SUPPORT

76203005050

Unavailable

26

HH collar screw M8x35 TX40

0025080356

Unavailable

27

JOINT PLATE SEAT 07

76203001066

Unavailable

28

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

29

ADAPTER MONOSHOCK ANCHOR BOLT

76203001072

Unavailable

30

BUSHING

76304266001

Unavailable

31

AH SCREW DIN0912-M10X16

0912100163

Unavailable

32

PAIR OF WASHERS M10 NORDLOCK

50233041100

Unavailable

33

HH collar screw M8x20

0025080206

Unavailable

34

ELASTOMER BEARING

76203018000

Unavailable

35

COLLAR BUSH FOR ELAST.BEARING

76203019000

Unavailable

36

COLLAR NUT M10 WS=13

54630044000

Unavailable

37

AH SCREW DIN 912 M10X150 10.9

0912101503

Unavailable

38

BRACKET OILFILTER

76303001089

Unavailable

39

FIXING PLATE VOLT. REGULATOR

76303001073

Unavailable

40

HH collar screw M6x40 TX30

0025060406

Unavailable

43

SLEEVE FOR CHOKE CABLE

76202095051

Unavailable

44

CHAIN SPROCKET COVER

76303096000

Unavailable

45

STEERING HEAD LOCK CPL. ZADI

71003007000

Unavailable

46

CHOKE-CABLE l = 235 07

76202095000

Unavailable

47

SPACER BUSHING CHAIN GUARD

76330047005

Unavailable
