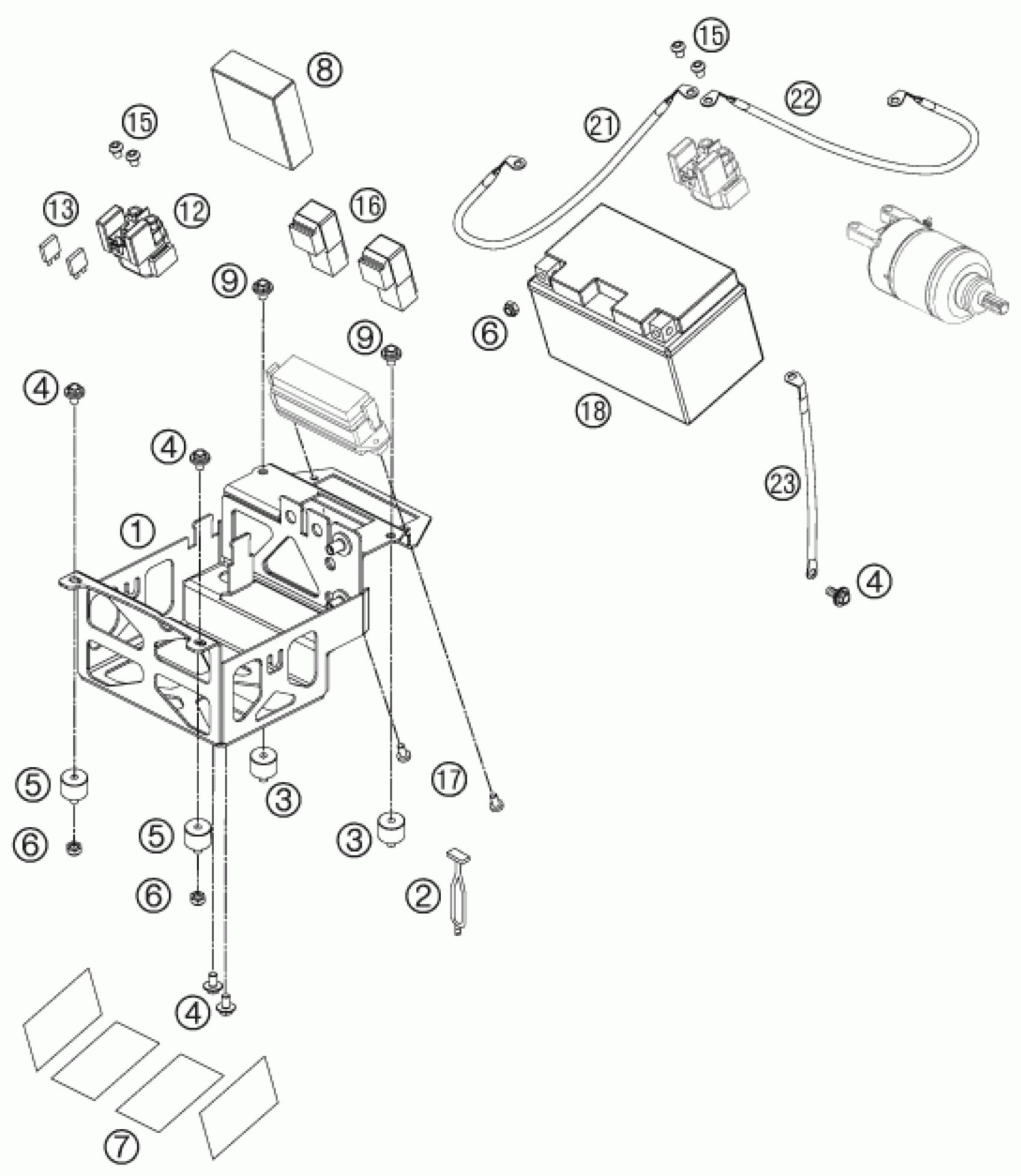

KTM 450 RALLY FACTORY REPLICA 2014 BATTERY Diagram

#

Description
Price

1

BATTERY BOX

76311054000

Unavailable

2

RUBBER L=145MM

50303018000

Unavailable

3

RUBBER GROMMET 15X15-M5X8

76311056000

Unavailable

4

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

5

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

6

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

7

METAMOLL 90X45X3MM 03

59003001099

Unavailable

8

CDI UNIT KOKUSAN 450 RALLY 11

76339031000

Unavailable

9

HH collar screw M5x10 TX30

0025050106

Unavailable

12

Starter relay

76211058000

Unavailable

13

Plug-in fuse, big 30A

58011109130

Unavailable

15

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

16

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

18

BATTERY 12V 4AH SXS-F

77311053200

Unavailable

21

BATTERY CABLE

76311086000

Unavailable

22

STARTER CABLE

76311059000

Unavailable

23

GROUND CABLE

76311097000

Unavailable

17

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable
