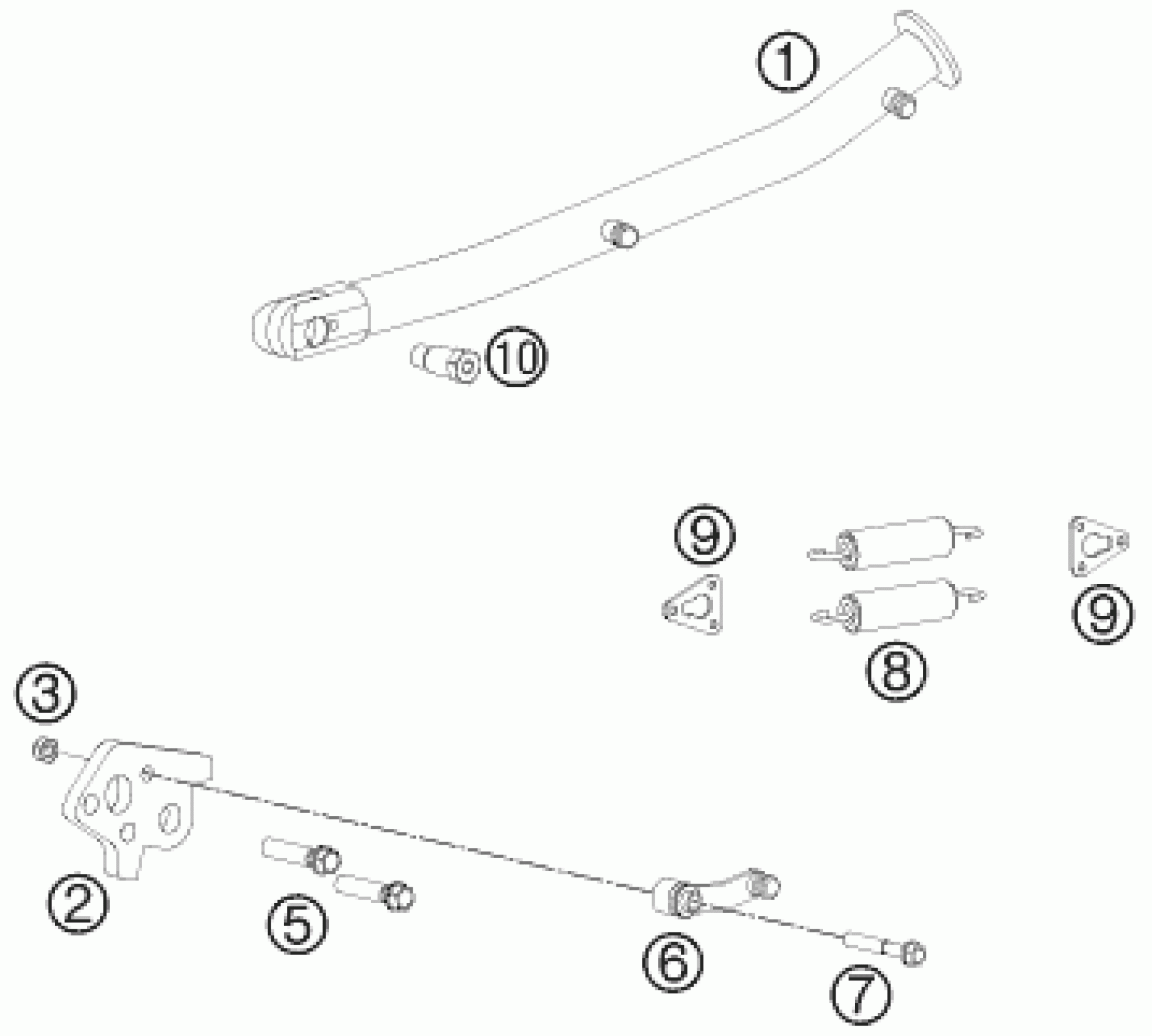

KTM 450 RALLY FACTORY REPLICA <2011> SIDE / CENTER STAND Diagram

#

Description

Price

1

SIDE STAND PIPE CPL. 07

76203023000

Unavailable

2

SIDE STAND BRACKET 07

76203026044

Unavailable

3

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

5

HH collar screw M8x25

0025080256

Unavailable

6

PLATE SIDE STAND MECH. CPL.

76203080044

Unavailable

7

HH collar screw M6x40 TX30

0025060406

Unavailable

8

SPRING FOR SIDE STAND 03

60003024000

Unavailable

9

SUPPORT SIDE STAND SPRING 03

60003028003

Unavailable

10

SCREW FOR SIDE STAND M10X26,7

58203027200

Unavailable
