Partiron

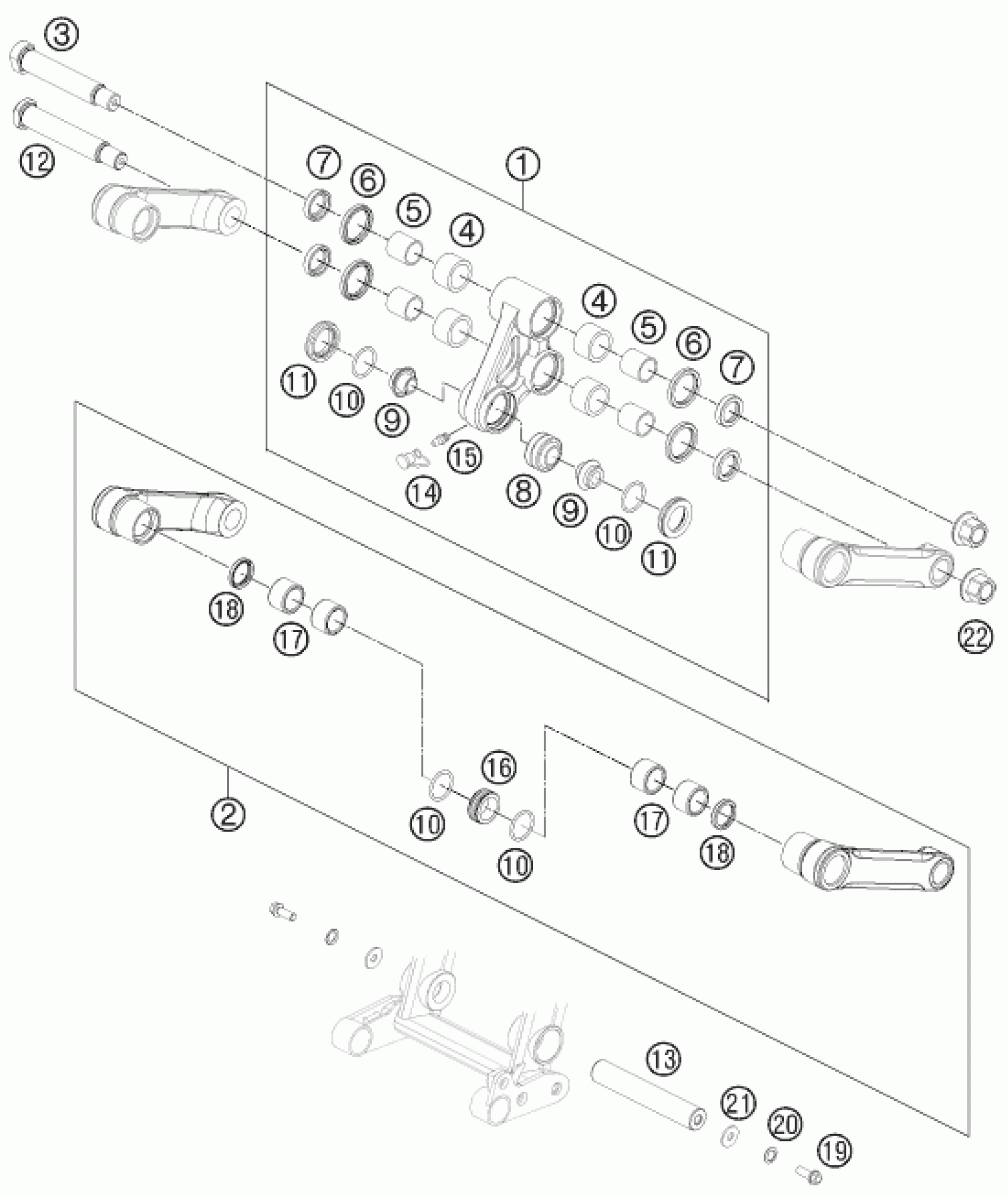

KTM 450 RALLY FACTORY REPLICA <2011> PRO LEVER LINKING Diagram

#

Description
Price

17

NEEDLE BEARING HK 1816

56503195100

Unavailable

18

SHAFT SEAL RING 18X24X4

0760182442

Unavailable

19

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

20

LOCK WASHER 8MM

36003014000

Unavailable

21

WASHER DIN9021-A 8,4

0021080003

Unavailable

1

TRIANGLE LEVER CPL.

76203032044

Unavailable

2

PULL ROD CPL.

76203083044

Unavailable

3

BOLT FOR CANTILEVER 07

76203032010

Unavailable

4

Needle bushing HK 2016 / 20x26

54603097000

Unavailable

5

INNER RING INA 17/20/20 07

76203083060

Unavailable

6

SHAFT SEAL RING 25X32X4

0760253240

Unavailable

7

BUCKET FOR SHAFT SEAL RING 07

76203090000

Unavailable

8

SPHERICAL BEARING INA GE14BW

76203083050

Unavailable

9

COLLAR BUSHING 07

76203085000

Unavailable

10

O-RING 21,00X2,00 NBR70

0770021020

Unavailable

11

SUPPORT FOR SEAL RING

76203032020

Unavailable

12

BOLT FOR CANTILEVER PULL ROD

76203032015

Unavailable

13

PULL ROD ANCHOR BOLT

76203083010

Unavailable

14

CAP WITH LOOP RED

53003099000

Unavailable

15

GREASE FITTING M6 STRAIGHT

72003035000

Unavailable

16

SPACER RING

76203083005

Unavailable

22

Self locking nut M14x1.5 WS19

54603015000

Unavailable
